2x Image

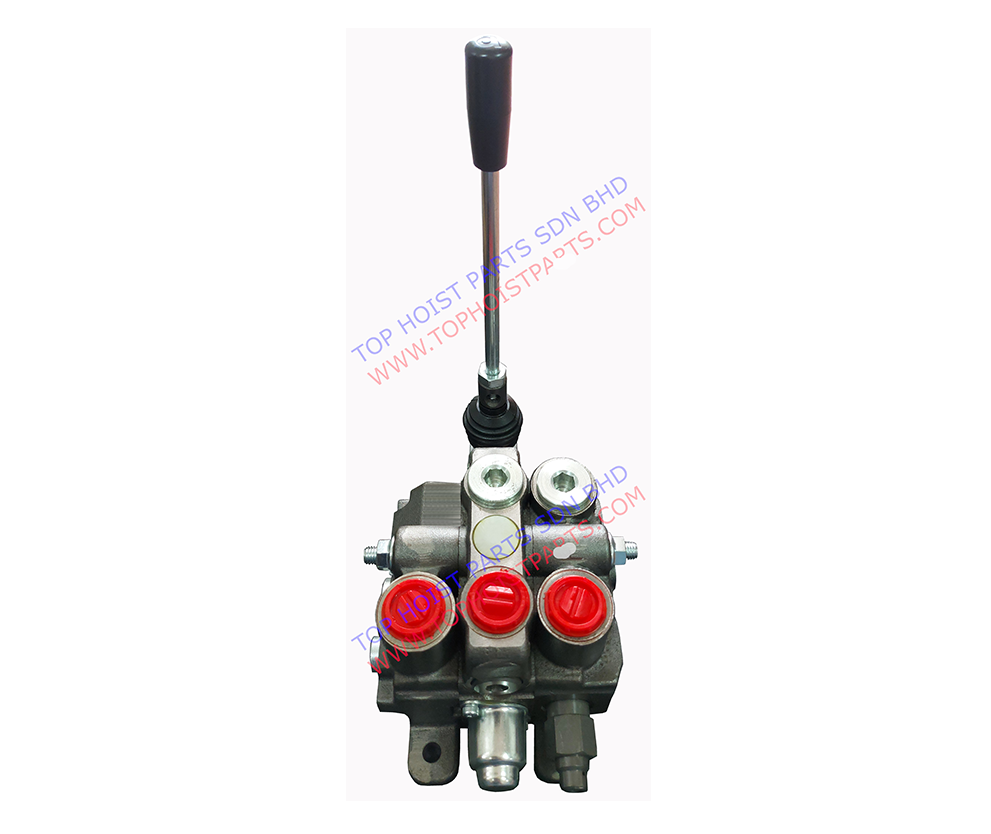

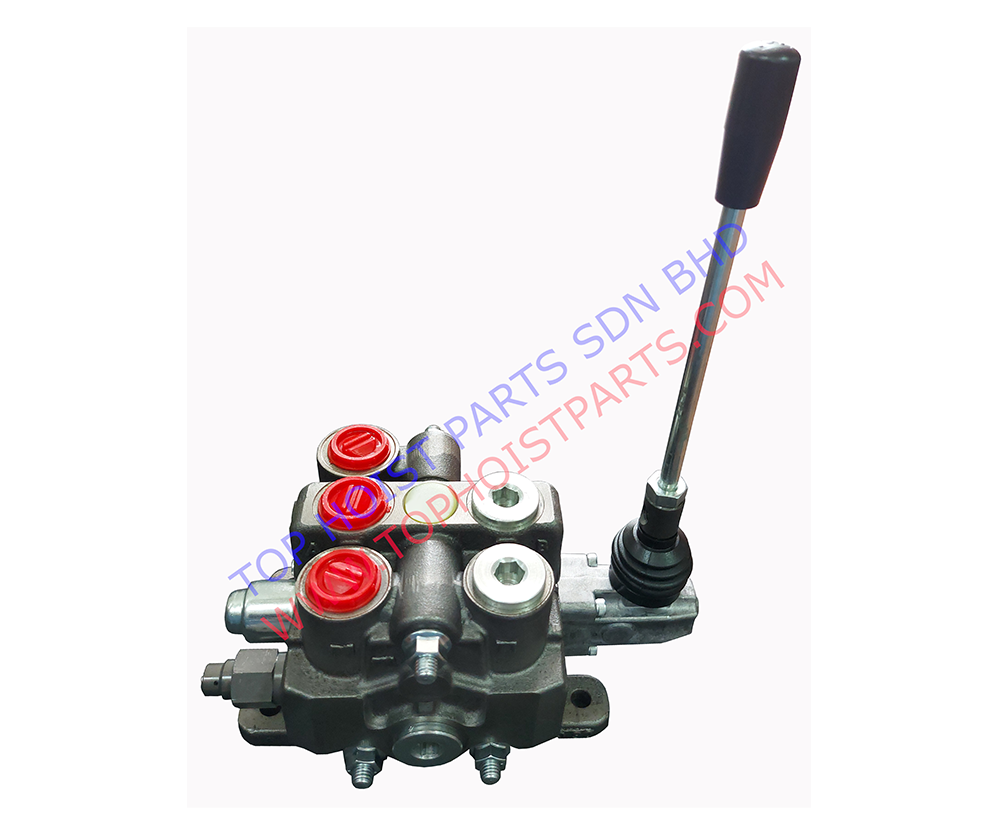

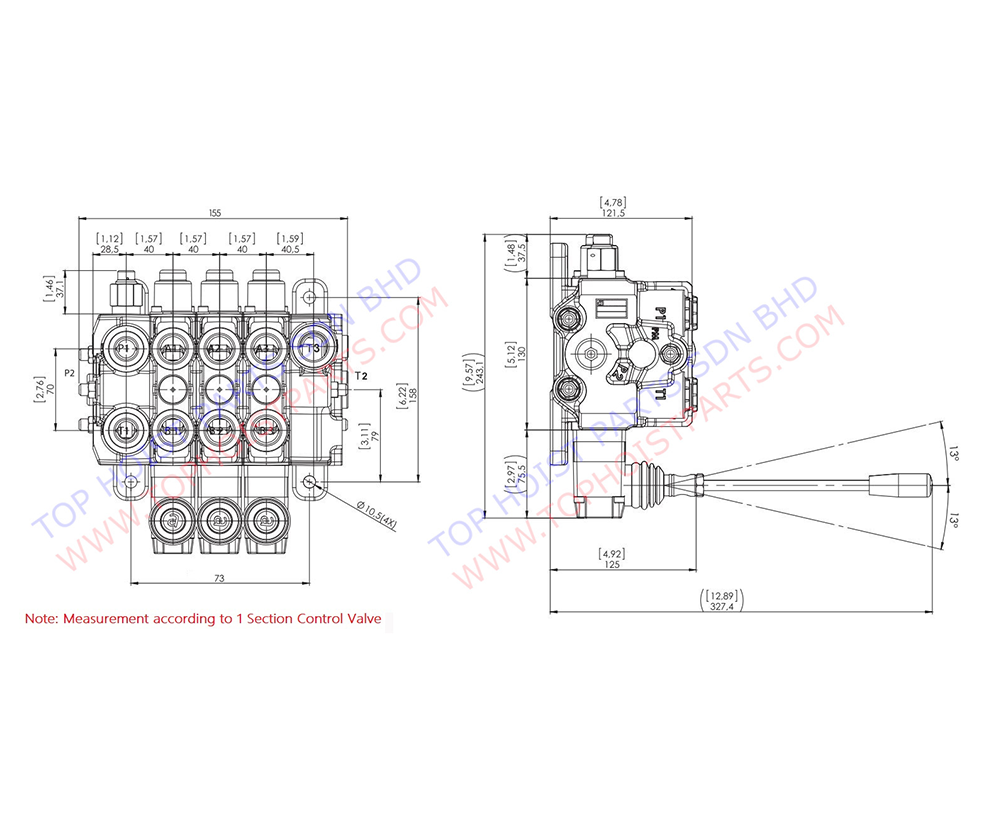

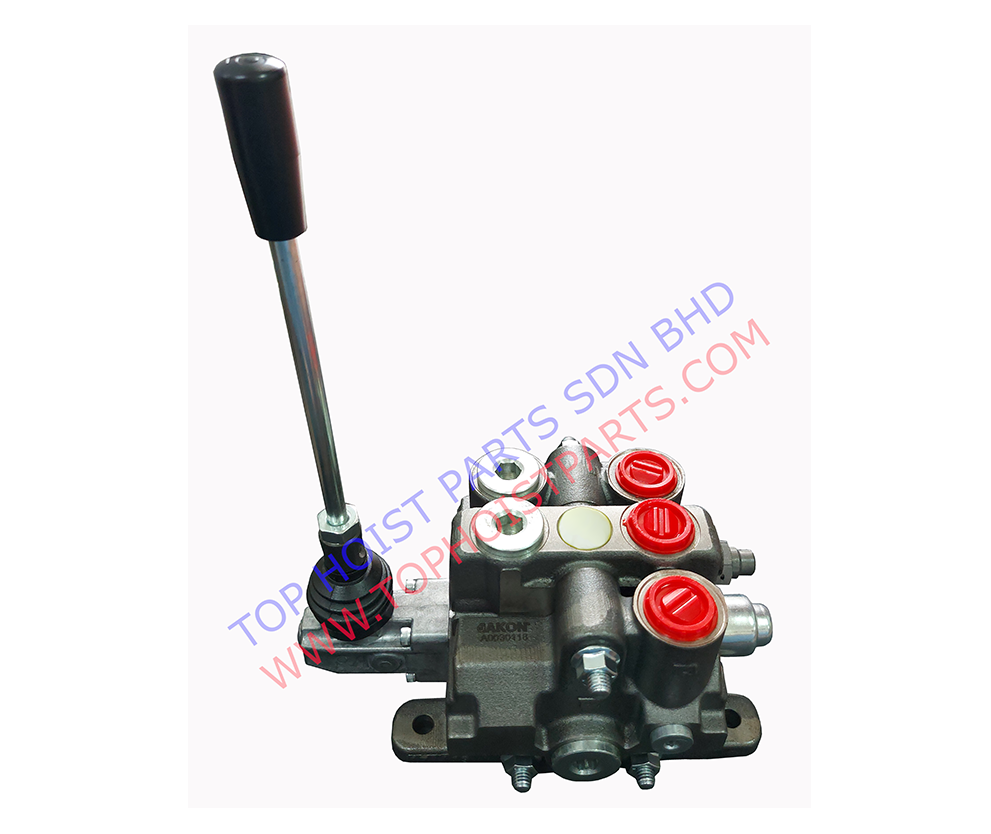

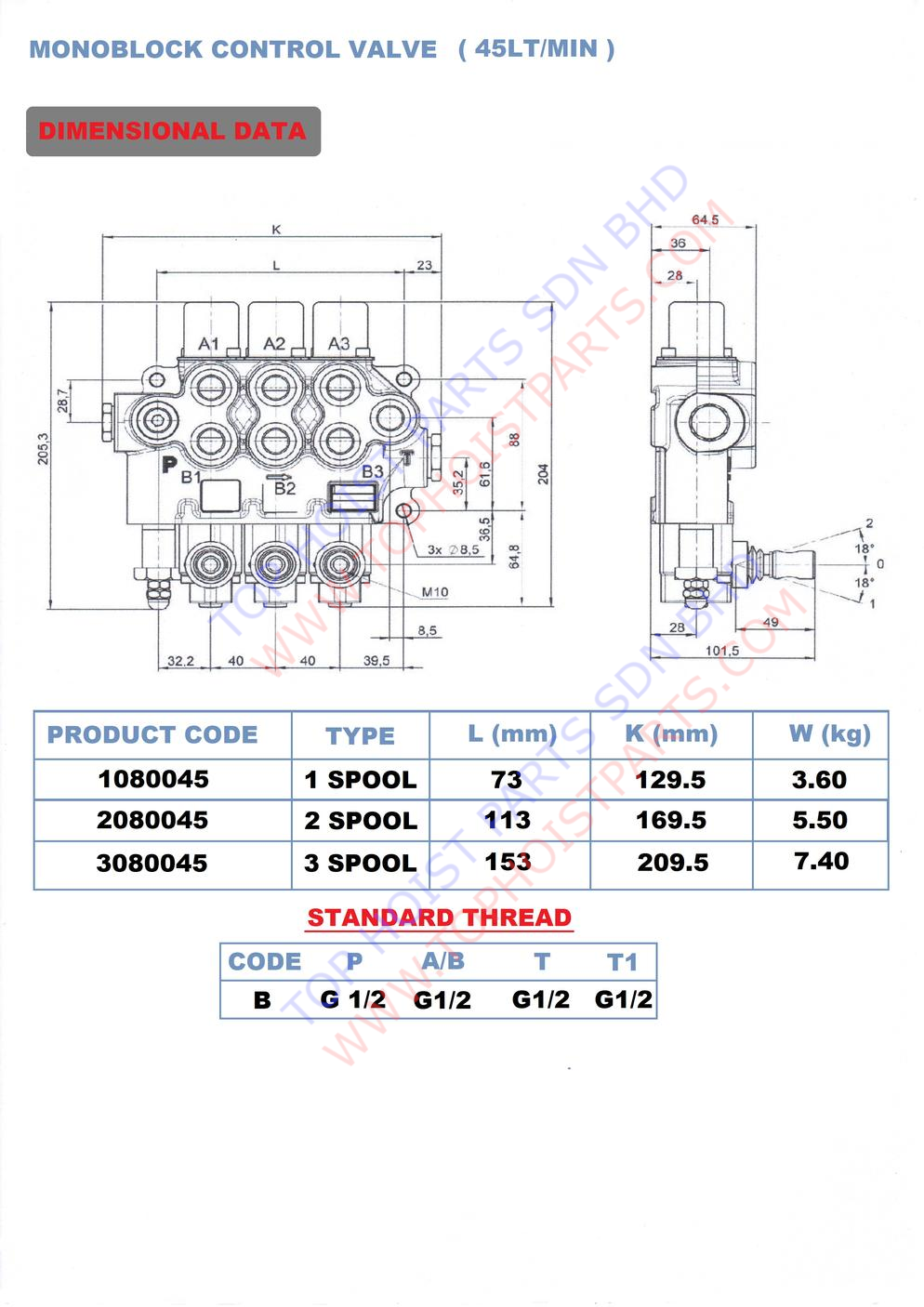

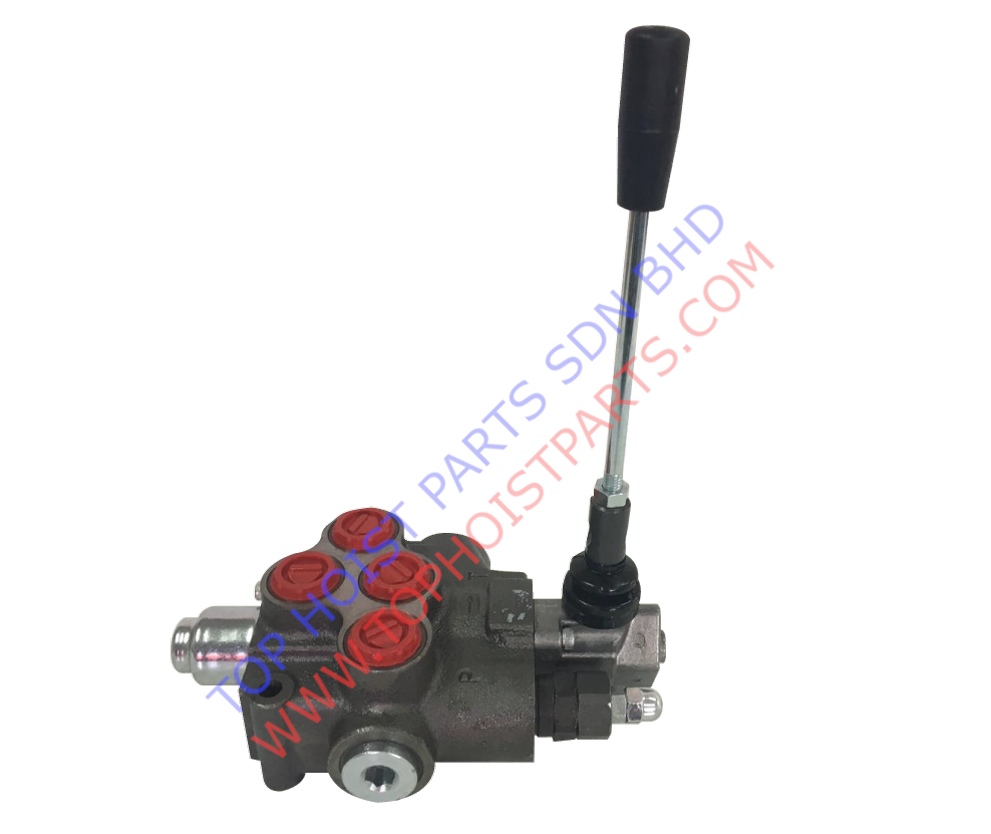

MONOBLOCK CONTROL VALVE (1 SPOOL) 45LTM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 1080045
MONOBLOCK CONTROL VALVE : 1 SPOOL
FLOW : 45LT/MIN
MAX.OPERATING PRESSURE : 350 BAR
MAX.BACK PRESSURE : 30 BAR
WEIGHT (KG) : 3.60
2x Image 2x Image

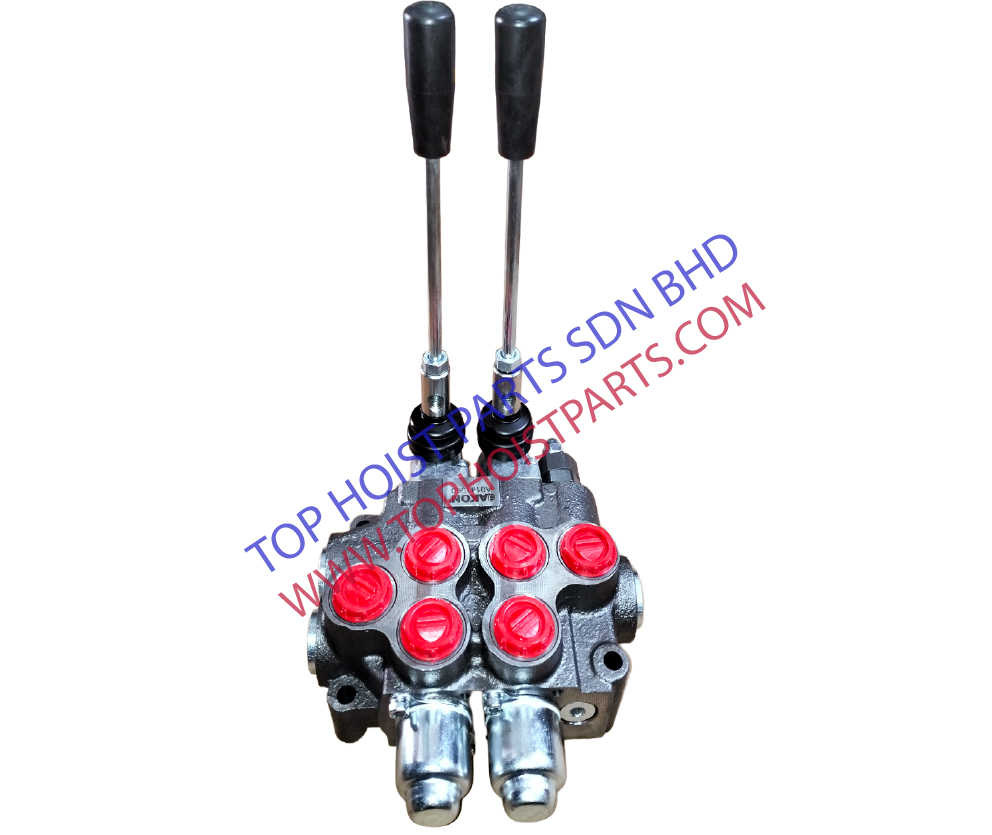

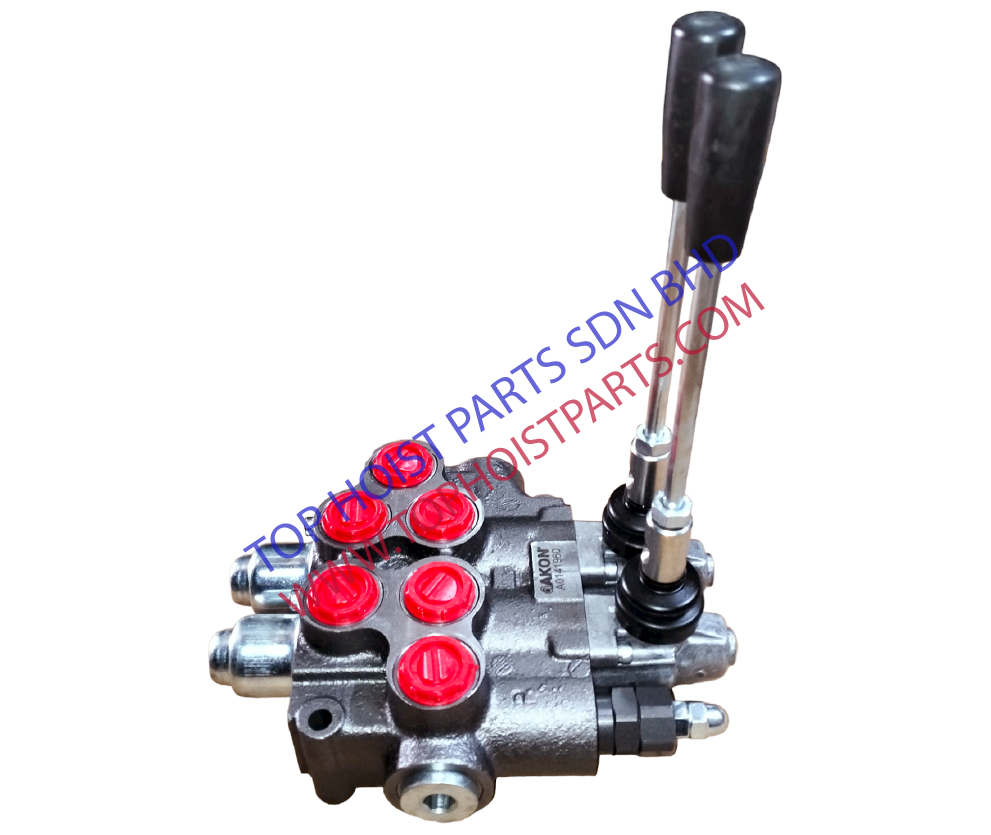

MONOBLOCK CONTROL VALVE (2 SPOOL) 45LTM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2080045
MONOBLOCK CONTROL VALVE : 2 SPOOL
FLOW RATE : 45LT/MIN
MAX.OPERATING PRESSURE : 350 BAR
MAX.BACK PRESSURE : 30 BAR
WEIGHT (KG) : 5.50
2x Image

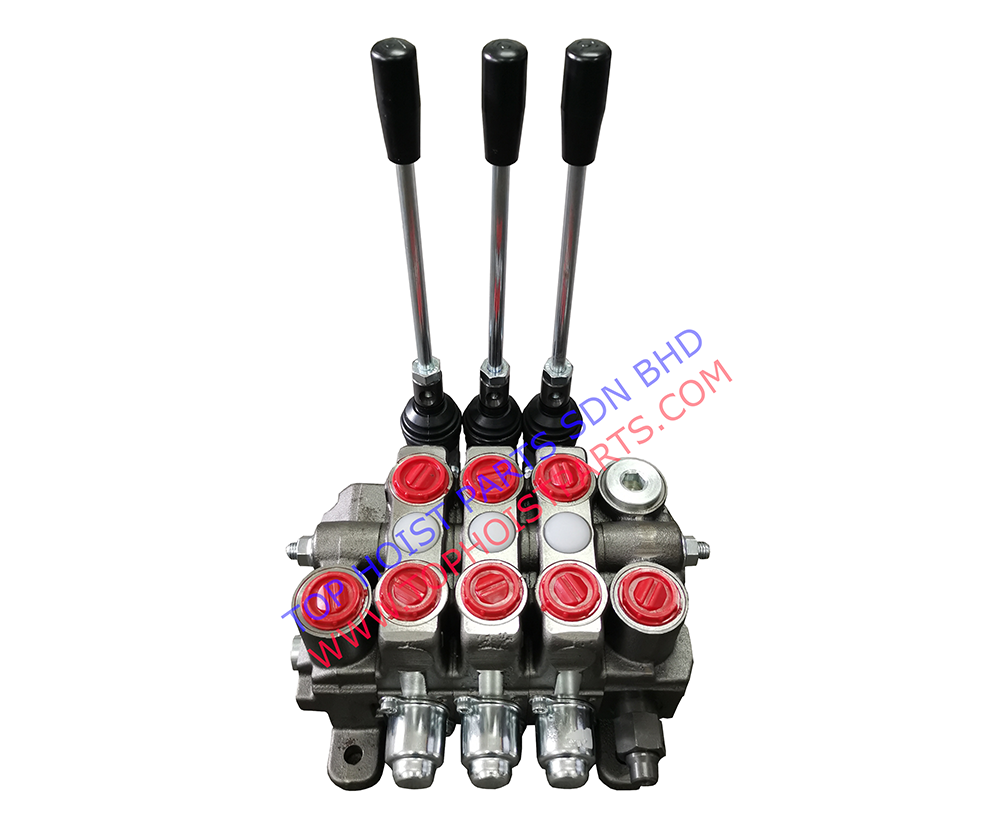

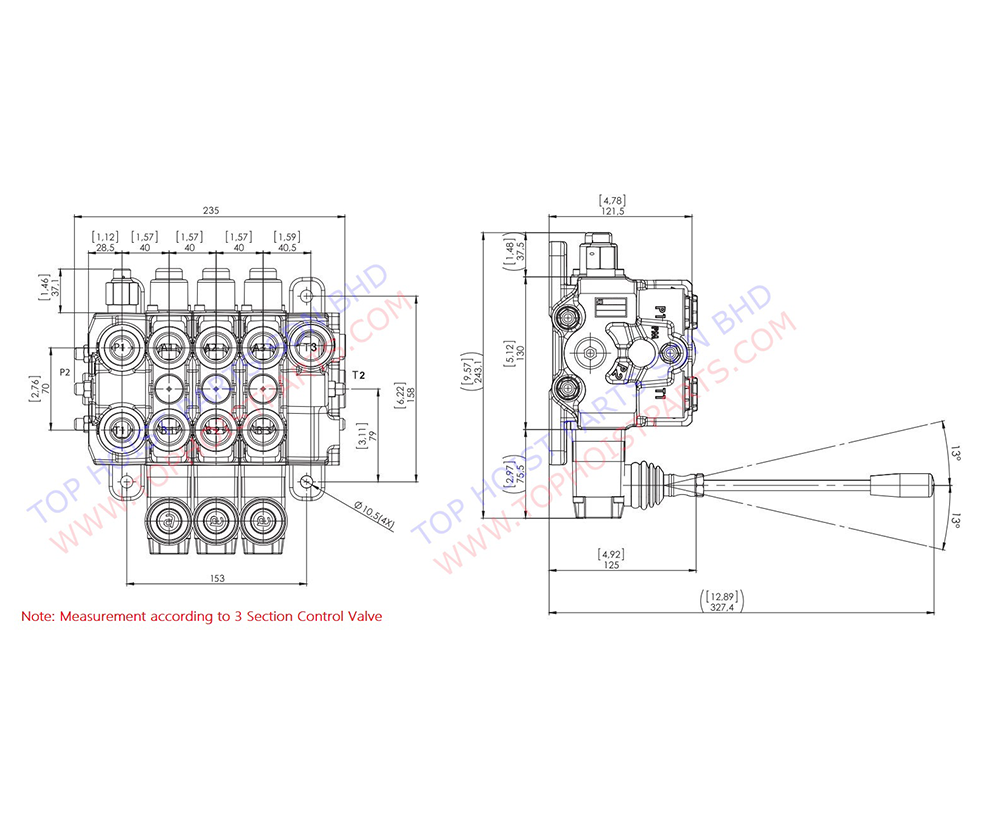

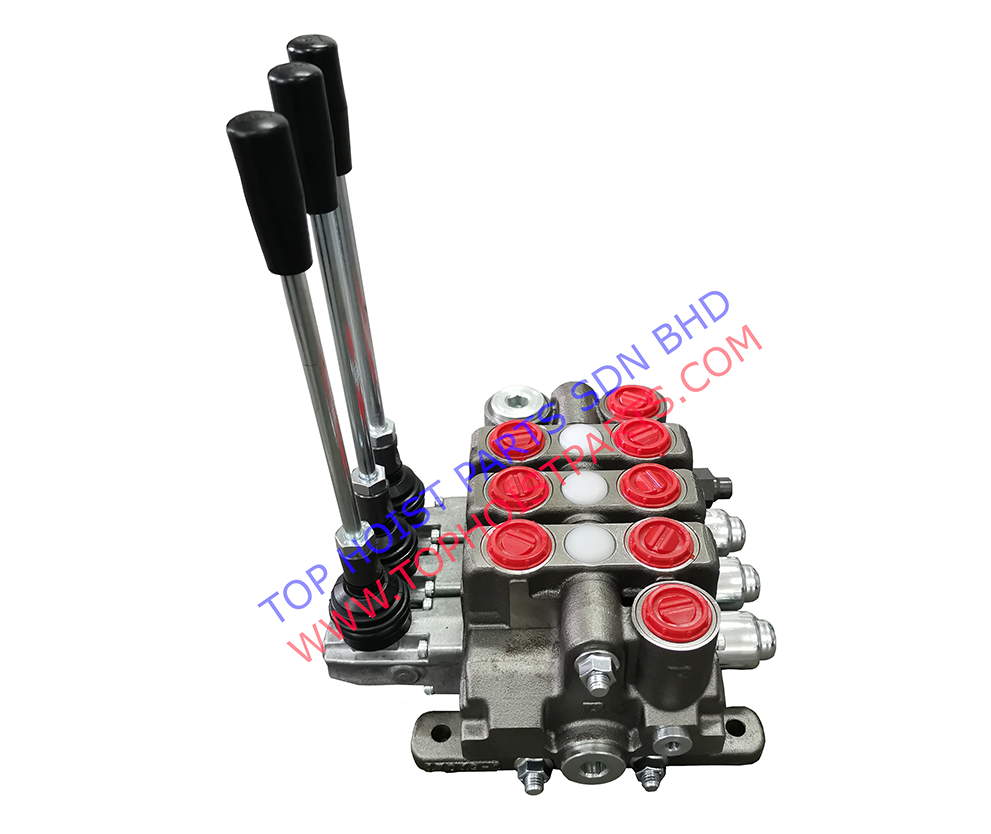

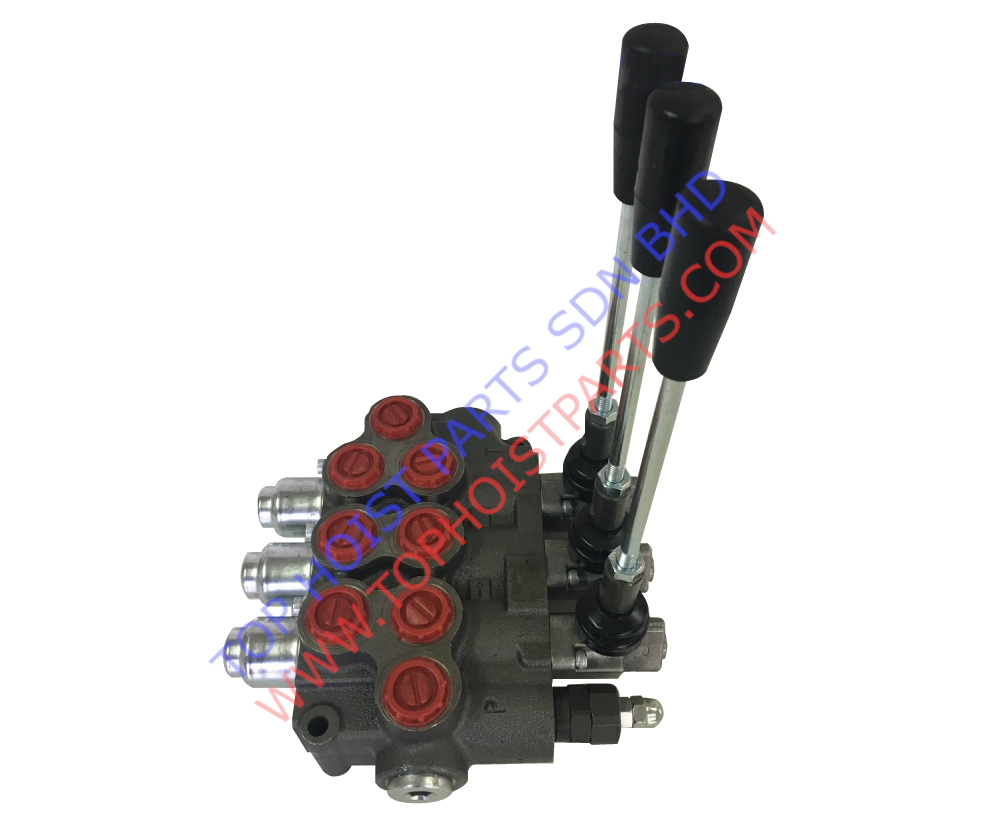

MONOBLOCK CONTROL VALVE (3 SPOOL) 45LTM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 3080045
MONOBLOCK CONTROL VALVE : 3 SPOOL
FLOW : 45LT/MIN
MAX.OPERATING PRESSURE : 350 BAR
MAX.BACK PRESSURE : 30 BAR
WEIGHT (KG) : 7.40
2x Image 2x Image

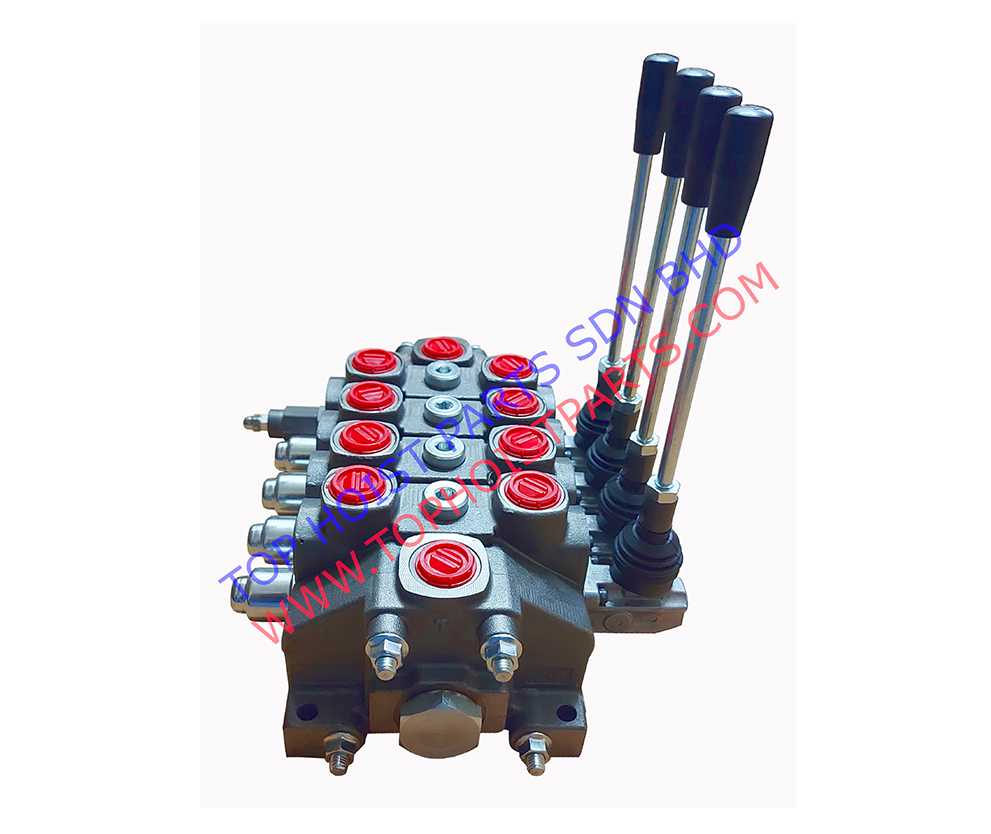

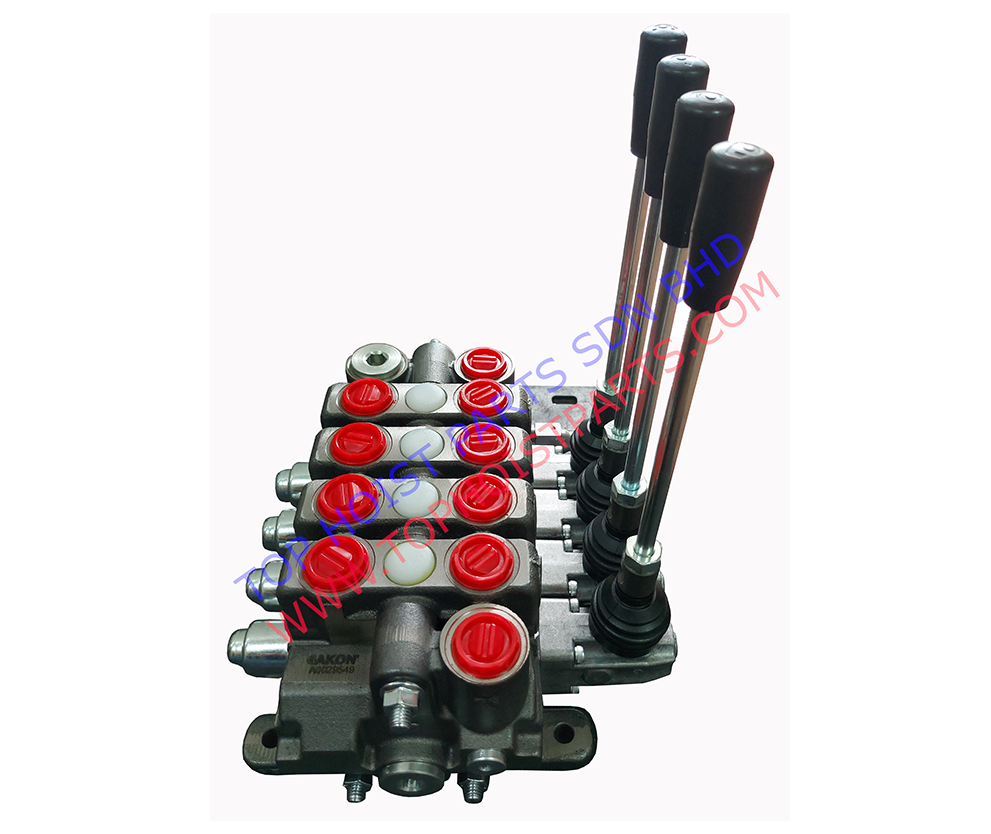

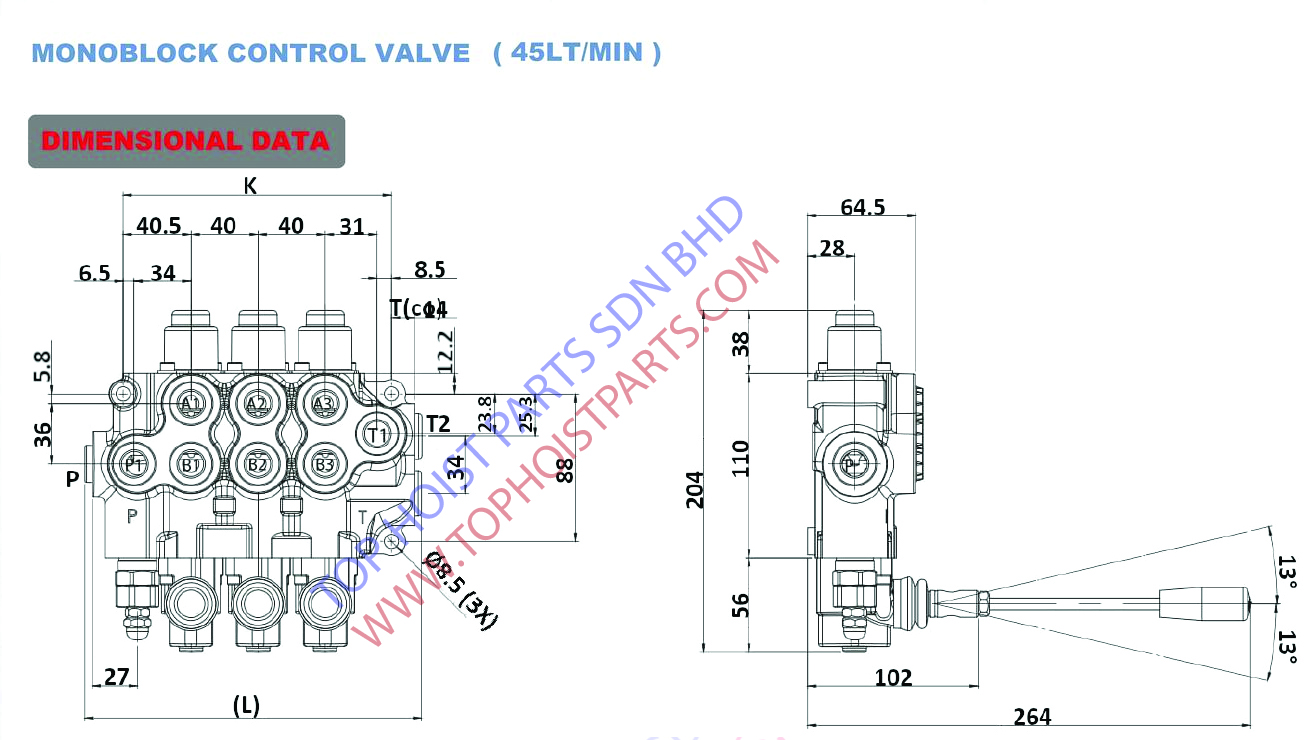

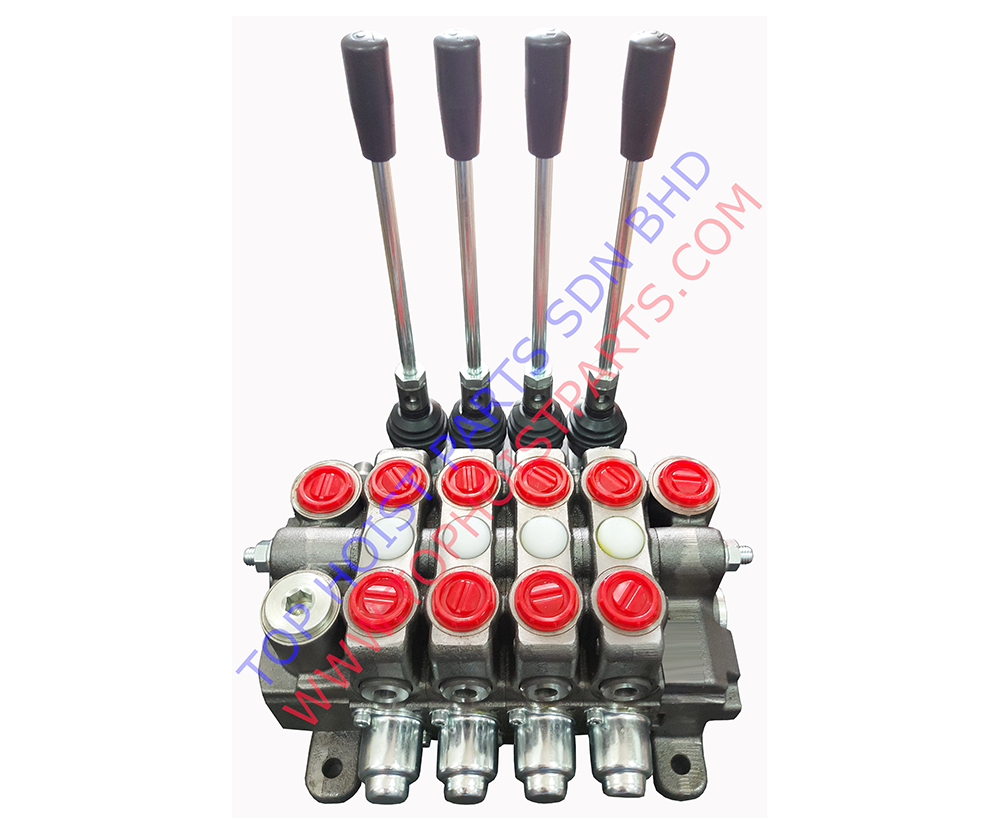

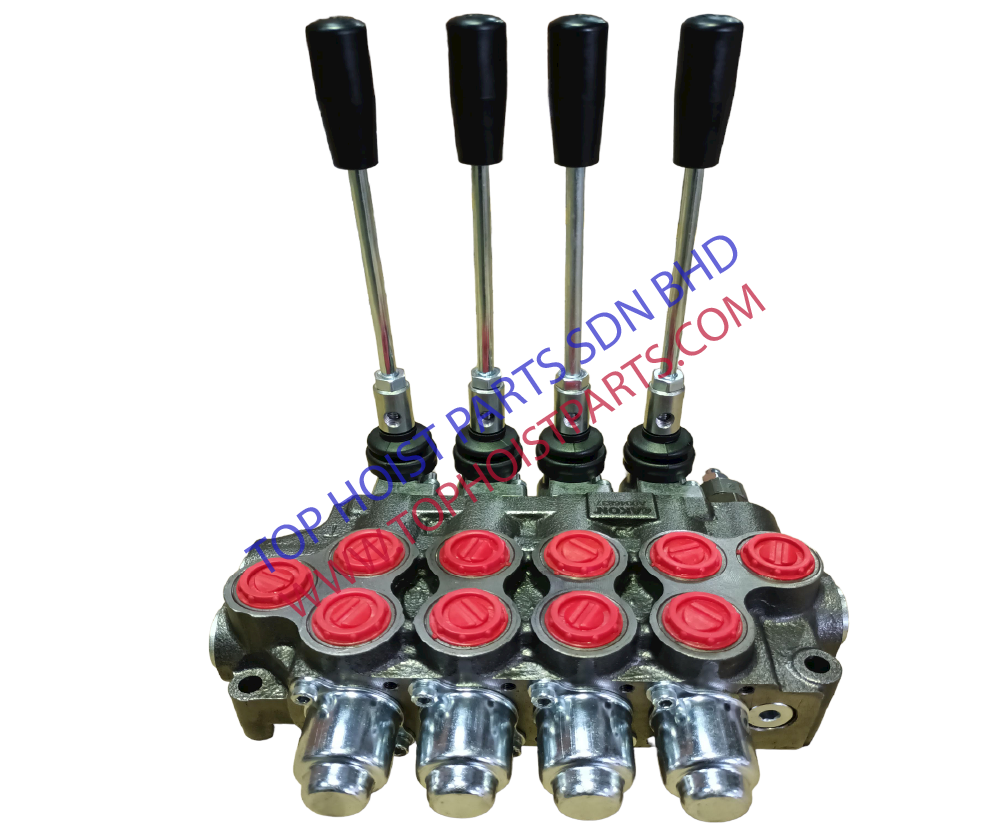

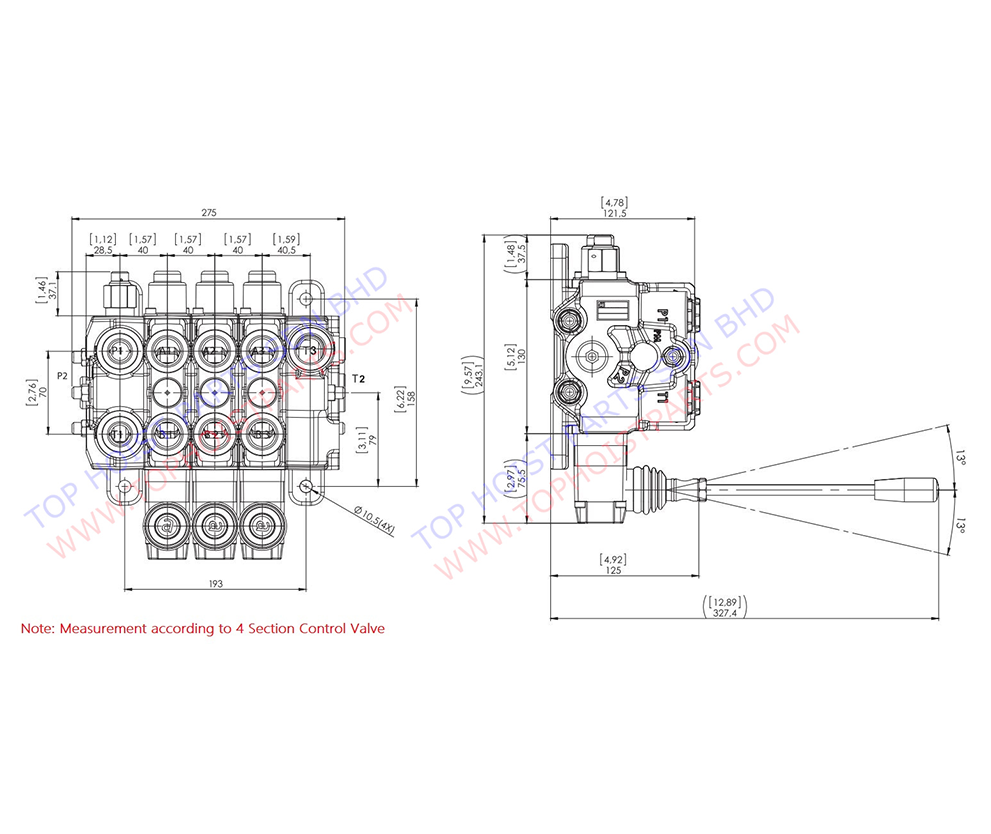

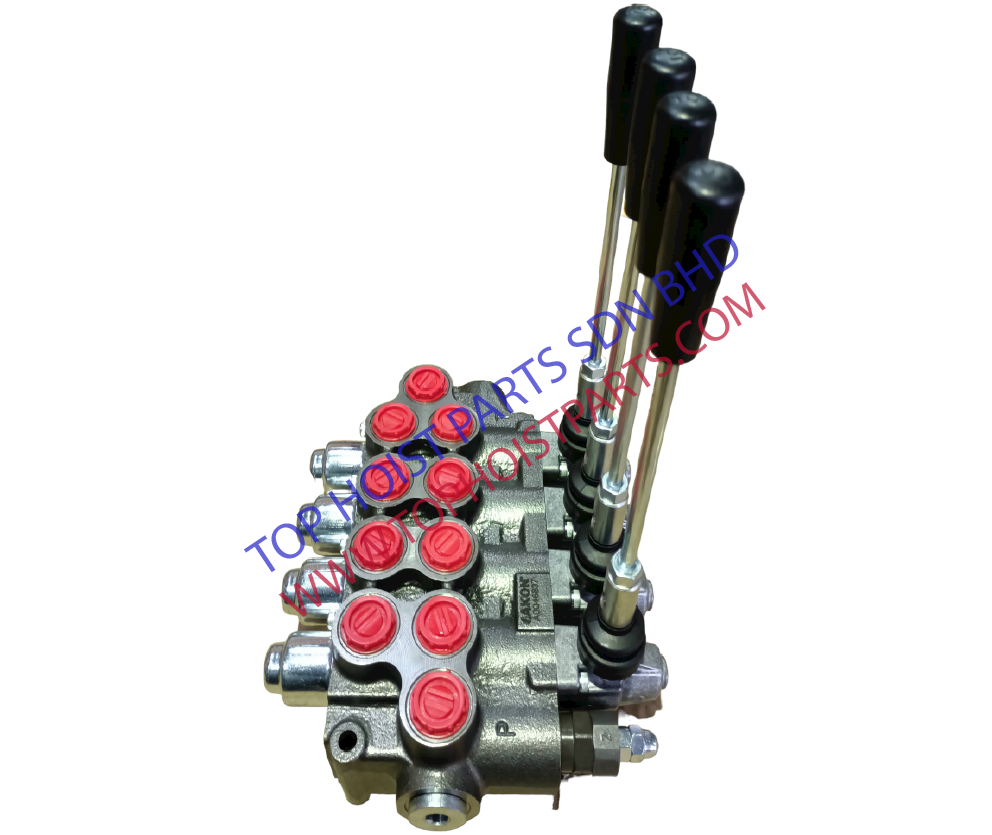

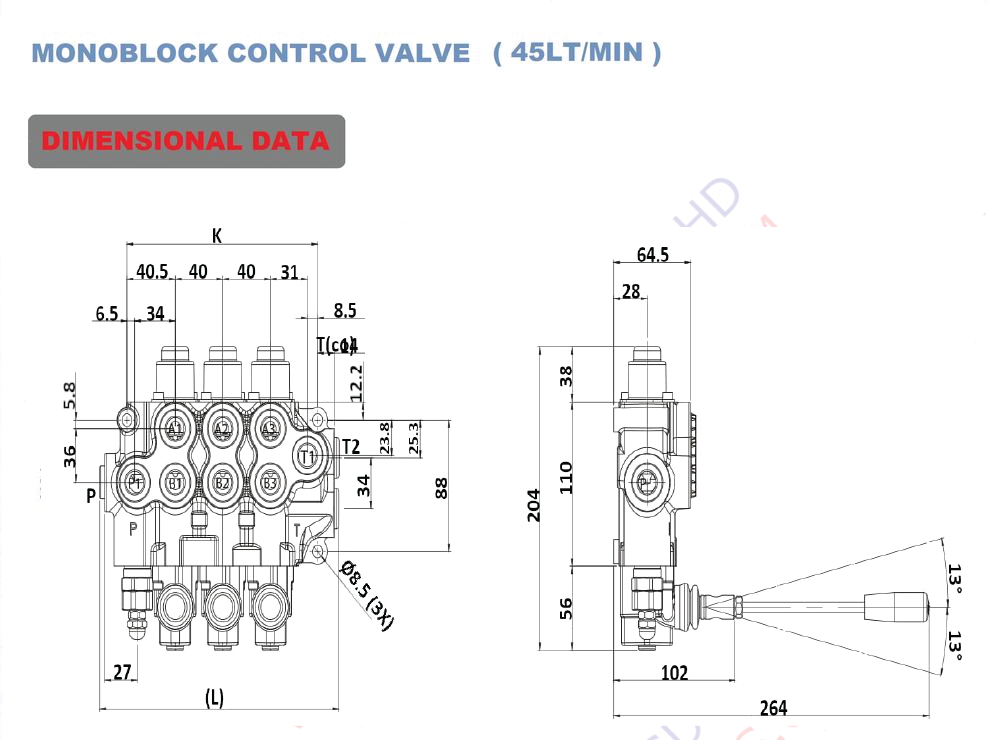

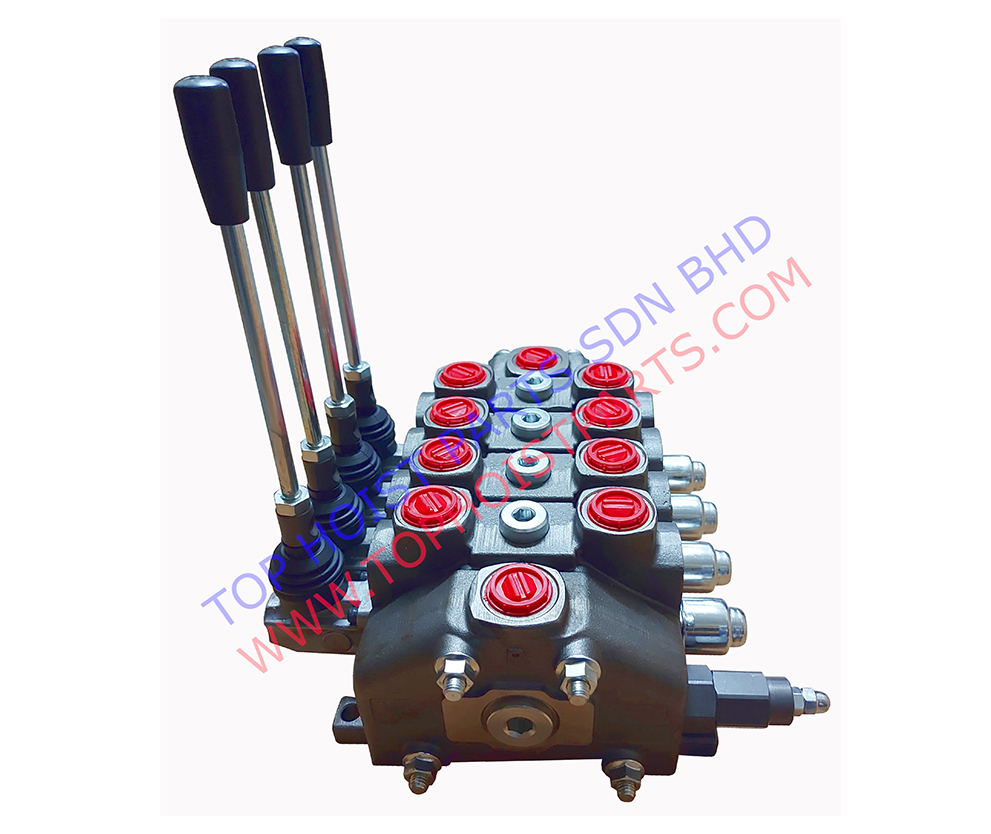

MONOBLOCK CONTROL VALVE (4 SPOOL) 45LTM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 4080045
FLOW/MIN: 45LT/MIN
K(MM): 200
L(MM): 241
MAX OPERATING PRESSURE: 350 BAR
MAX BACK PRESSURE: 30 BAR
WEIGHT (KG): 8.60
2x Image 2x Image

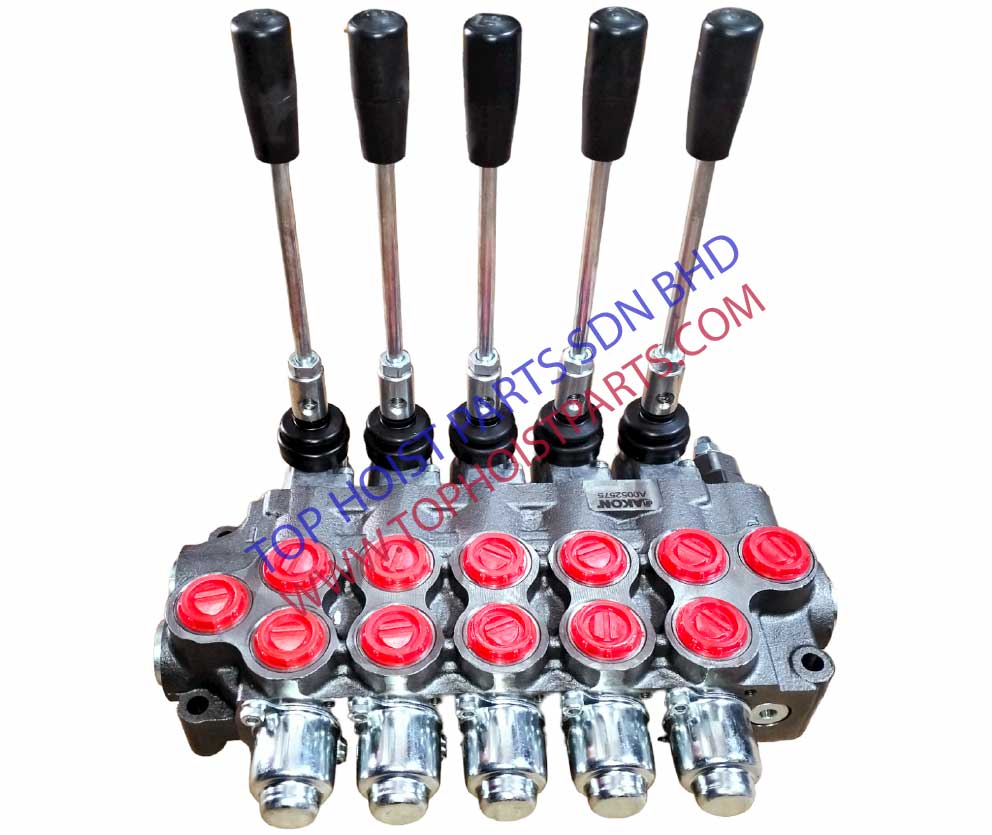

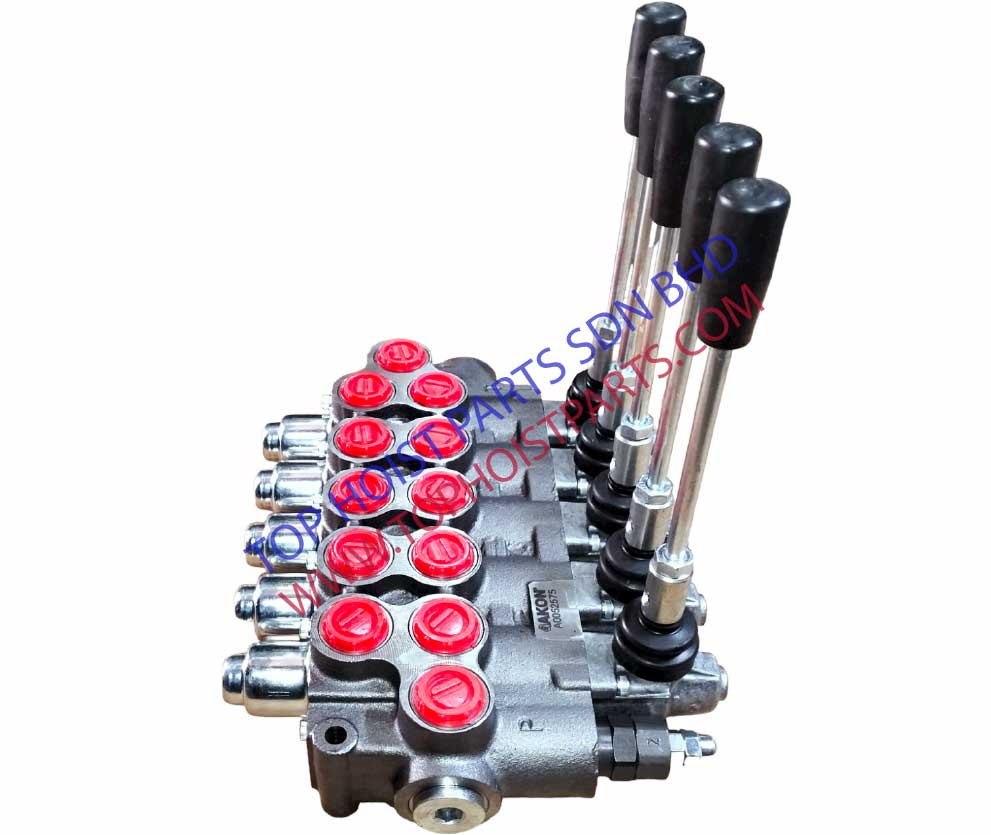

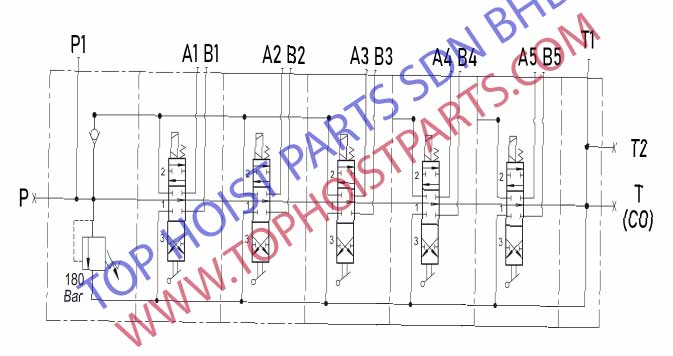

MONOBLOCK CONTROL VALVE (5 SPOOL) 45LTM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 5080045
FLOW/MIN: 45LT/MIN
K(MM): 240
L(MM): 281
MAX OPERATING PRESSURE: 350 BAR
MAX BACK PRESSURE: 30 BAR
WEIGHT (KG): 10.65
2x Image 2x Image

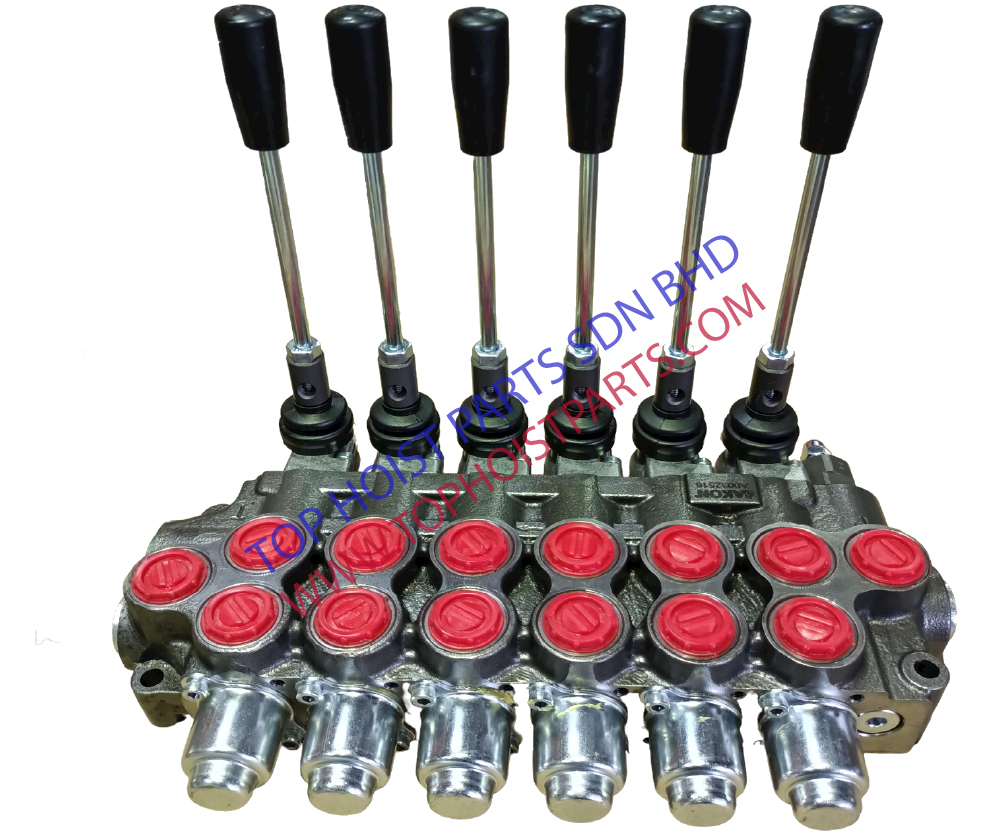

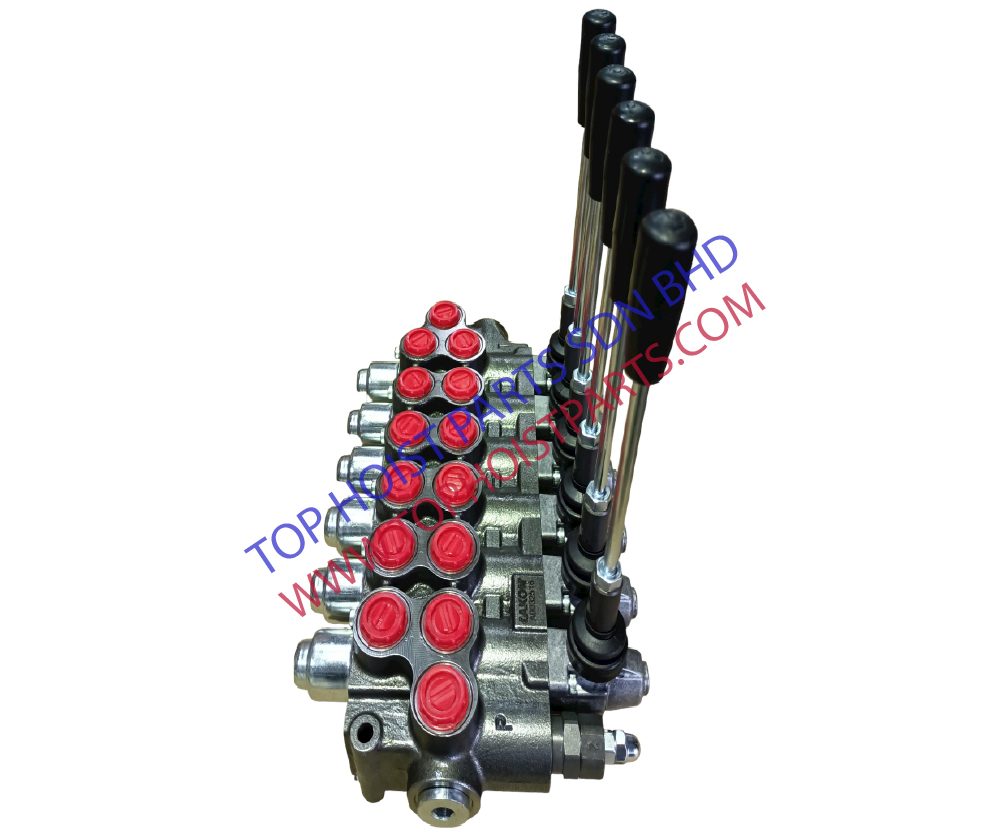

MONOBLOCK CONTROL VALVE (6 SPOOL) 45LTM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 6080045
FLOW/MIN: 45LT/MIN
K(MM): 280
L(MM): 321
MAX OPERATING PRESSURE: 350 BAR
MAX BACK PRESSURE: 30 BAR
WEIGHT (KG): 12.3

4x Image

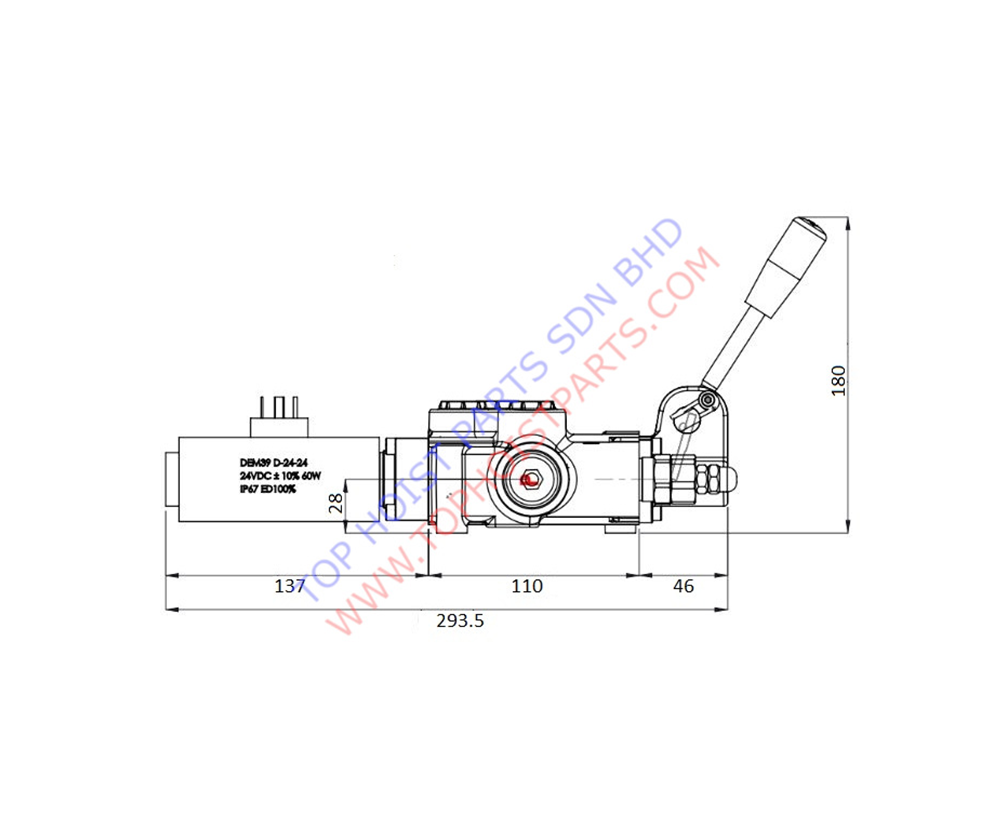

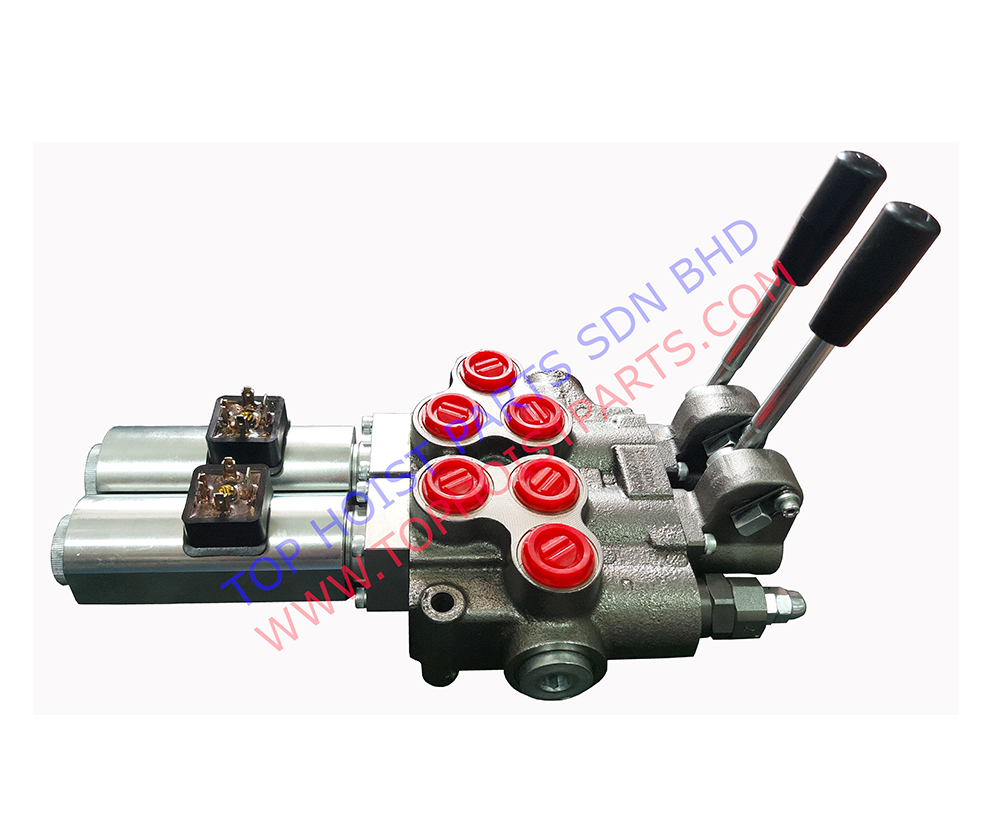

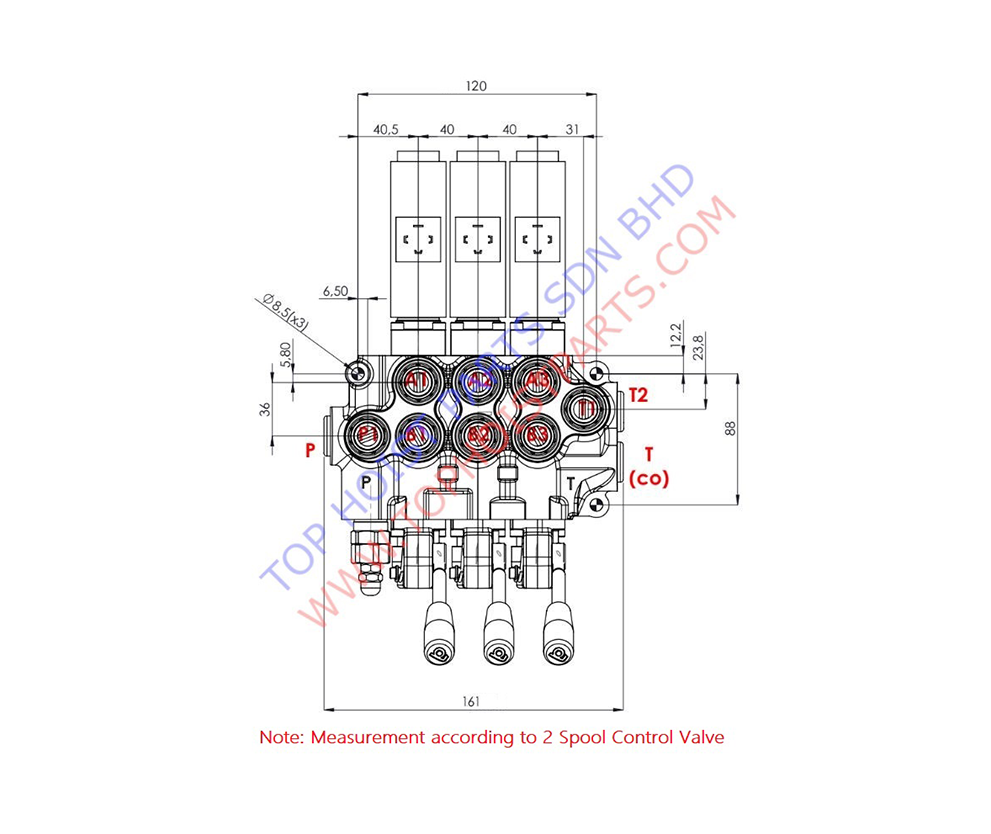

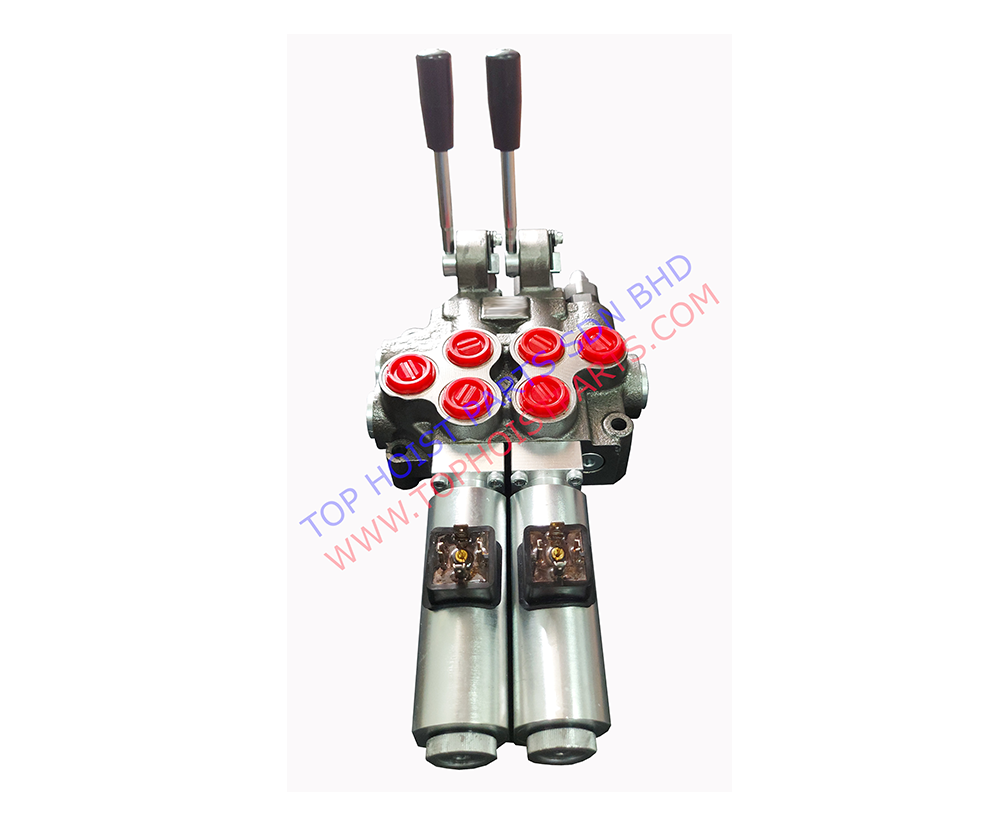

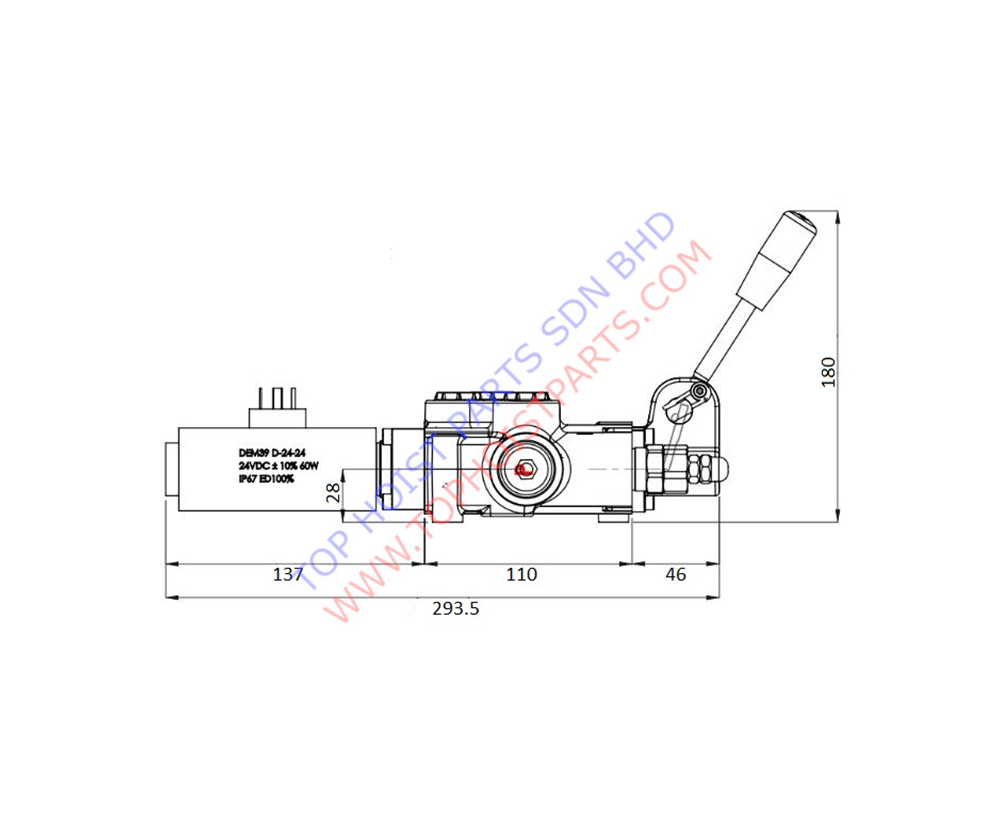

MONOBLOCK (DC24V) ELECTRIC CONTROL VALVE (2 SPOOL) - 50LTM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : DC20050
NO. OF SPOOL : 2
FLOW : 50LT/MIN
MAX OPERATING PRESSURE : 260 BAR
MAX BACK PRESSURE : 5 BAR
SUPPLY VOLTAGE : 24VDC
WEIGHT (KG) : 6.6
4x Image

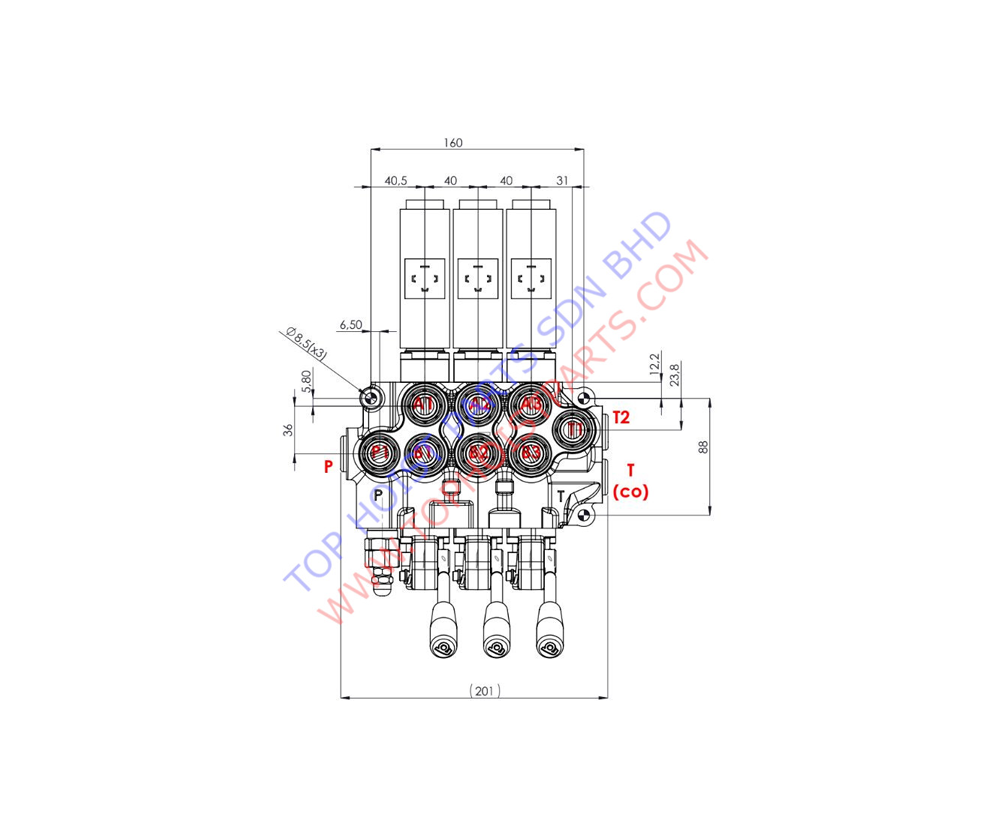

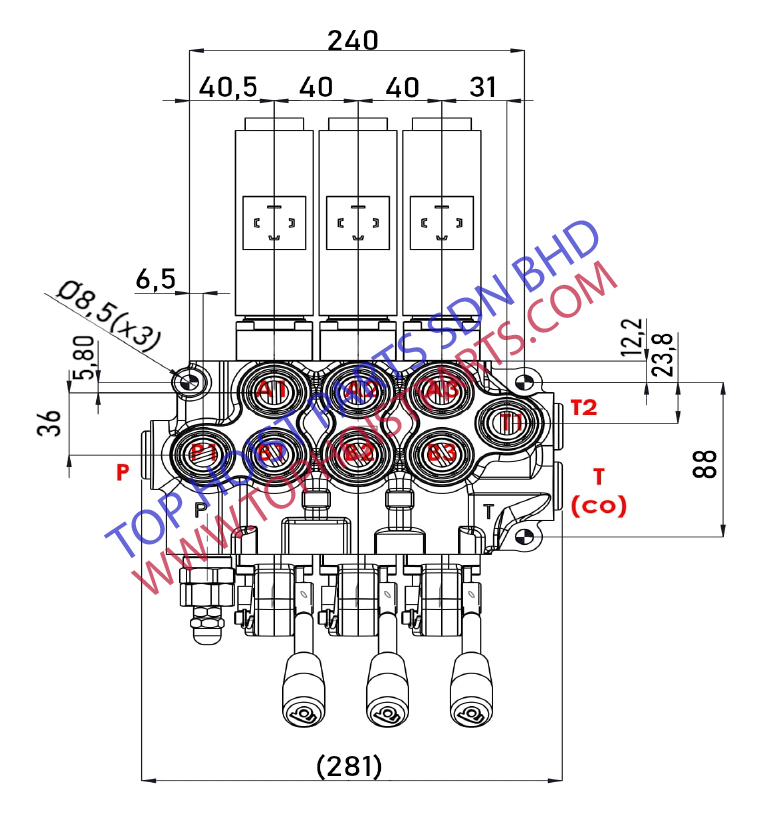

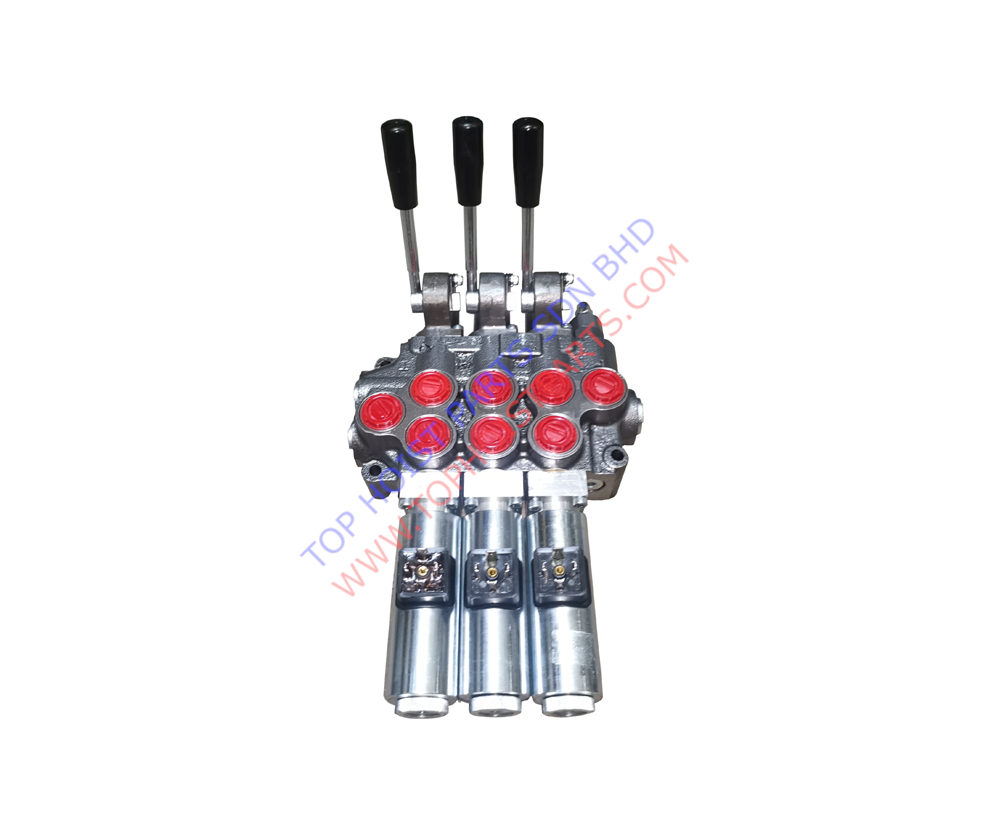

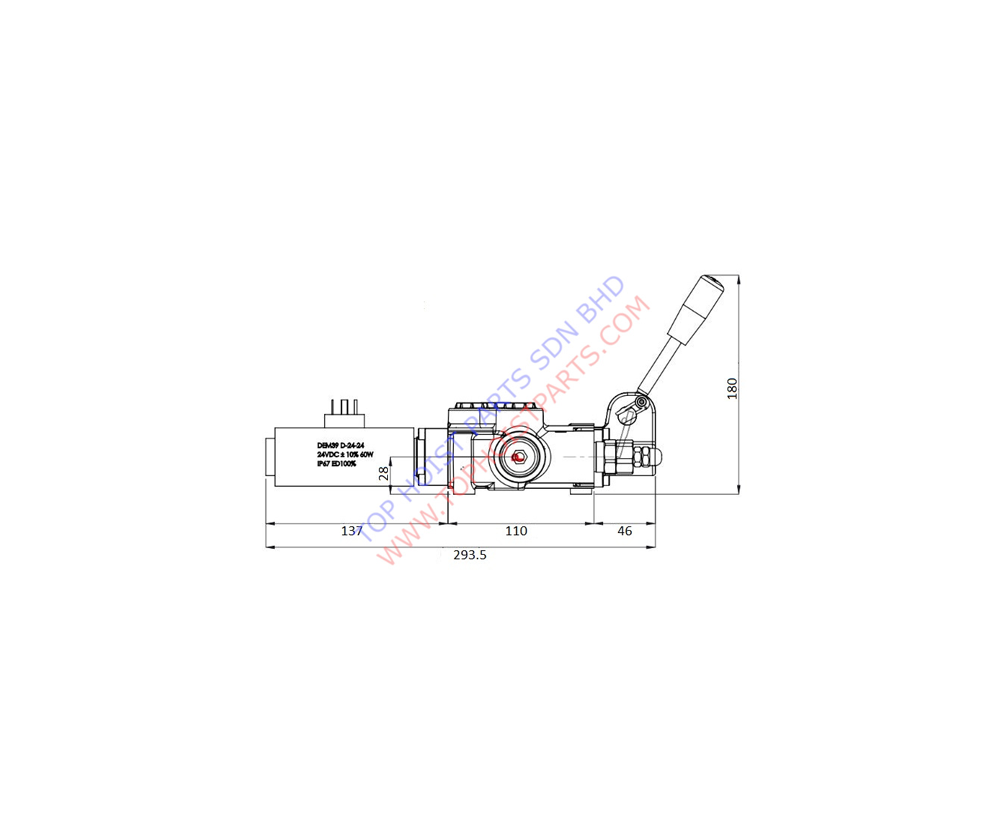

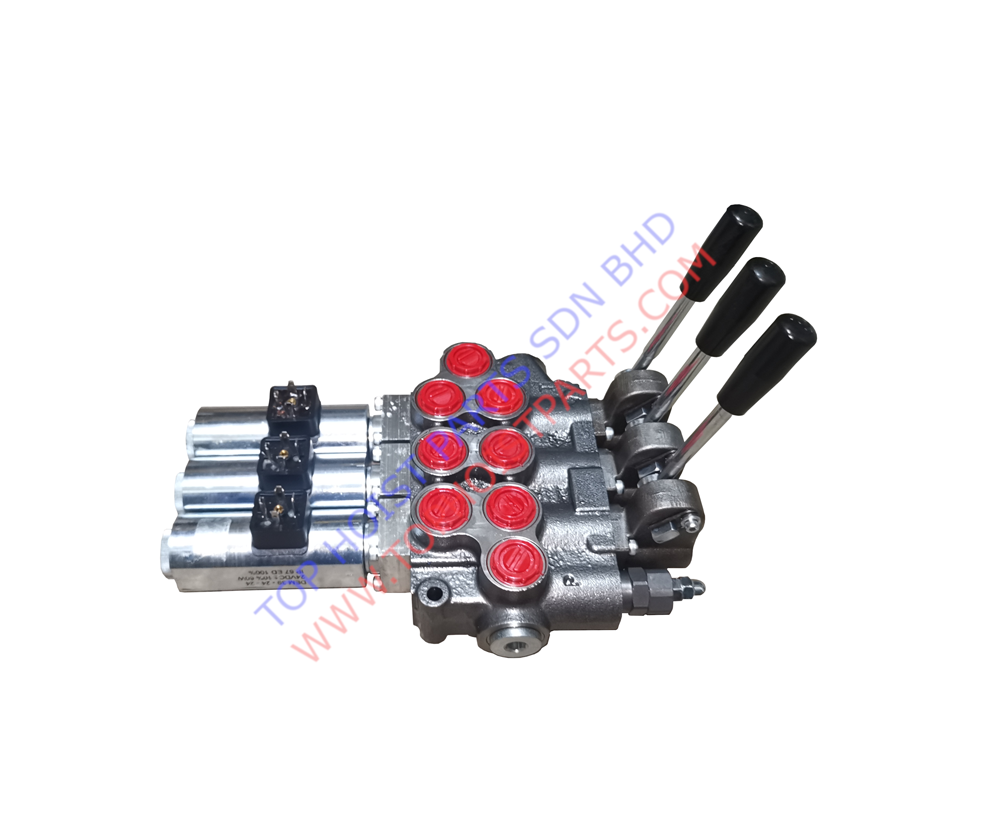

MONOBLOCK (DC24V) ELECTRIC CONTROL VALVE (3 SPOOL) - 50LTM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : DC30050
NO. OF SPOOL : 3
FLOW : 50LT/MIN
MAX OPERATING PRESSURE : 260 BAR
MAX BACK PRESSURE : 5 BAR
SUPPLY VOLTAGE : 24VDC
WEIGHT (KG) : 8.2
4x Image

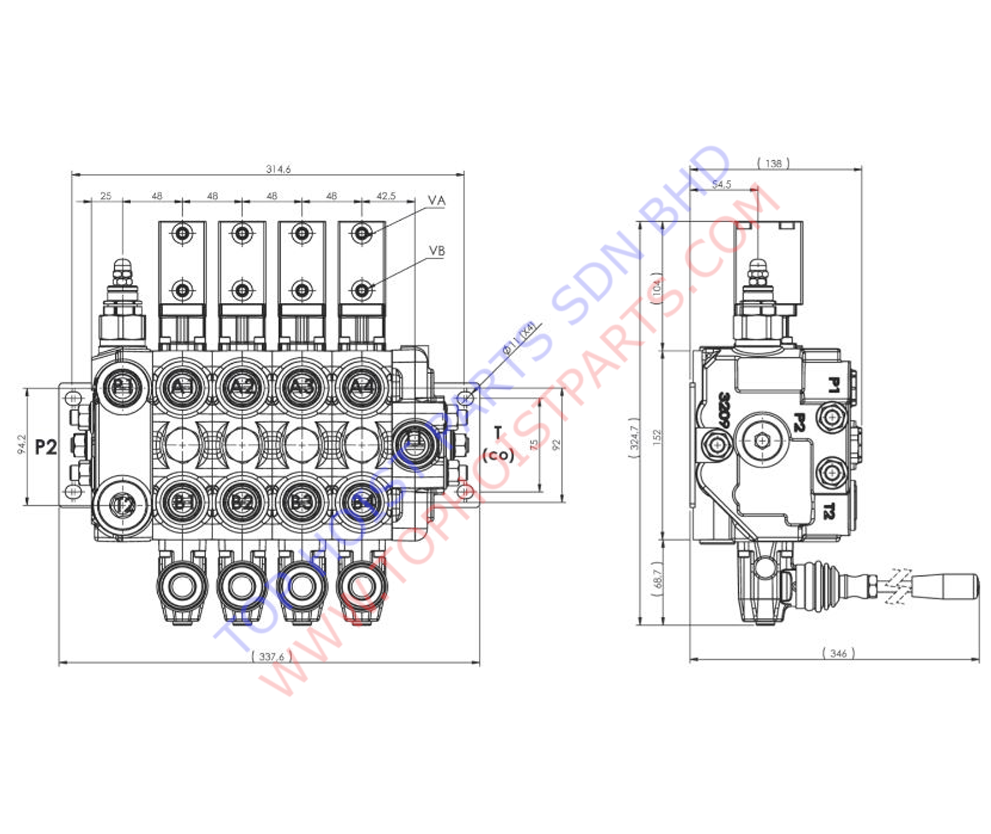

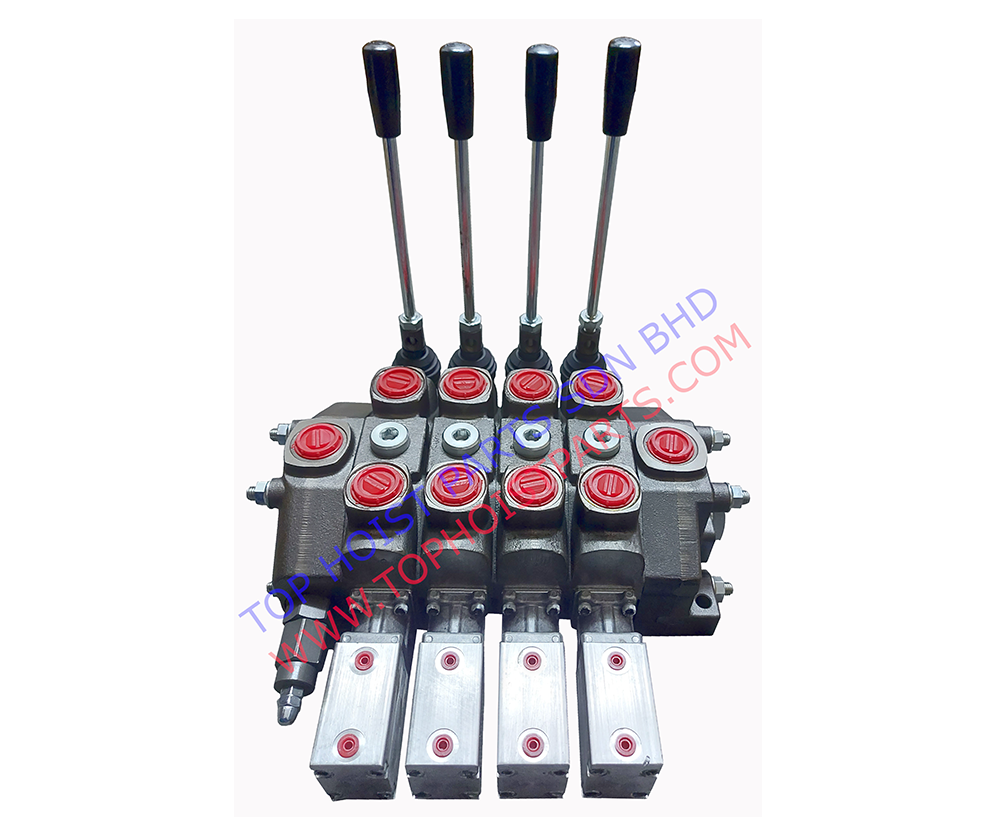

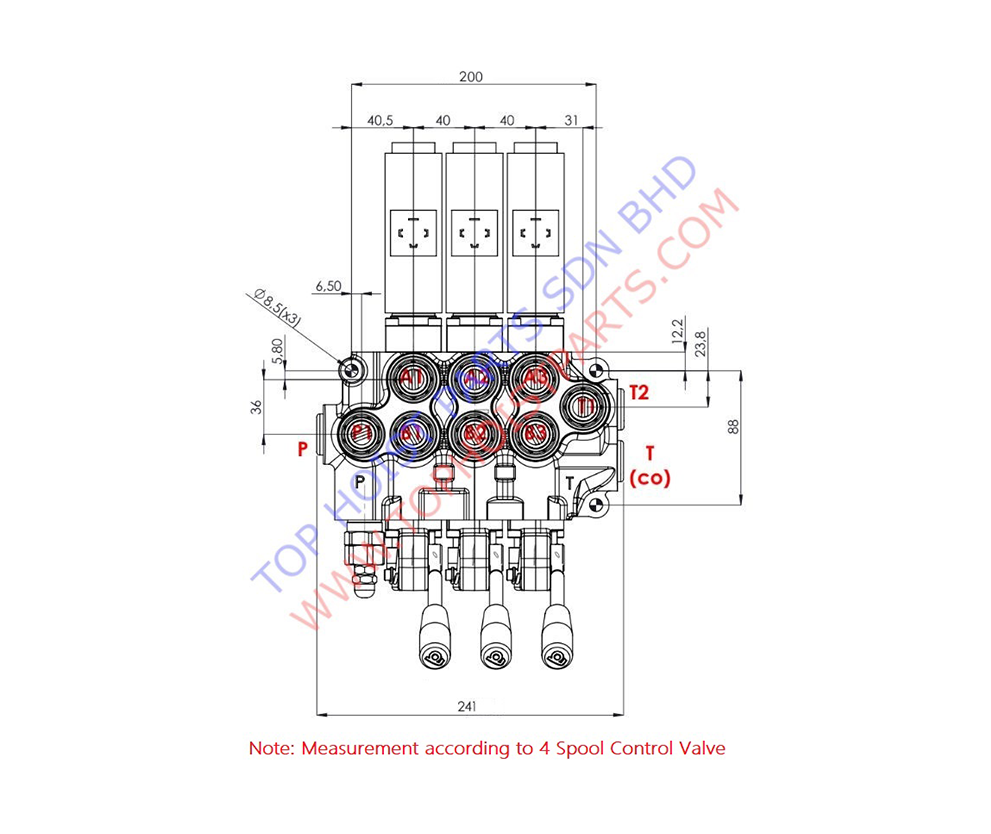

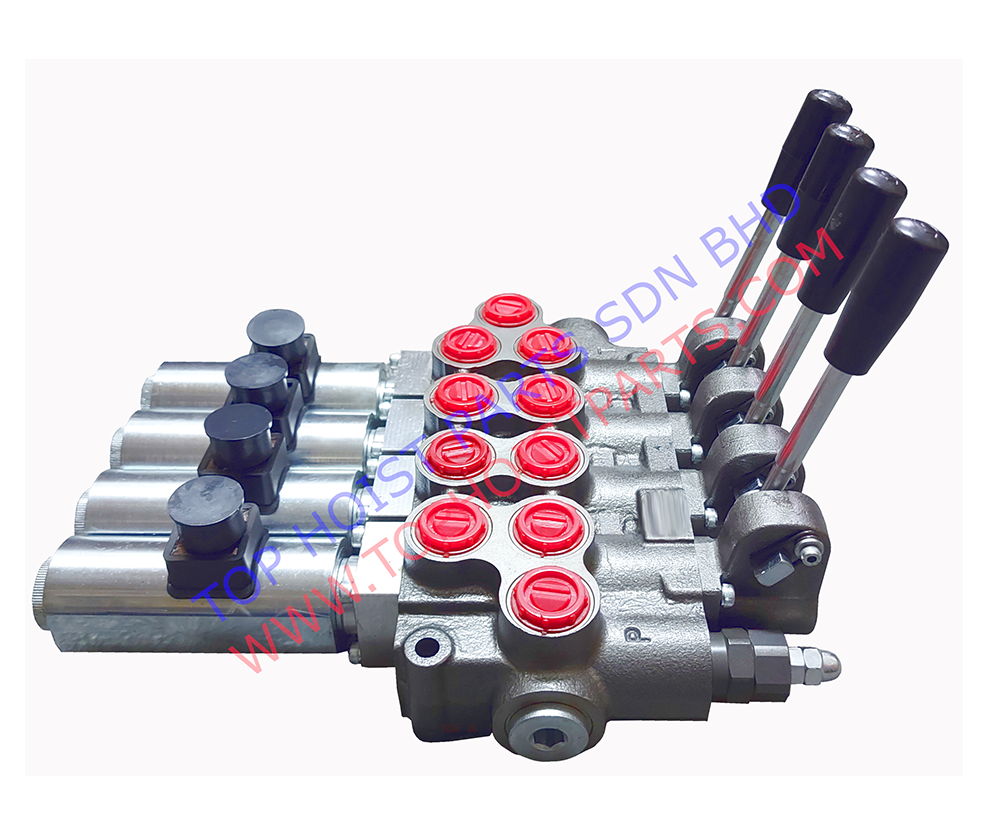

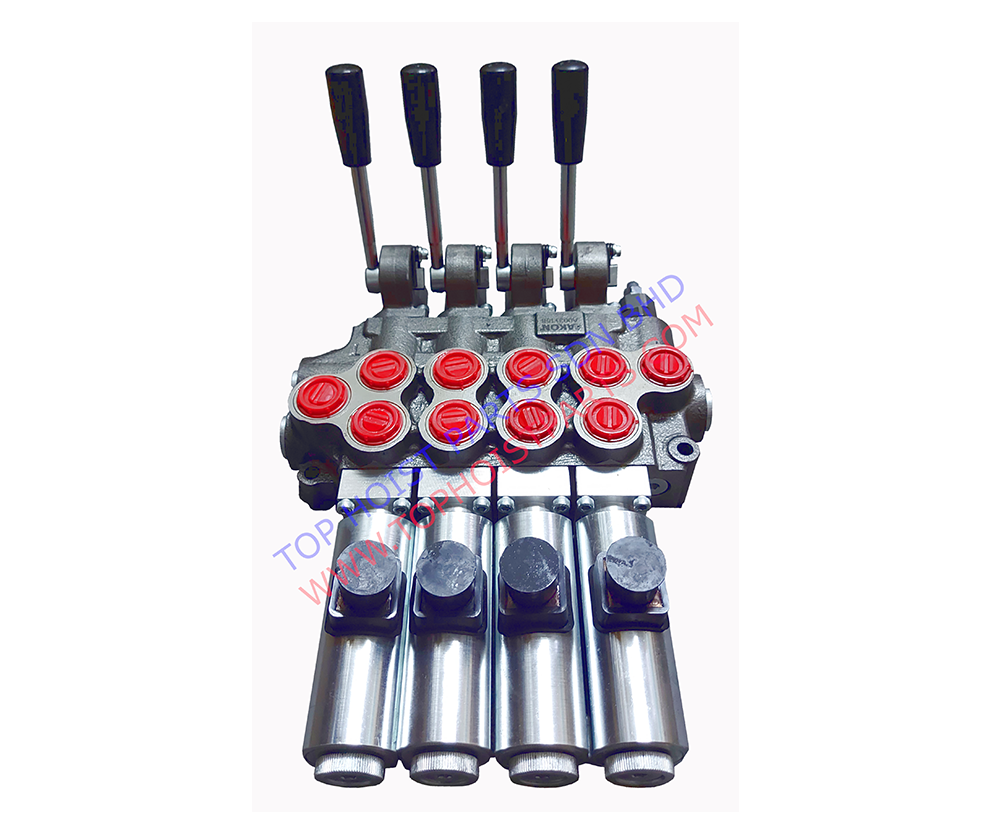

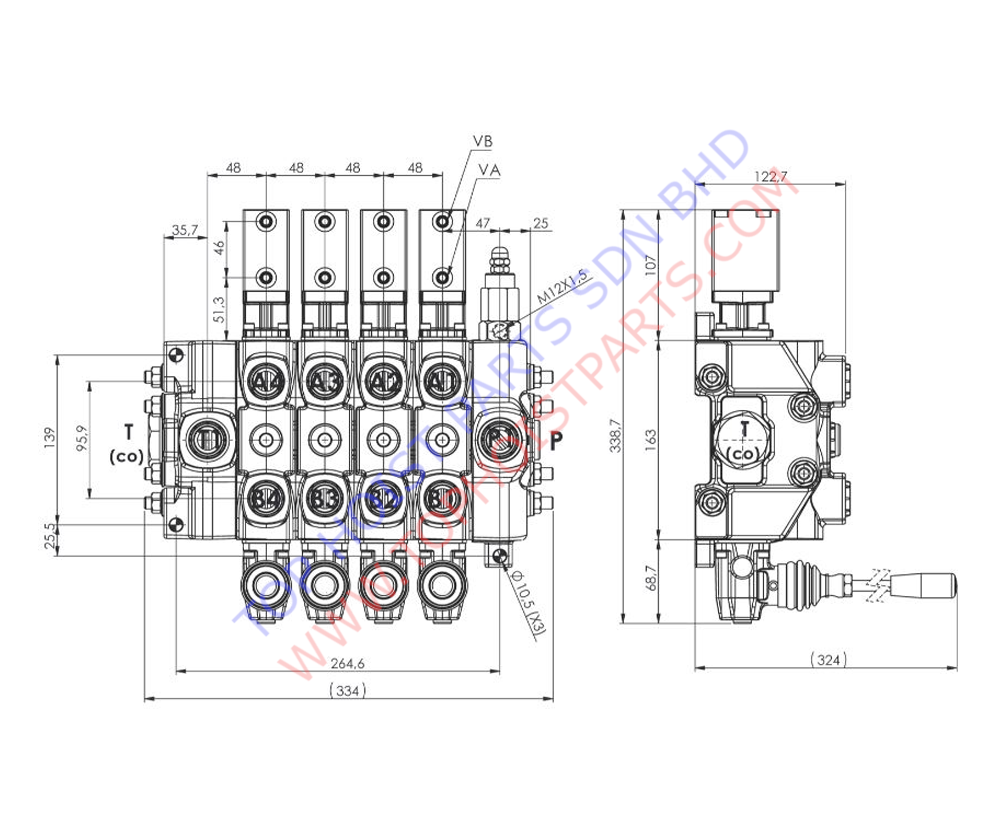

MONOBLOCK (DC24V) ELECTRIC CONTROL VALVE (4 SPOOL) - 50LTM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : DC40050
NO. OF SPOOL : 4
FLOW : 50LT/MIN
MAX OPERATING PRESSURE : 260 BAR
MAX BACK PRESSURE : 5 BAR
SUPPLY VOLTAGE : 24VDC
WEIGHT (KG) : 10.0
2x Image 2x Image 2x Image 2x Image

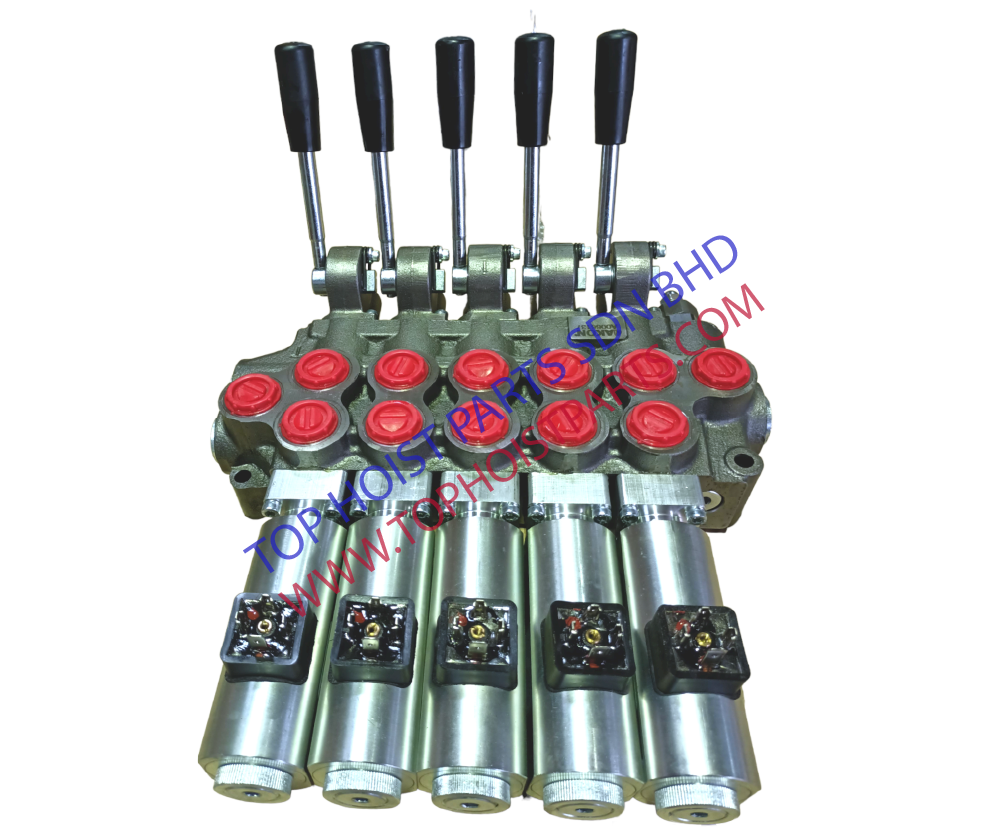

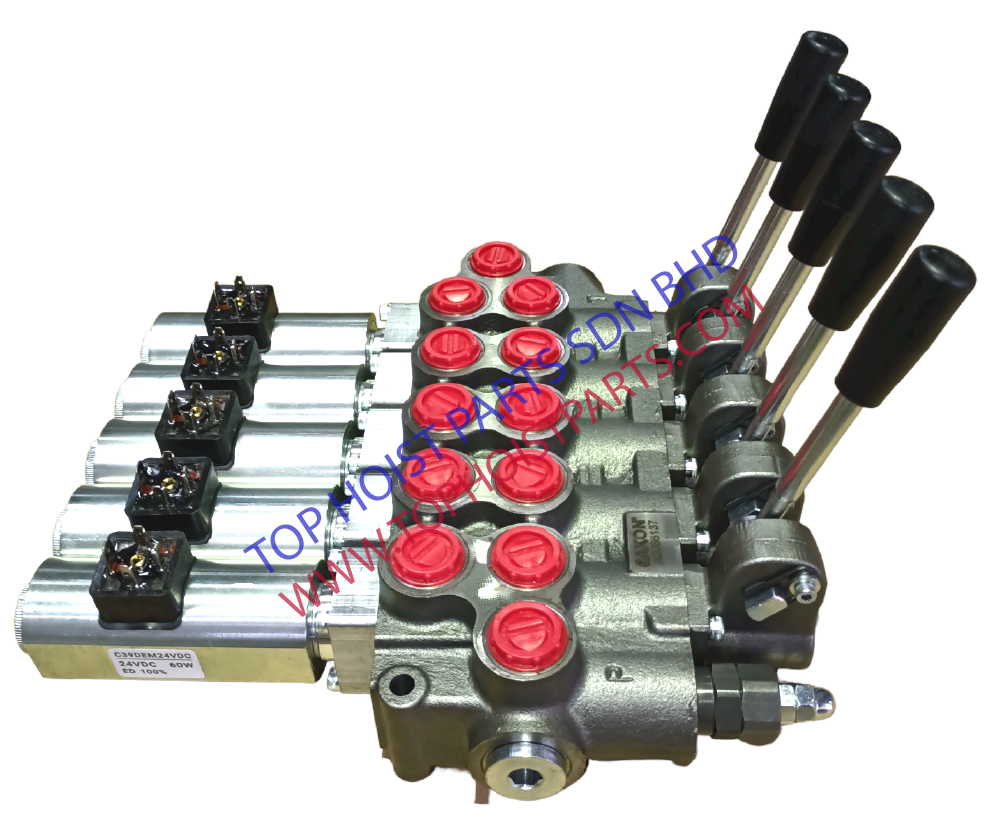

MONOBLOCK (DC24V) ELECTRIC CONTROL VALVE (5 SPOOL) - 50LTM

COUNTRY OF ORIGIN: TURKEY
PRODUCT CODE: DC50050
NO. OF SPOOL: 4
FLOW RATE: 50LT/MIN
MAX OPERATING PRESSURE: 260 BAR
MAX BACK PRESSURE: 5 BAR
SUPPLY VOLTAGE: 24VDC
WEIGHT (KG):12.3
