SKIP HOIST - TENTSUKI TYPE ( KRM SERIES )

4x Image

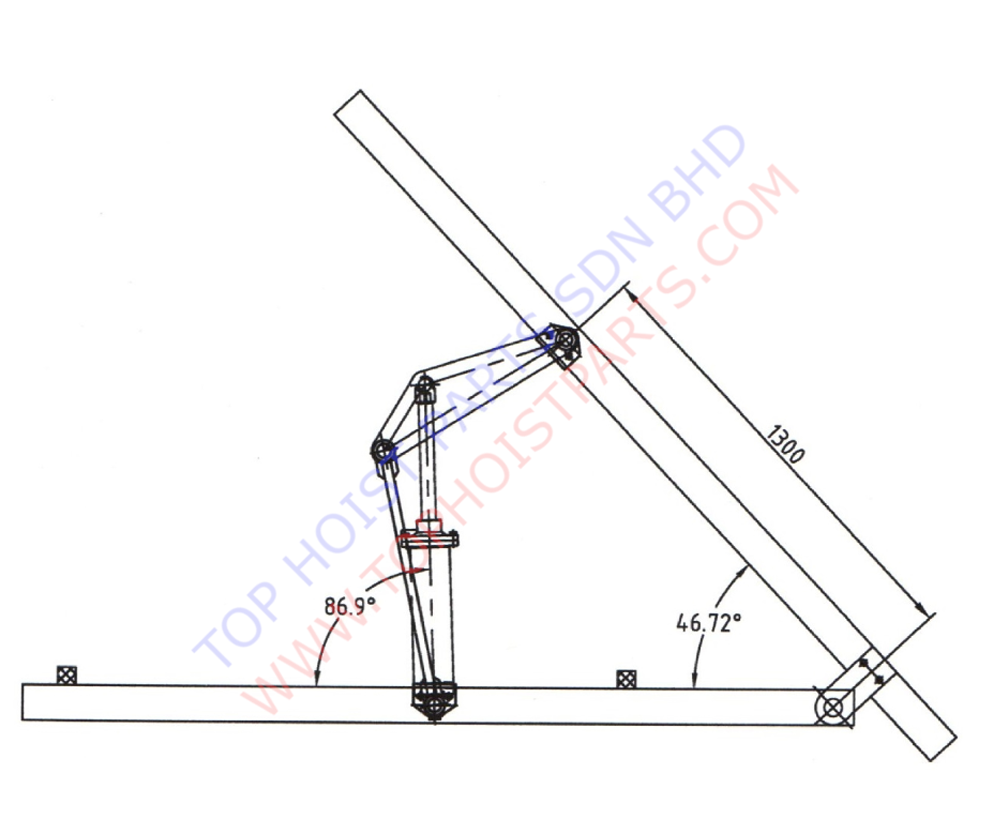

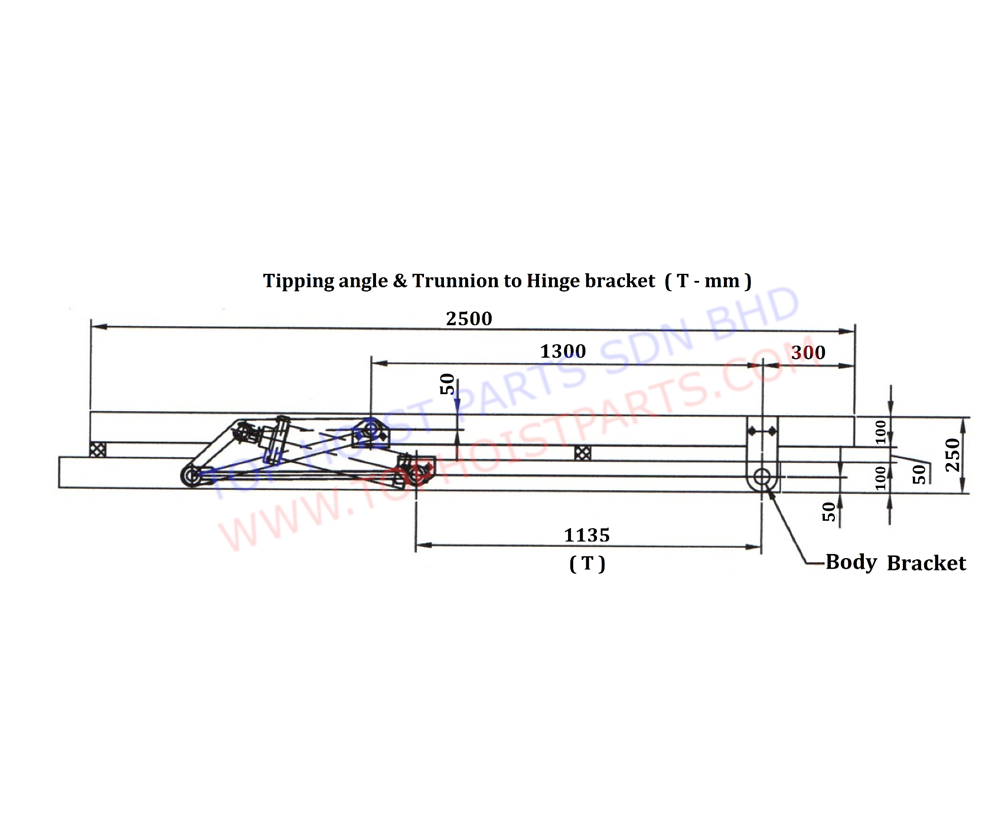

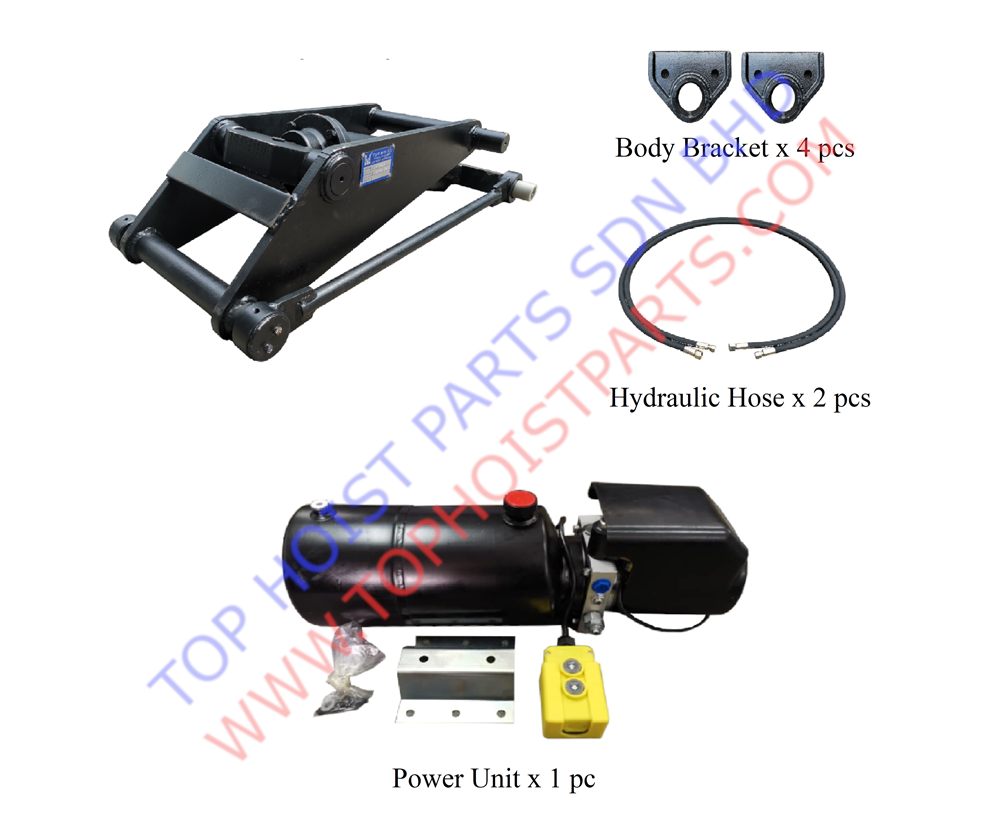

KRM 100

BRAND : TOP HOIST
MODEL : KRM 100
RECOMMENDED TRUCK : PICKUP TRUCK / 4 WHEEL TRUCK (4X2)
BODY LENGTH (MM) : 2200 TO 2500
CYLINDER BORE (MM) : 100
PISTON ROD DIAMETER (MM) : 50
STROKE (MM) : 225
RATED LIFTING CAPACITY (KG) : 2500 TO 3500
2x Image

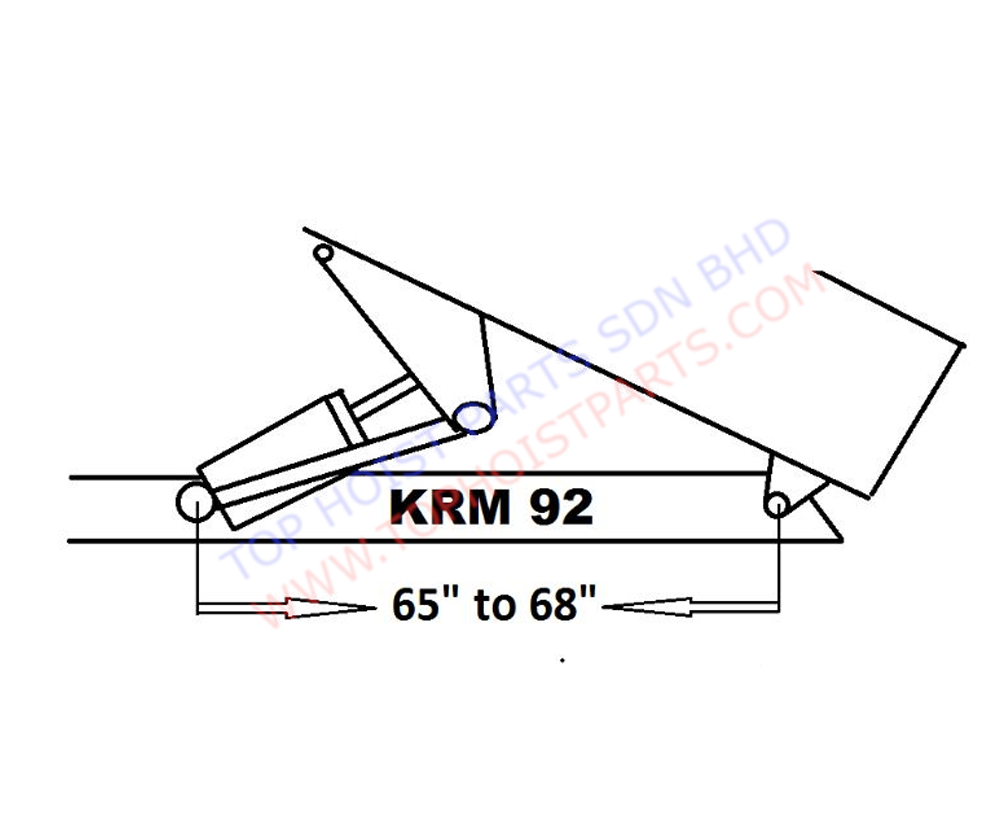

KRM 92

BRAND : TOP HOIST
MODEL : KRM 92
RECOMMENDED TRUCK G.V.W (KG) : 4000 TO 5000
BODY LENGTH (MM) : 3250 TO 3500
CYLINDER BORE (MM) : 150
PISTON ROD DIAMETER (MM) : 60
STROKE (MM) : 405
GEAR PUMP : KP 35 SERIAL
RATED LIFTING CAPACITY (KG) : 2500 TO 4000
3x Image

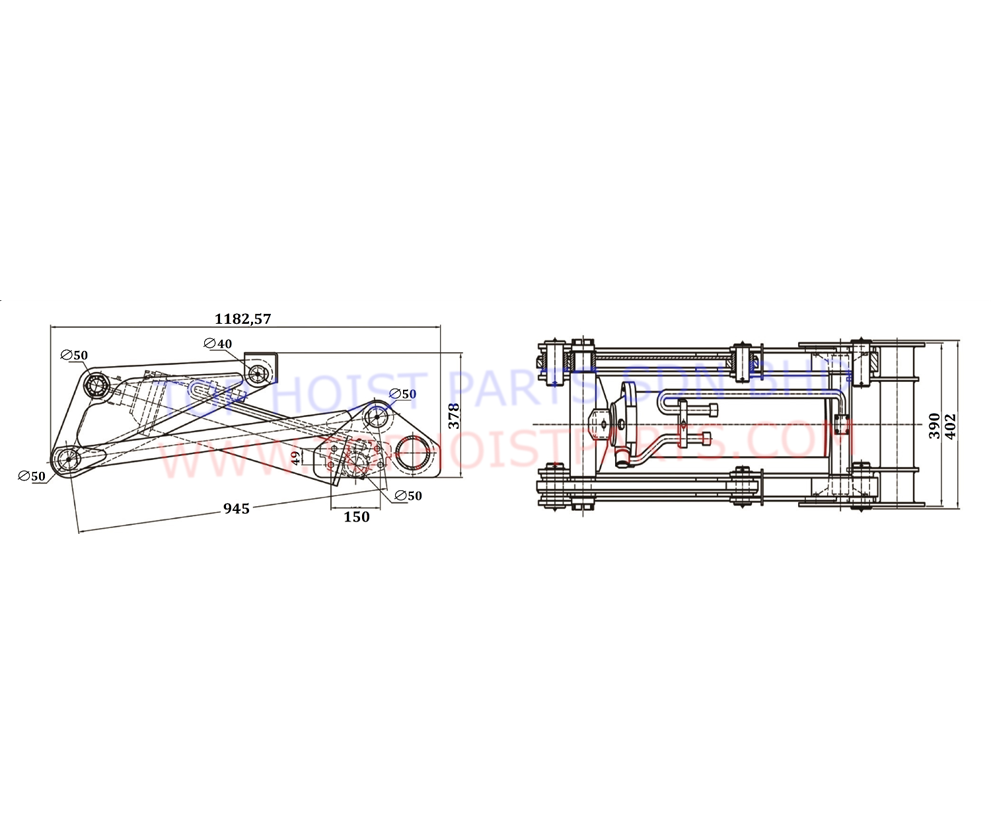

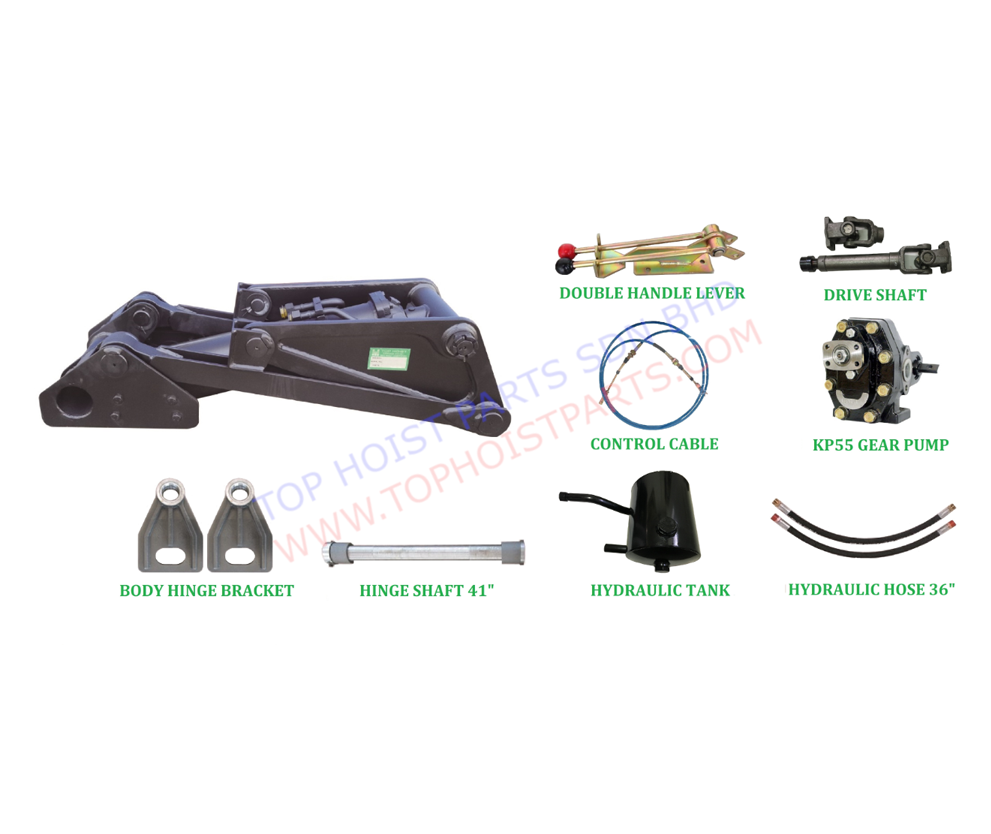

KRM 143

BRAND : TOP HOIST
MODEL : KRM 143
RECOMMENDED TRUCK G.V.W (KG) : 5000 TO 6000
BODY LENGTH (MM) : 3400 TO 4200
CYLINDER BORE (MM) : 140
PISTON ROD DIAMETER (MM) : 60
STROKE (MM) : 530
GEAR PUMP : KP 55 A SERIAL
RATED LIFTING CAPACITY (KG) : 5000 TO 7000
2x Image

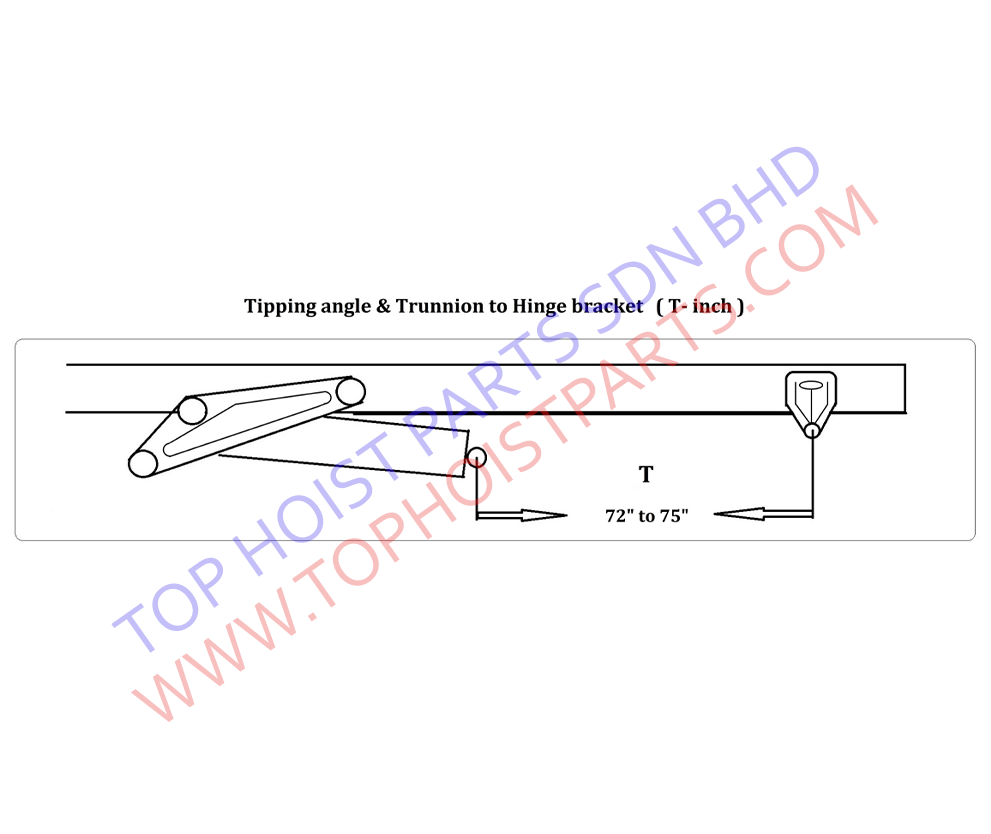

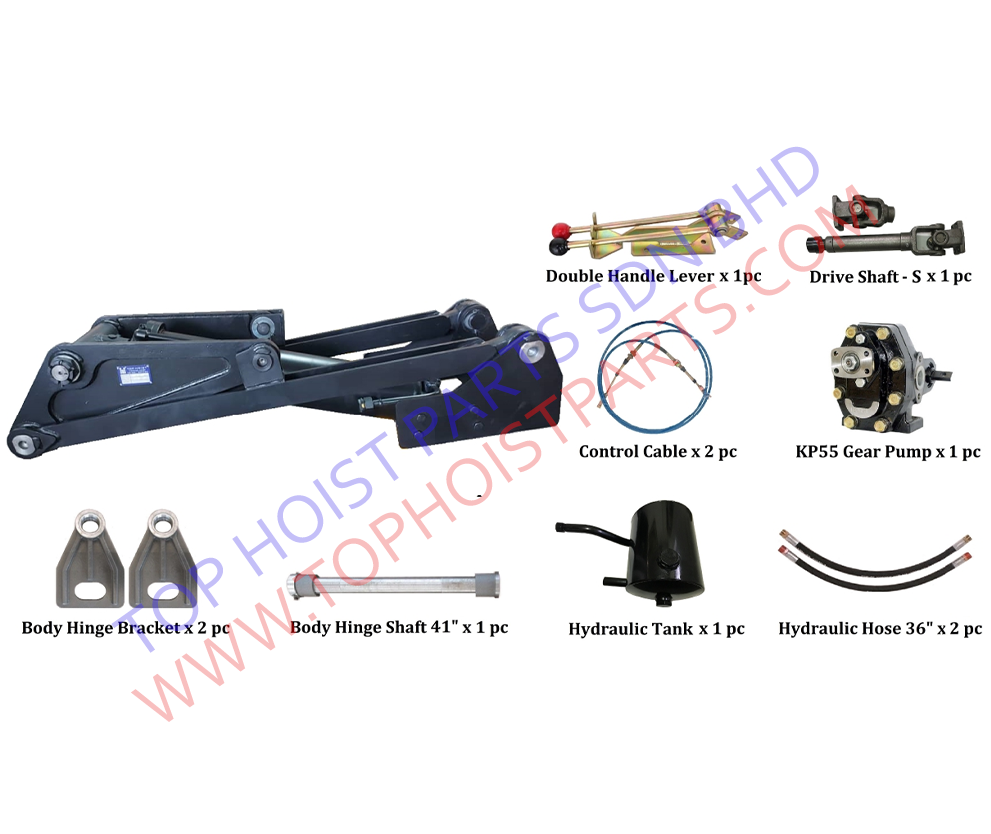

KRM 143 L

BRAND: TOP HOIST
MODEL: KRM 143 L
RECOMMENDED TRUCK G.V.W (KG): 5000 TO 6000
BODY LENGTH (MM): 4200 TO 4800
CYLINDER BORE (MM): 1400
PISTON ROD DIAMETER (MM): 70
STROKE (MM):680
GEAR PUMP: KP-55 A
RATED LIFTING CAPACITY (KG) : 5000 TP 8000
3x Image

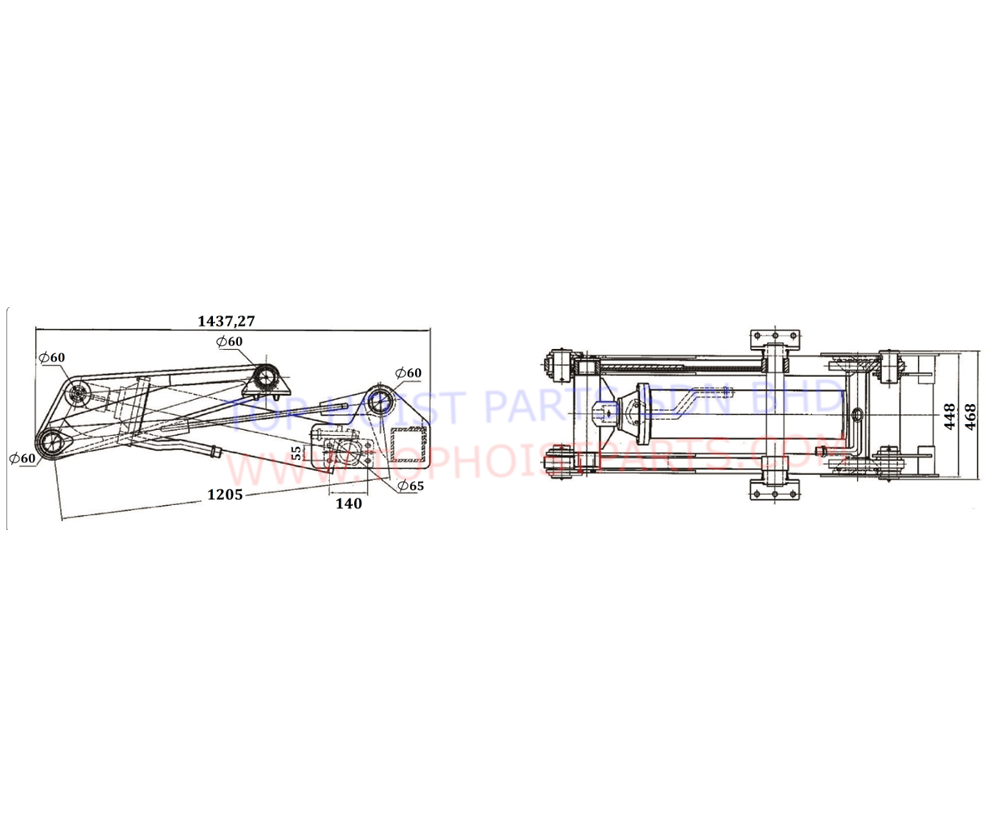

KRM 160 S

BRAND : TOP HOIST
MODEL : KRM 160 S
RECOMMENDED TRUCK G.V.W (KG) : 5500 TO 6500
BODY LENGTH (MM) : 4300 TO 4800
CYLINDER BORE (MM) : 160
PISTON ROD DIAMETER (MM) : 80
STROKE (MM) : 625
GEAR PUMP : KP 75 A SERIAL
RATED LIFTING CAPACITY (KG) : 6000 TO 9000
3x Image

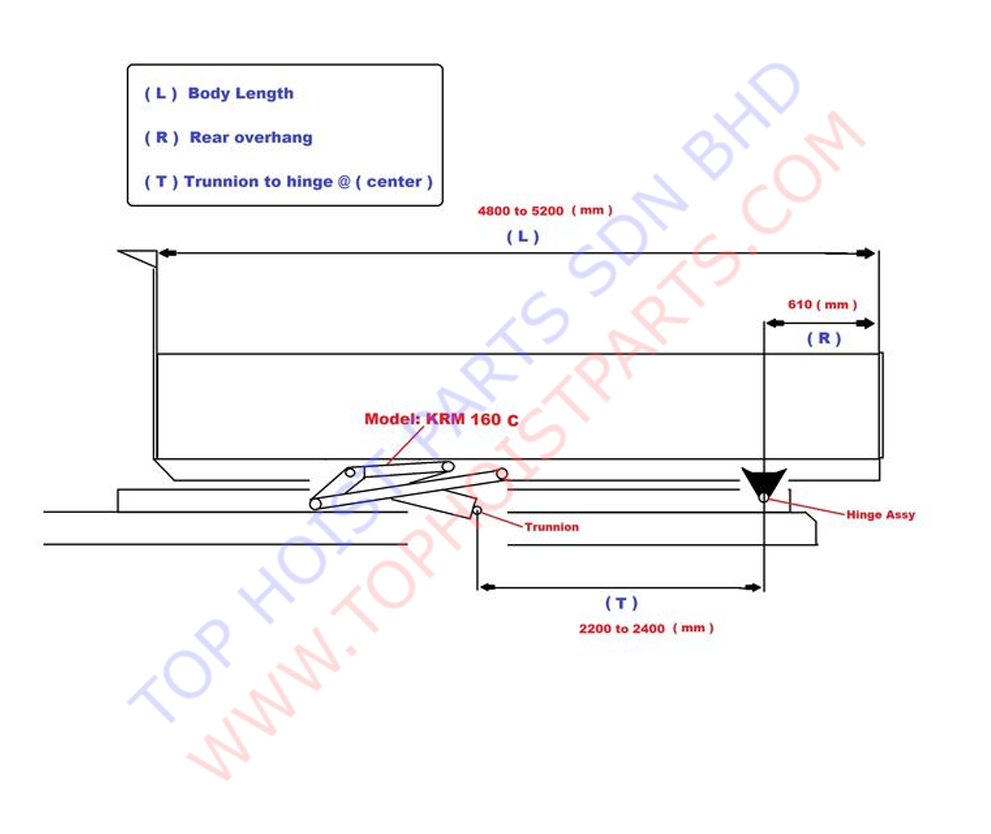

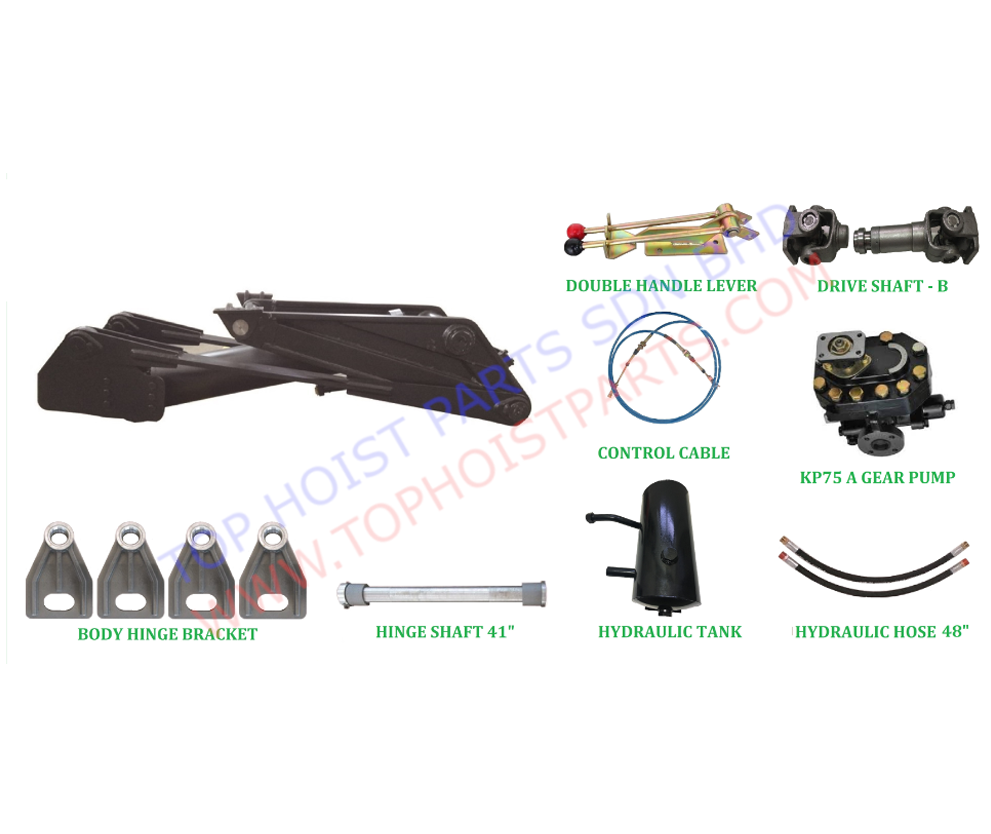

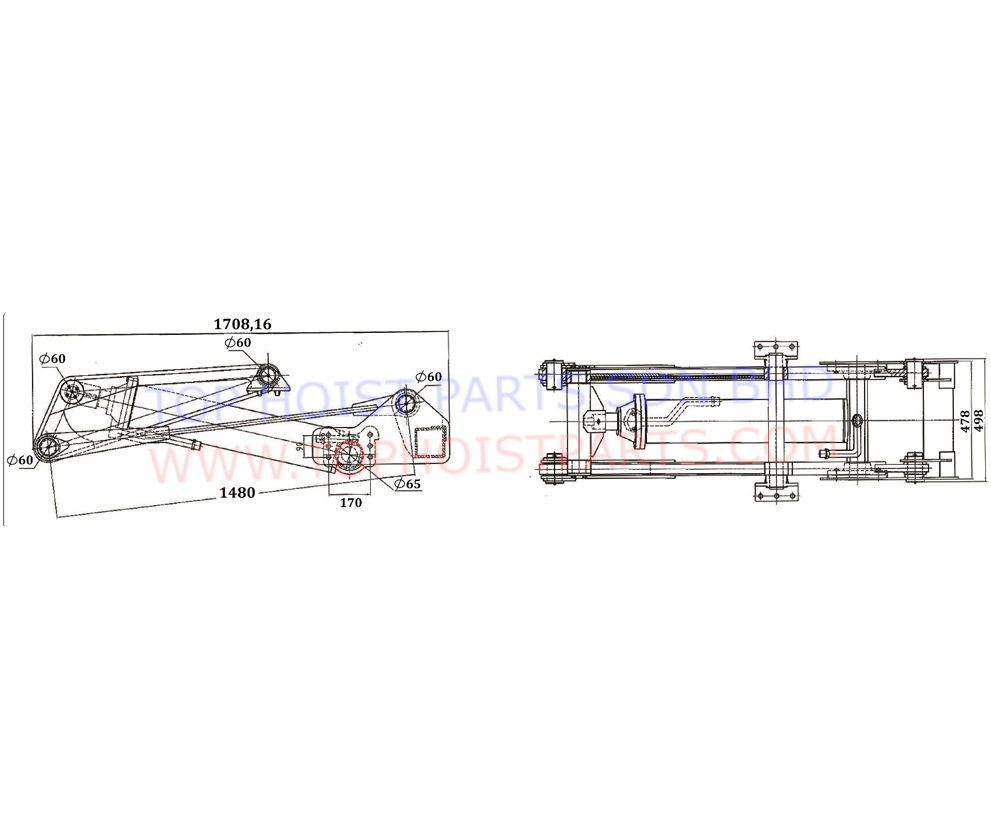

KRM 160 C

BRAND : TOP HOIST
MODEL : KRM 160 C
RECOMMENDED TRUCK G.V.W (KG) : 8000 TO 10000
BODY LENGTH (MM) : 4600 TO 5000
CYLINDER BORE (MM) : 160
PISTON ROD DIAMETER (MM) : 80
STROKE (MM) : 780
GEAR PUMP : KP 75 A SERIAL
RATED LIFTING CAPACITY (KG) : 8000 TO 12000
3x Image

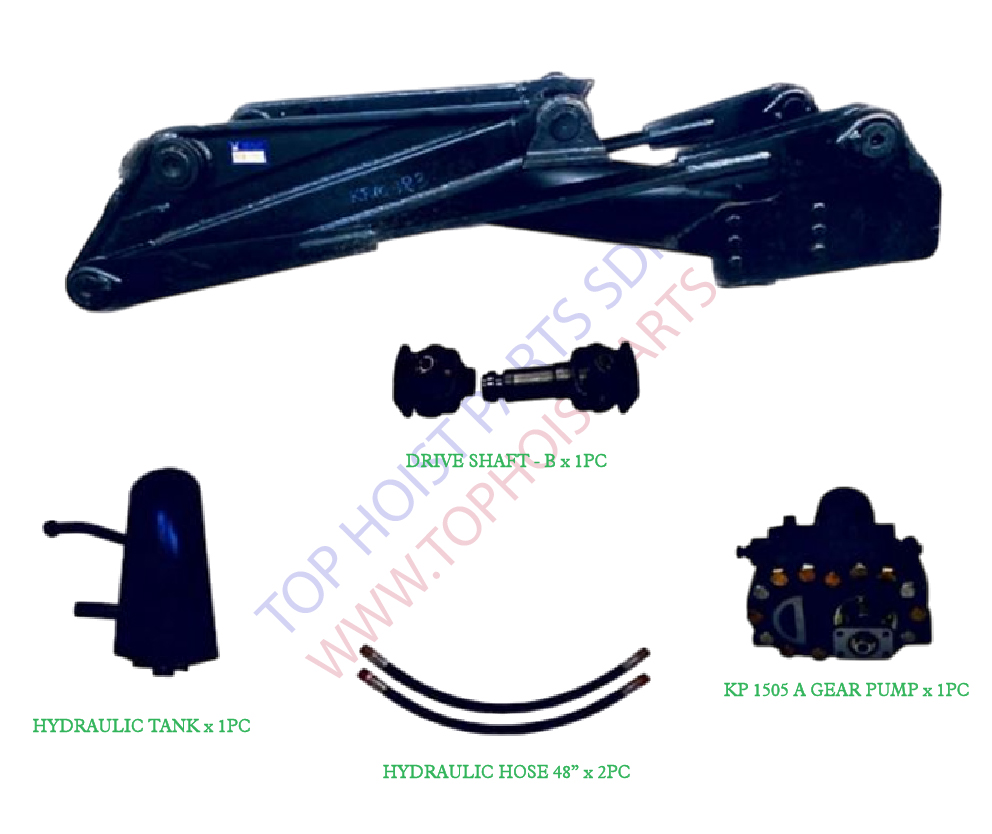

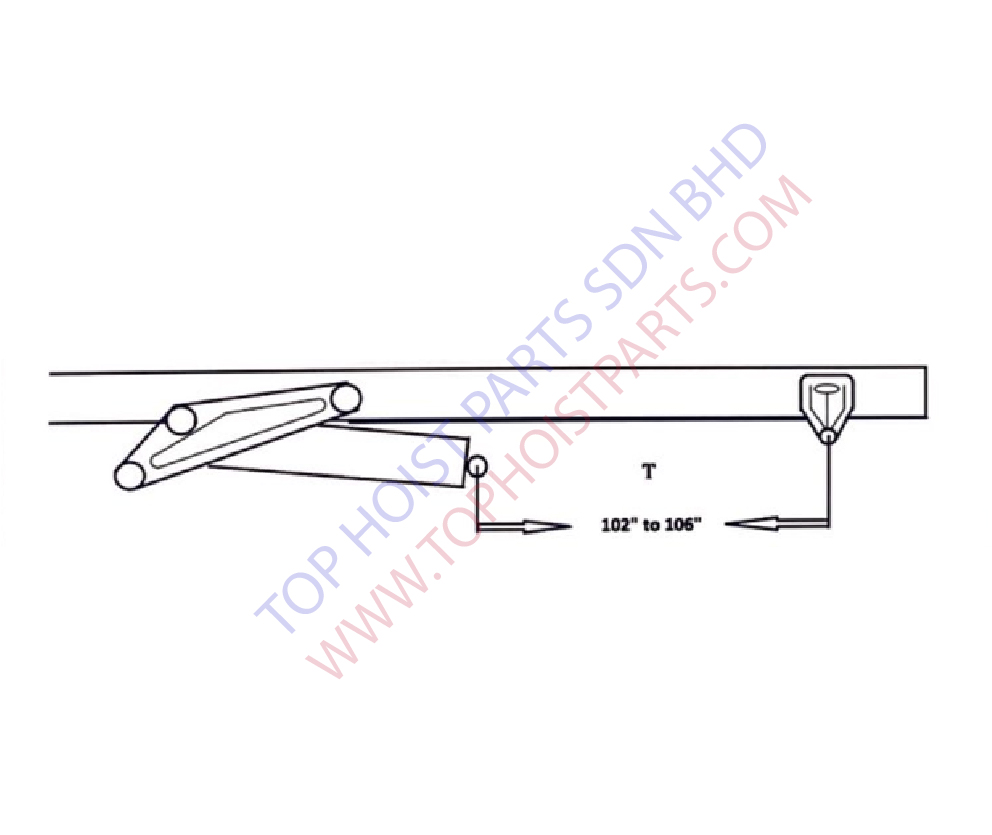

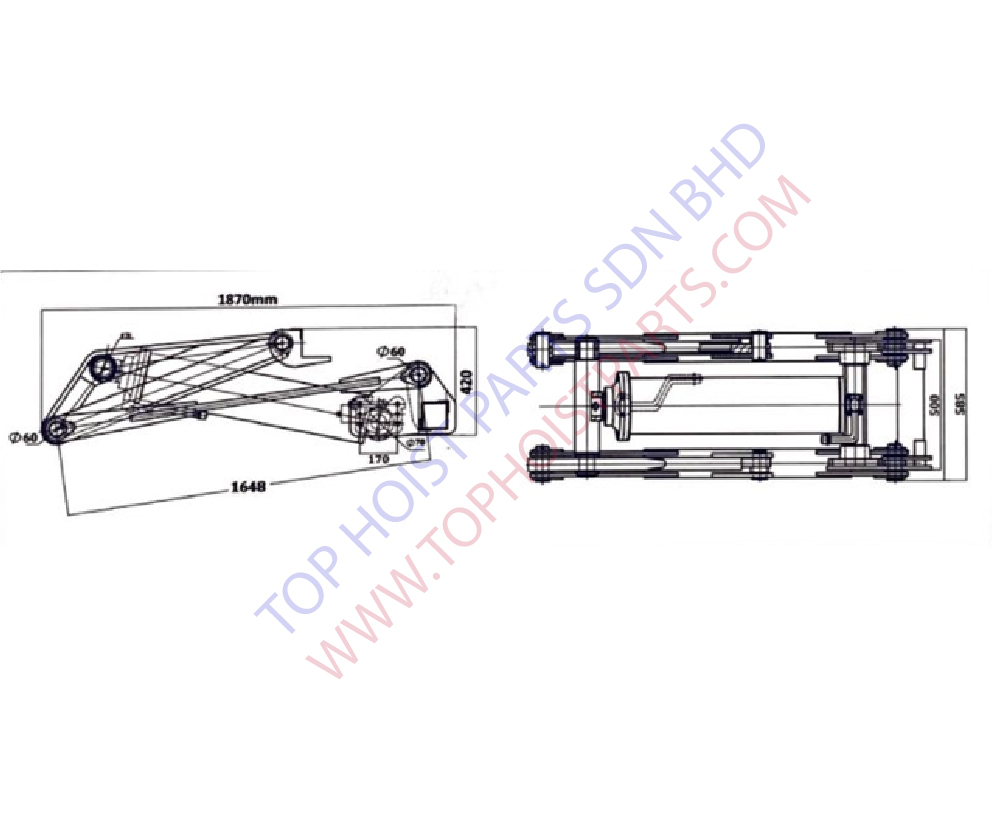

KRM 183

BRAND : TOP HOIST
MODEL : KRM 183
RECOMMENDED TRUCK G.V.W (KG) : 8000 TO 10000
BODY LENGTH (MM) : 5300 TO 5500
CYLINDER BORE (MM) : 180
PISTON ROD DIAMETER (MM) : 90
STROKE (MM) : 880
GEAR PUMP : KP 1505 A Gear Pump
RATED LIFTING CAPACITY (KG) : 12000 TO 18000
3x Image

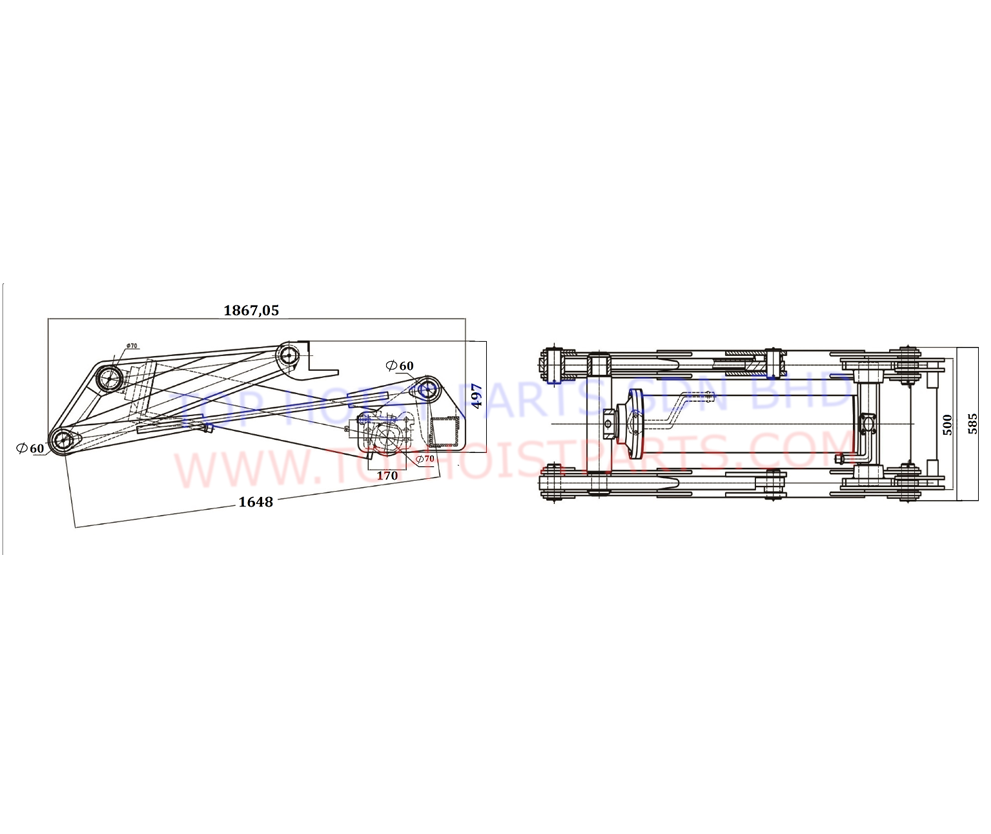

KRM 201

BRAND : TOP HOIST
MODEL : KRM 201
RECOMMENDED TRUCK G.V.W (KG) : 11000 TO 13000
BODY LENGTH (MM) : 5400 TO 5800
CYLINDER BORE (MM) : 200
PISTON ROD DIAMETER (MM) : 100
STROKE (MM) : 1035
GEAR PUMP : KP 1505 A SERIAL
RATED LIFTING CAPACITY (KG) : 15000 TO 20000
3x Image

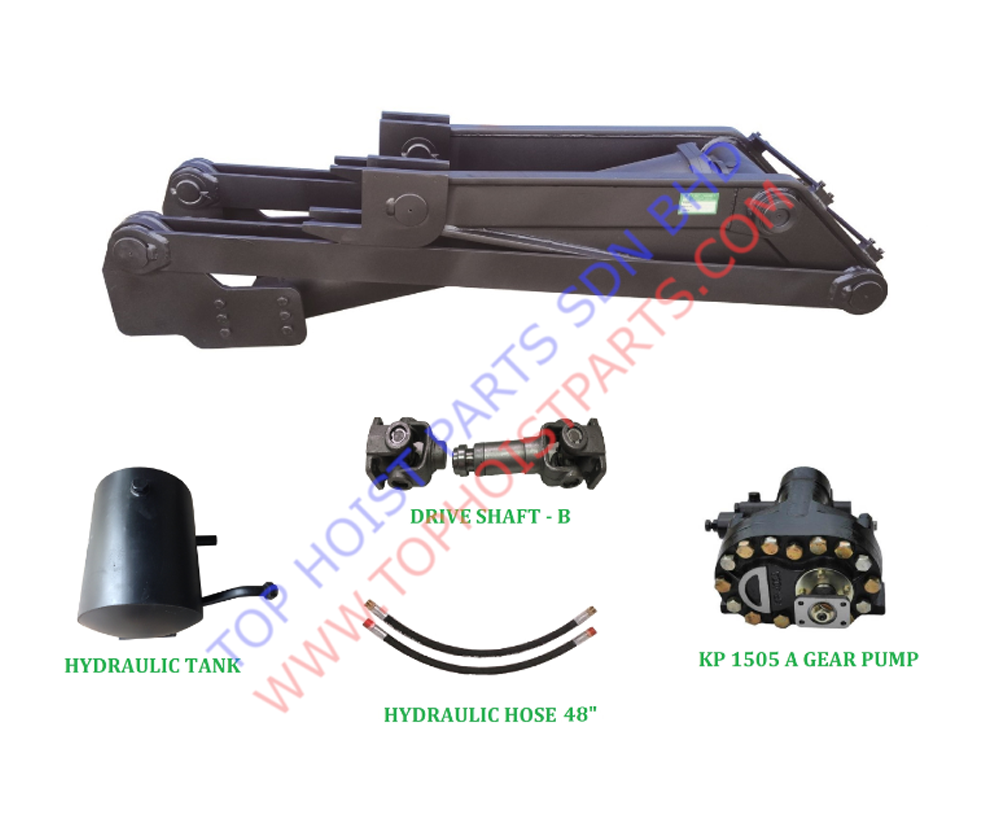

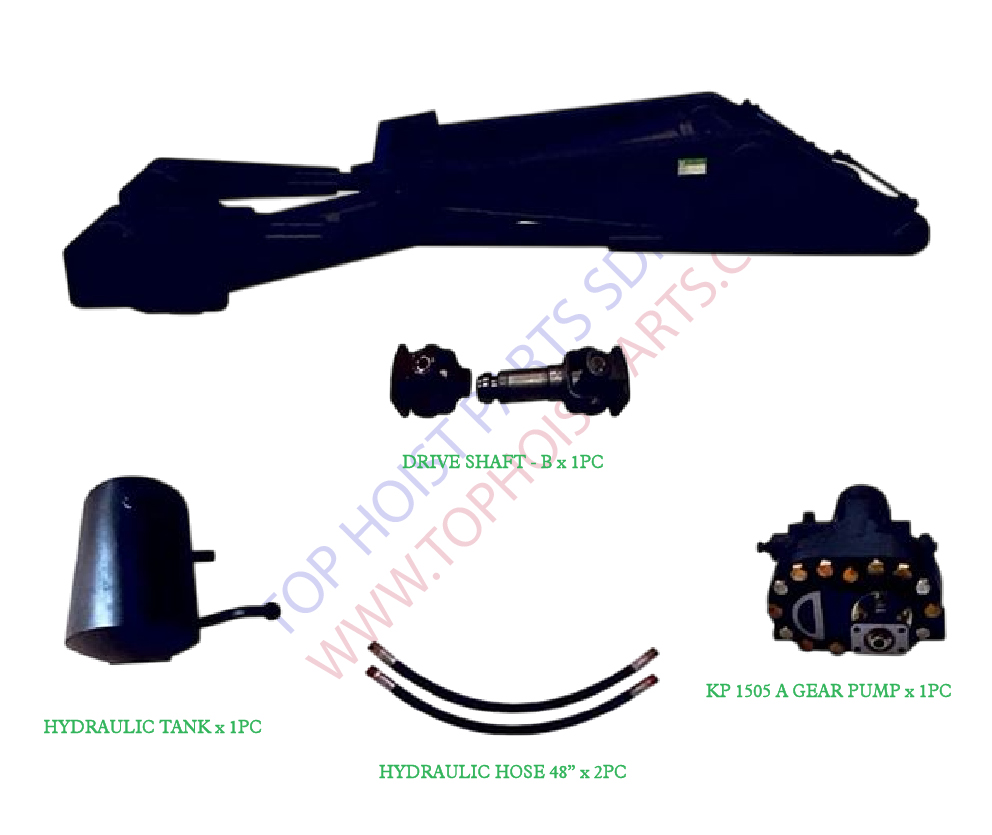

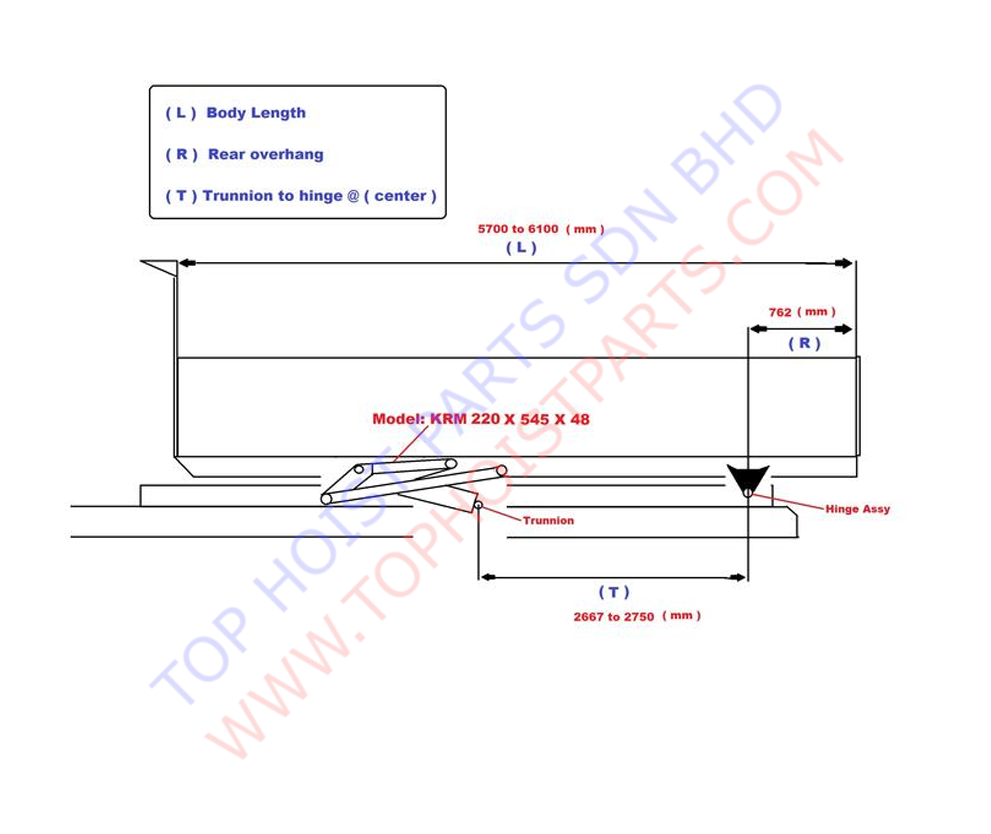

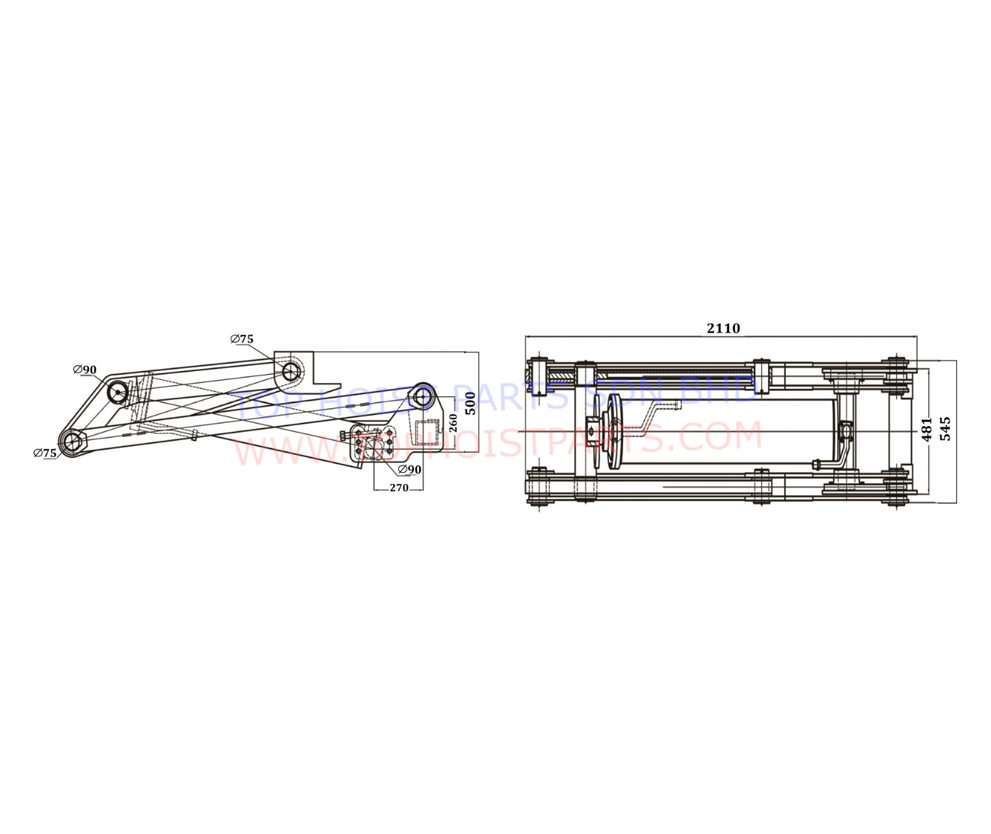

KRM 220 X 545 X 48

BRAND : TOP HOIST
MODEL : KRM 220 X 545 X 48
RECOMMENDED TRUCK G.V.W (KG) : 12000 TO 13000
BODY LENGTH (MM) : 5700 TO 6000
CYLINDER BORE (MM) : 220
PISTON ROD DIAMETER (MM) : 100
STROKE (MM) : 1050
GEAR PUMP : KP 1505 A SERIAL
RATED LIFTING CAPACITY (KG) : 22000 TO 27000
3x Image

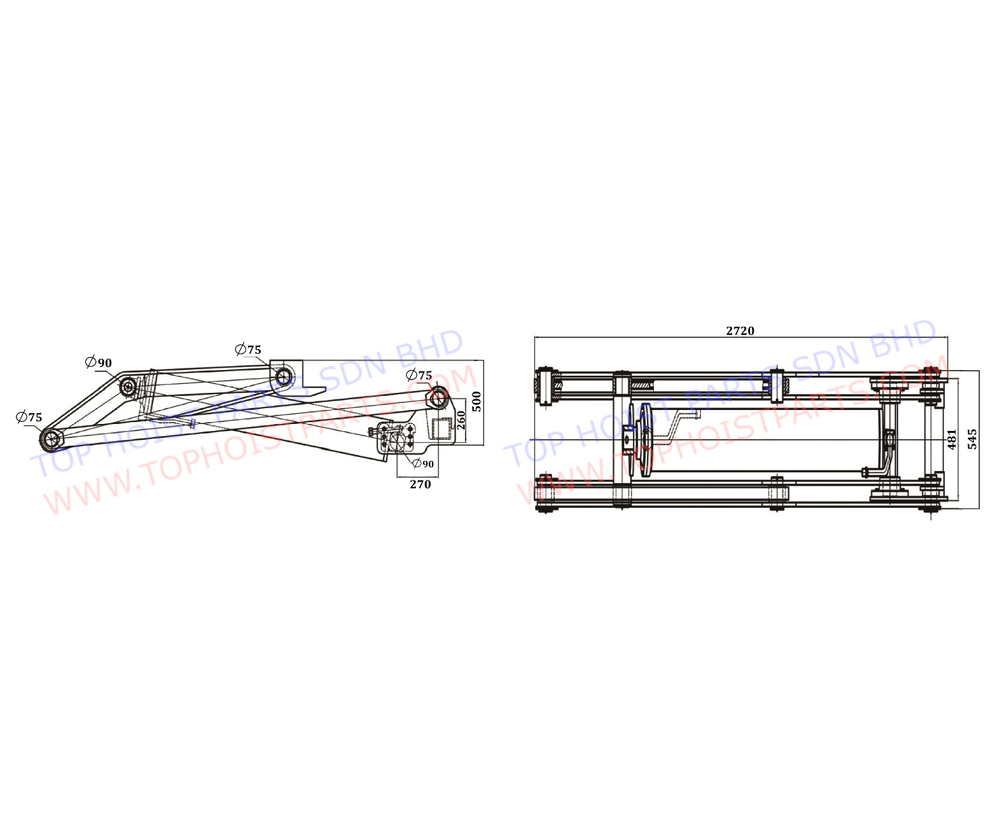

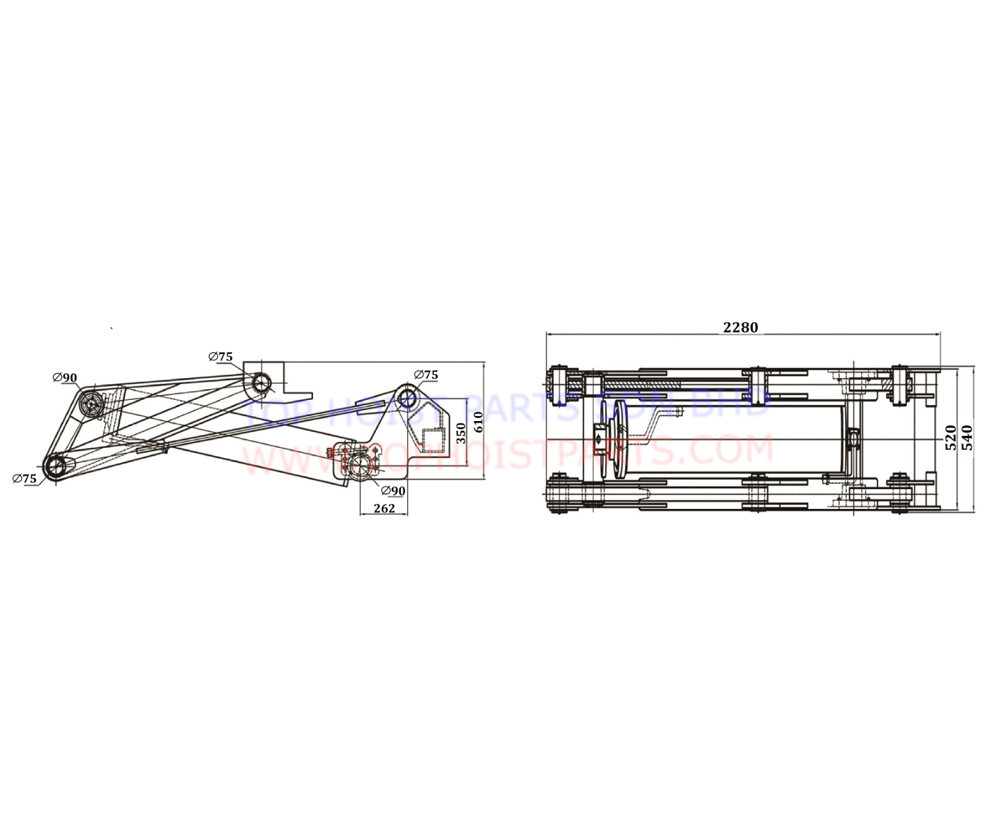

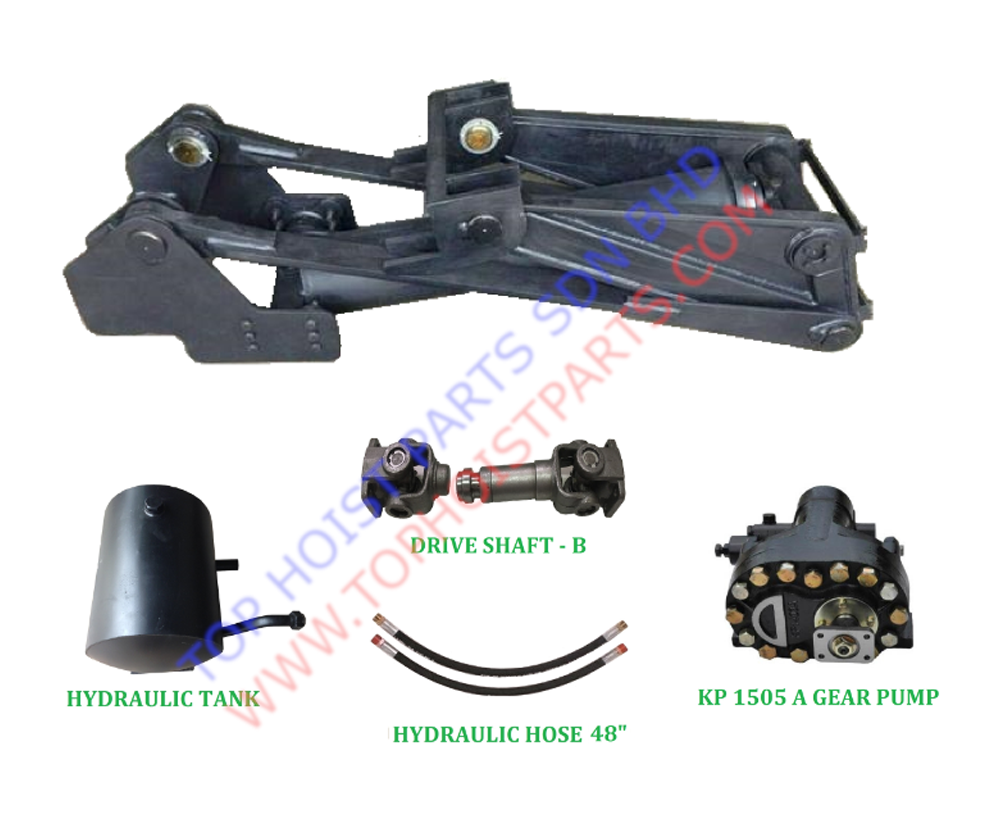

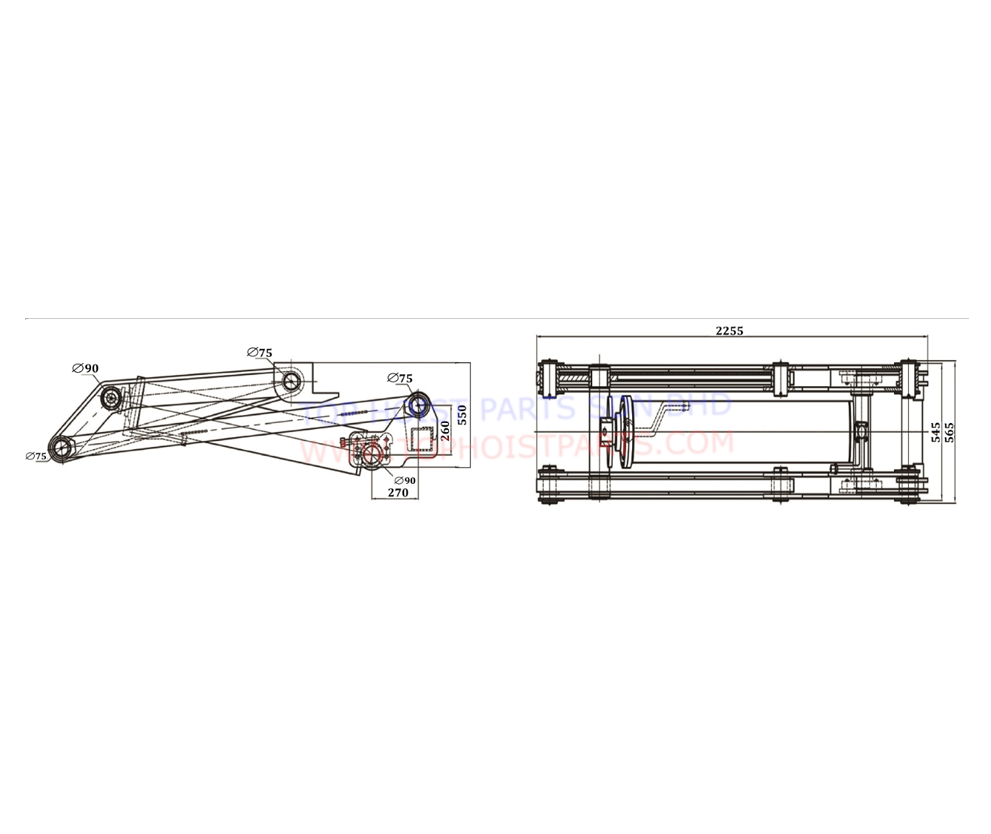

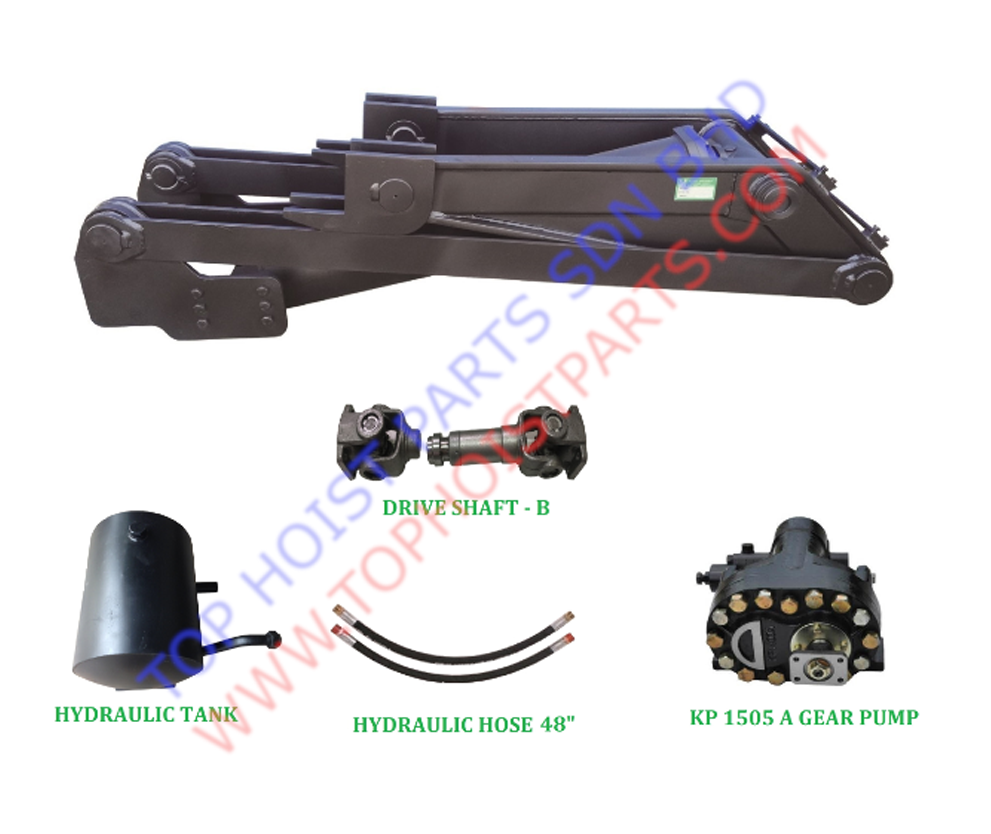

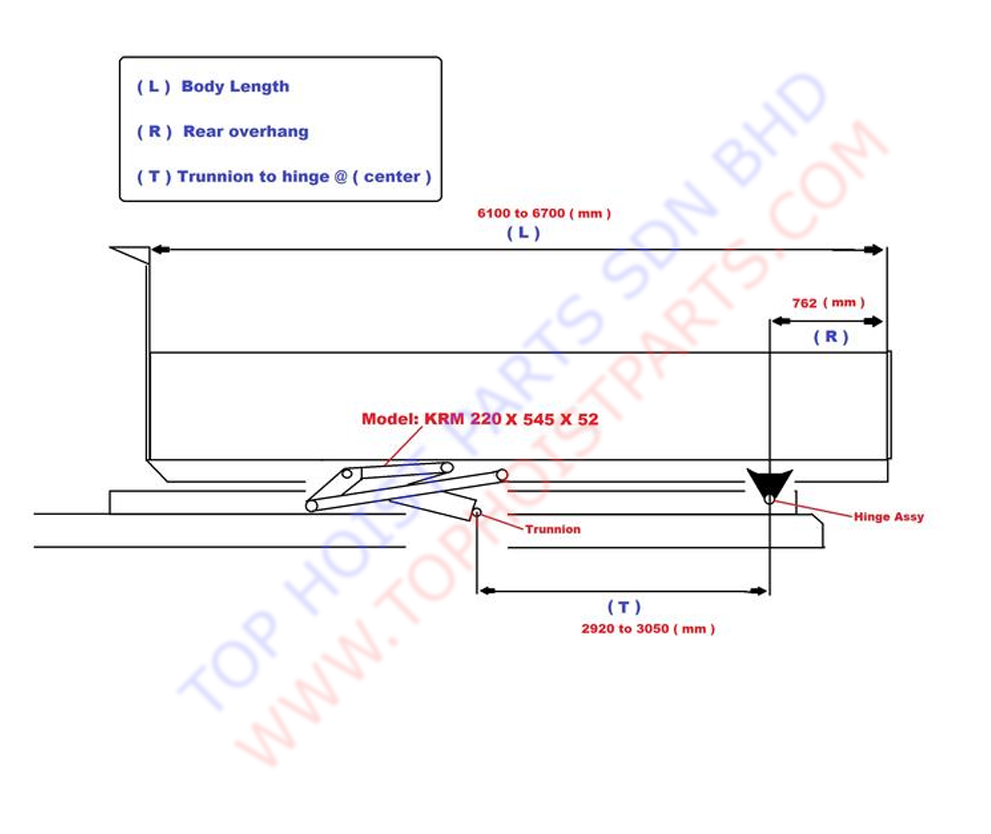

KRM 220 X 545 X 52

BRAND : TOP HOIST
MODEL : KRM 220 X 545 X 52
RECOMMENDED TRUCK G.V.W (KG) : 13000 TO 14000
BODY LENGTH (MM) : 6000 TO 6400
CYLINDER BORE (MM) : 220
PISTON ROD DIAMETER (MM) : 100
STROKE (MM) : 1095
GEAR PUMP : KP 1505 A SERIAL
RATED LIFTING CAPACITY (KG) : 25000 TO 30000
3x Image

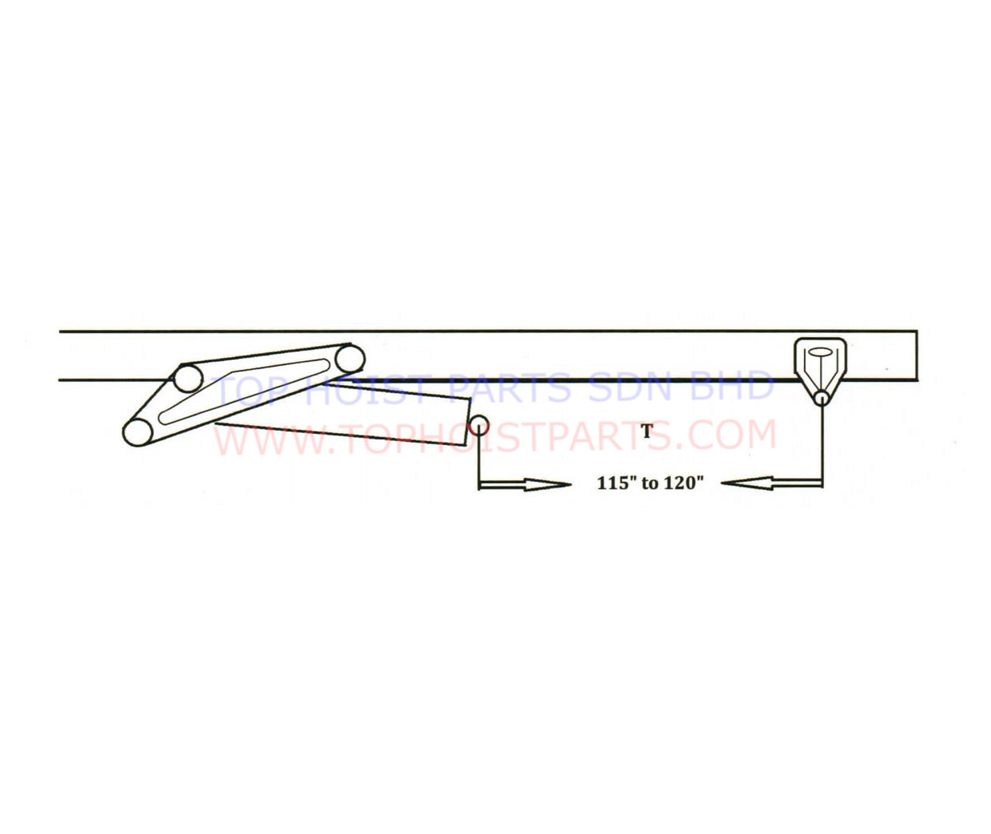

KRM 220 X 570 X 52

BRAND: TOP HOIST
MODEL: KRM 220 X 570 X 52
RECOMMENDED TRUCK G.V.W (KG) : 13000 TO 14000
BODY LENGTH (MM) : 6000 TO 6400
CYLINDER BORE (MM) : 220
PISTON ROD DIAMETER (MM) : 100
STROKE (MM) : 1325
GEAR PUMP : KP 1505 A SERIAL
RATED LIFTING CAPACITY (KG) : 28000 TO 35000
3x Image

KRM 220 X 52 H

BRAND : TOP HOIST
MODEL : KRM 220 X 52 H
RECOMMENDED TRUCK G.V.W (KG) : 13000 TO 14000
BODY LENGTH (MM) : 6000 TO 6400
CYLINDER BORE (MM) : 220
PISTON ROD DIAMETER (MM) : 100
STROKE (MM) : 1095
GEAR PUMP : KP 1505 A SERIAL
RATED LIFTING CAPACITY (KG) : 25000 TO 30000
3x Image

KRM 220 X 545 X 62

BRAND : TOP HOIST
MODEL : KRM 220 X 545 X 62
RECOMMENDED TRUCK G.V.W (KG) : 15000 TO 16000
BODY LENGTH (MM) : 7950 TO 8250
CYLINDER BORE (MM) : 220
PISTON ROD DIAMETER (MM) : 100
STROKE (MM) : 1235
GEAR PUMP : KP 1505 A SERIAL
RATED LIFTING CAPACITY (KG) : 29000 TO 34000
3x Image

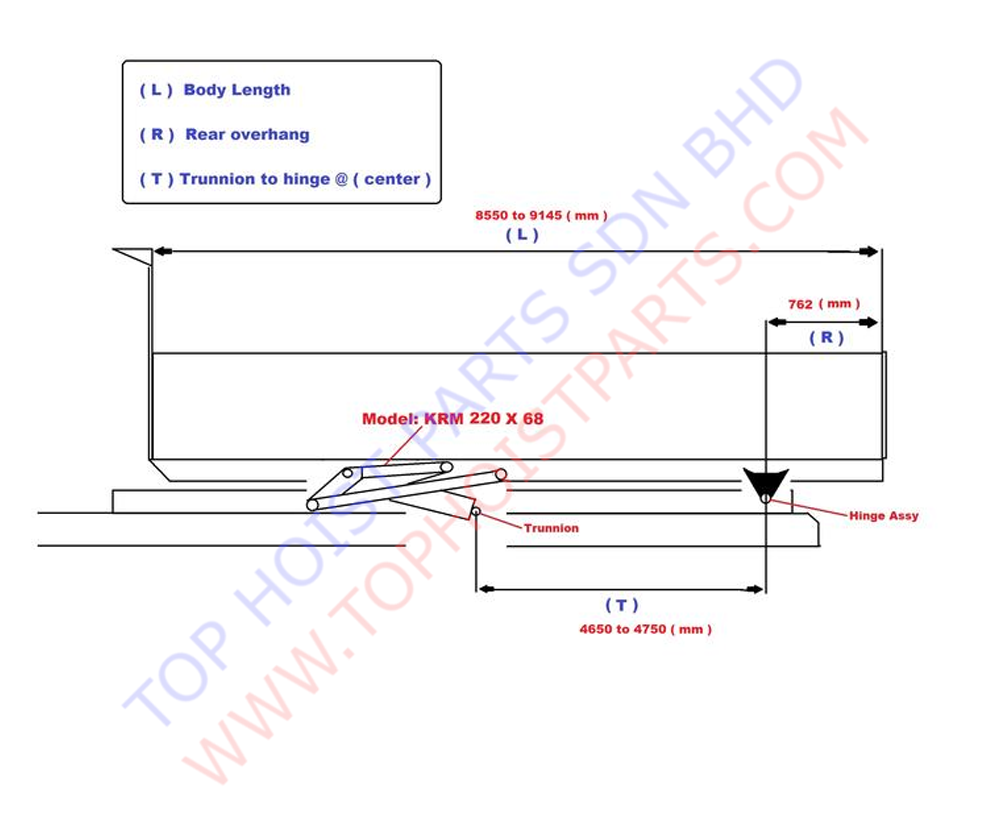

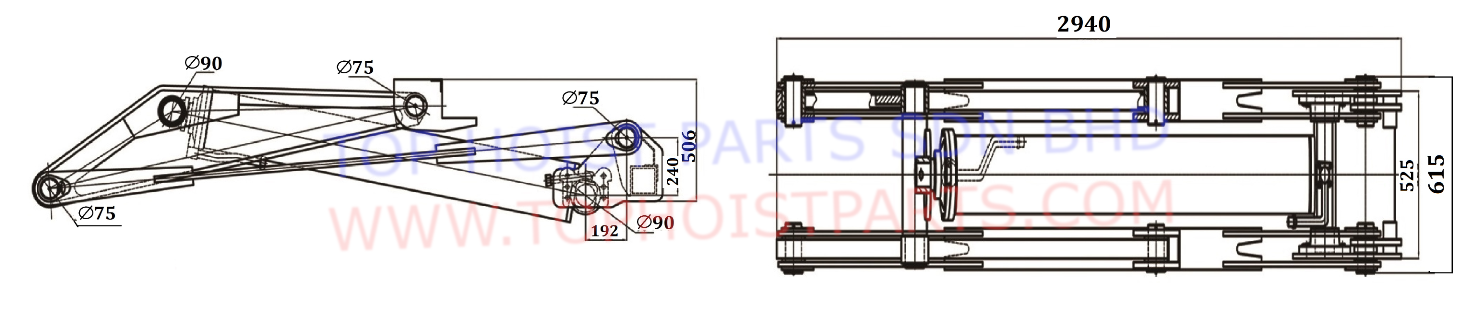

KRM 220 X 68

BRAND : TOP HOIST
MODEL : KRM 220 X 68
RECOMMENDED TRUCK G.V.W (KG) : 16000 TO 17000
BODY LENGTH (MM) : 8550 TO 9150
CYLINDER BORE (MM) : 220
PISTON ROD DIAMETER (MM) : 100
STROKE (MM) : 1550
GEAR PUMP : KP 1505 A SERIAL
RATED LIFTING CAPACITY (KG) : 30000 TO 38000
3x Image

KRM 250 X 68

BRAND : TOP HOIST
MODEL : KRM 250 X 68
RECOMMENDED TRUCK G.V.W (KG) : 16000 TO 17000
BODY LENGTH (MM) : 8550 TO 9150
CYLINDER BORE (MM) : 250
PISTON ROD DIAMETER (MM) : 125
STROKE (MM) : 1620
GEAR PUMP : KP 1505 A SERIAL
RATED LIFTING CAPACITY (KG) : 34000 TO 40000
