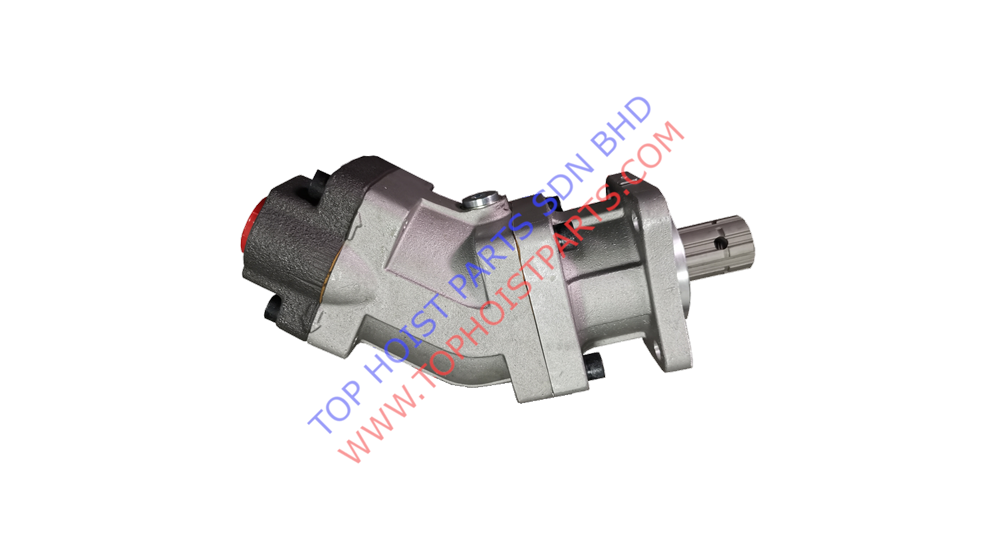

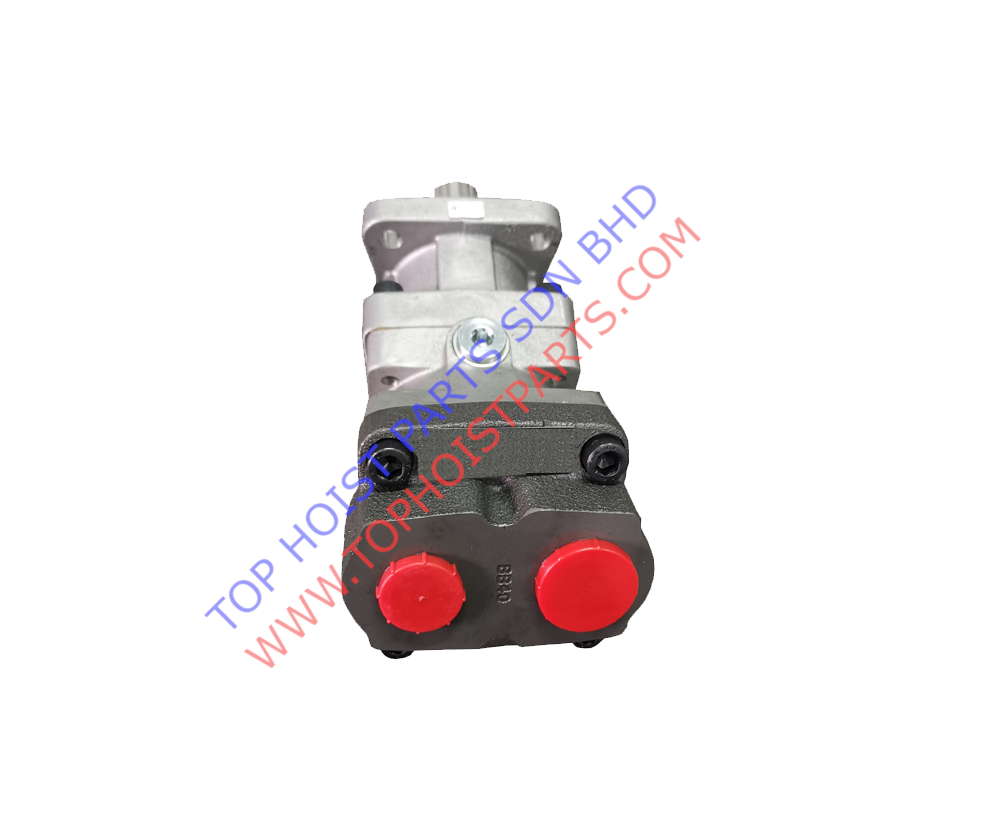

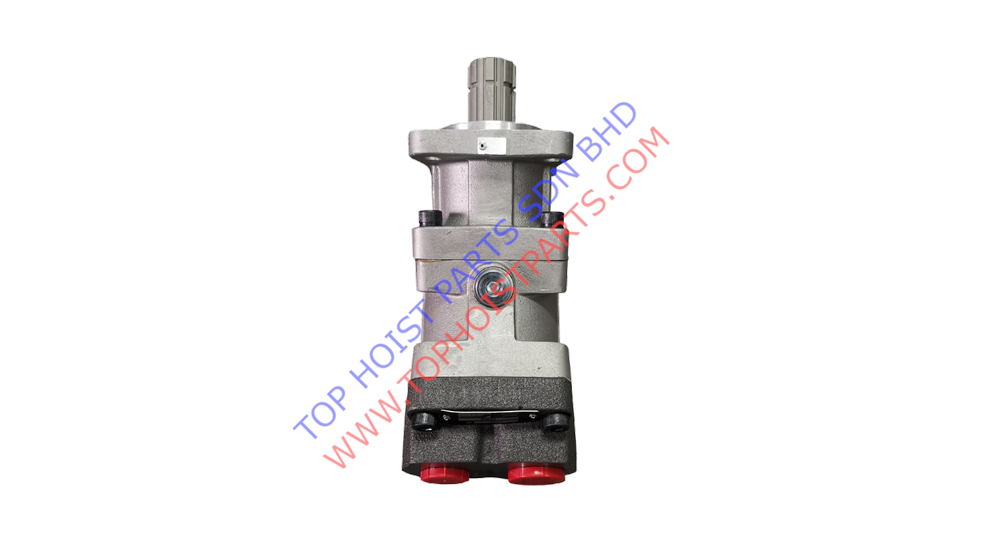

BENT AXIS PISTON ROTARY PUMP 45L (COUNTRY OF ORIGIN - SPAIN)
COUNTRY OF ORIGIN : SPAIN
MODEL : BB 40
FLOW AT 1000 RPM : 45 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 350 BAR
MAX PEAK PRESSURE : 400 BAR
MAX CONTINUOUS SPEED : 1500 RPM
INTERMITTENT SPEED : 2200 RPM
INLET : 1" BSP
OUTLET : 3/4" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
BENT AXIS PISTON ROTARY PUMP 55L (COUNTRY OF ORIGIN - SPAIN)
COUNTRY OF ORIGIN : SPAIN
MODEL : BB 50
FLOW AT 1000 RPM : 55LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 350 BAR
MAX PEAK PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 1500 RPM
INTERMITTENT SPEED : 2200 RPM
INLET : 1" BSP
OUTLET : 3/4" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
BENT AXIS PISTON ROTARY PUMP 63L (COUNTRY OF ORIGIN - SPAIN)
COUNTRY OF ORIGIN : SPAIN
MODEL : BB 60
FLOW AT 1000 RPM : 63 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 350 BAR
MAX PEAK PRESSURE : 380 BAR
MAX CONTINUOUS SPEED : 1500 RPM
INTERMITTENT SPEED : 2200 RPM
INLET : 1" BSP
OUTLET : 3/4" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image

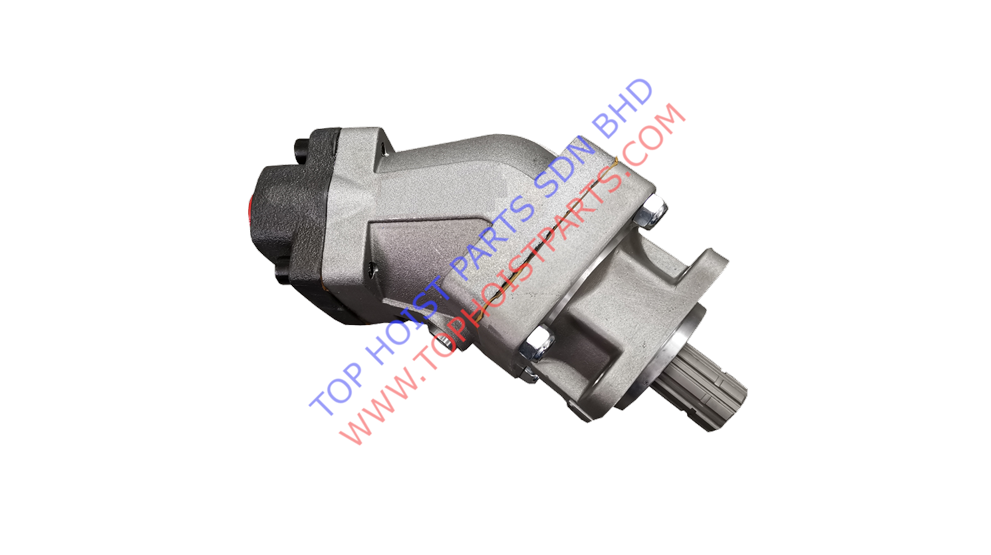

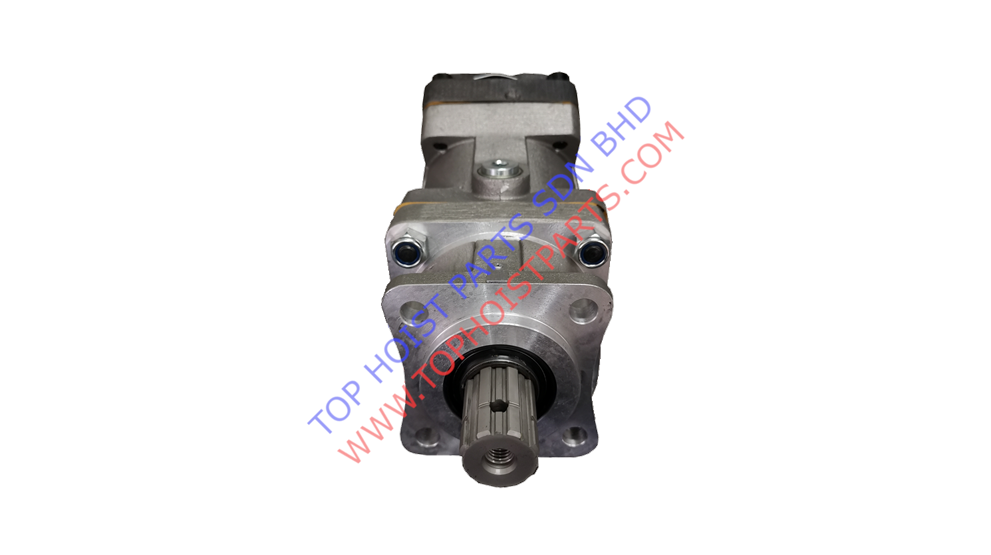

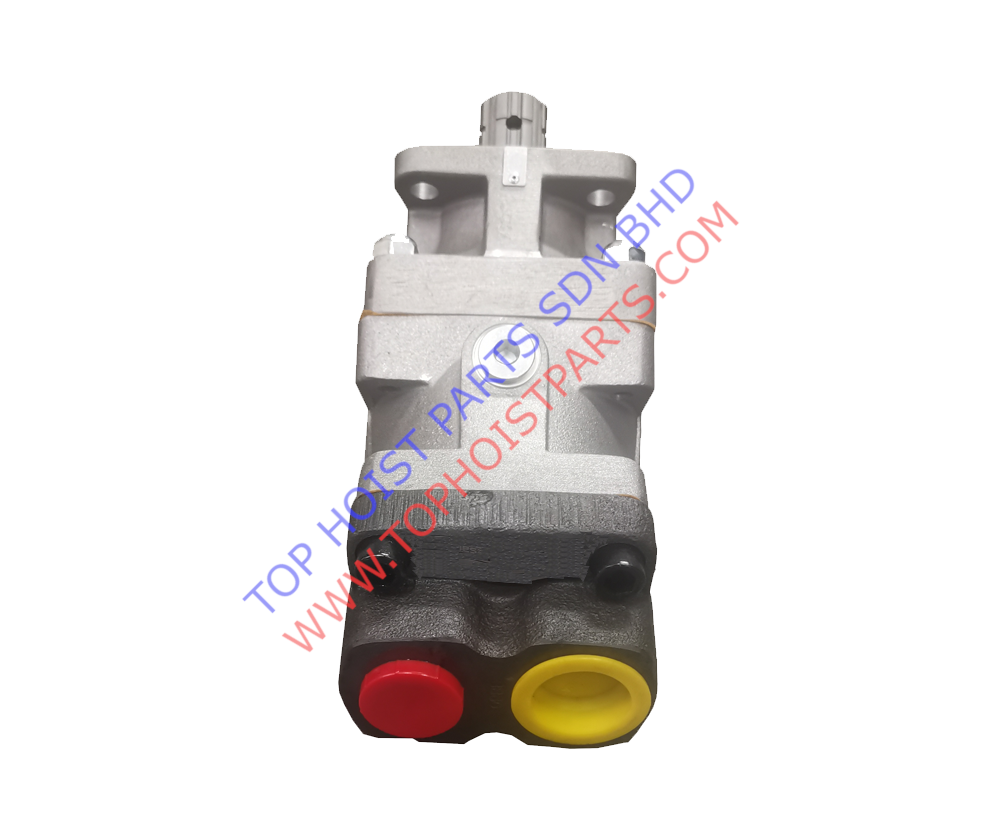

BENT AXIS PISTON ROTARY PUMP 80L (COUNTRY OF ORIGIN - SPAIN)
COUNTRY OF ORIGIN : SPAIN
MODEL : BB 80
FLOW AT 1000 RPM : 80 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 1500 RPM
INTERMITTENT SPEED : 2000 RPM
INLET : 1 1/4" BSP
OUTLET : 1" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
BENT AXIS PISTON ROTARY PUMP 110L (COUNTRY OF ORIGIN - SPAIN)
COUNTRY OF ORIGIN : SPAIN
MODEL : BB 110
FLOW AT 1000 RPM : 110 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 1500 RPM
INTERMITTENT SPEED : 2000 RPM
INLET : 1 1/4" BSP
OUTLET : 1" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
BENT AXIS PISTON ROTARY PUMP 32L (COUNTRY OF ORIGIN : TURKEY)
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2638032
FLOW AT 1000 RPM : 32 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 320 BAR
MAX PEAK PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 2900 RPM
MIN. SPEED : 300 RPM
INLET : G3/4" BSP
OUTLET : G1/2" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
BENT AXIS PISTON ROTARY PUMP 45L (COUNTRY OF ORIGIN : TURKEY)
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2638045
FLOW AT 1000 RPM : 45 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 320 BAR
MAX PEAK PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 2250 RPM
MIN. SPEED : 300 RPM
INLET : G1"
OUTLET : G3/4" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
BENT AXIS PISTON ROTARY PUMP 56L (COUNTRY OF ORIGIN : TURKEY)
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2638055
FLOW AT 1000 RPM : 56 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 320 BAR
MAX PEAK PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 2300 RPM
MIN. SPEED : 300 RPM
INLET : G1"
OUTLET : G3/4" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
BENT AXIS PISTON ROTARY PUMP 65L (COUNTRY OF ORIGIN : TURKEY)
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2638065
FLOW AT 1000 RPM : 65 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 320 BAR
MAX PEAK PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 2300 RPM
MIN. SPEED : 300 RPM
INLET : G1"
OUTLET : G3/4" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
BENT AXIS PISTON ROTARY PUMP 80L (COUNTRY OF ORIGIN : TURKEY)
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2638085
FLOW AT 1000 RPM : 80 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 320 BAR
MAX PEAK PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 2135 RPM
MIN. SPEED : 300 RPM
INLET : G 1 1/4"
OUTLET : G1" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image

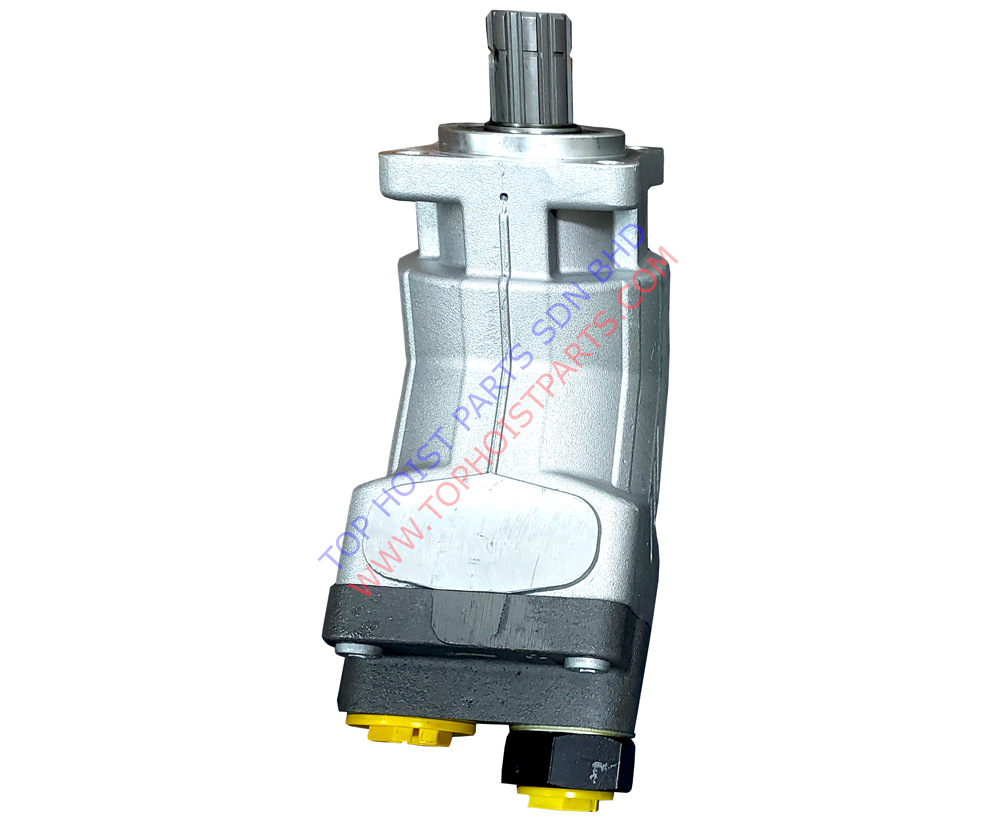

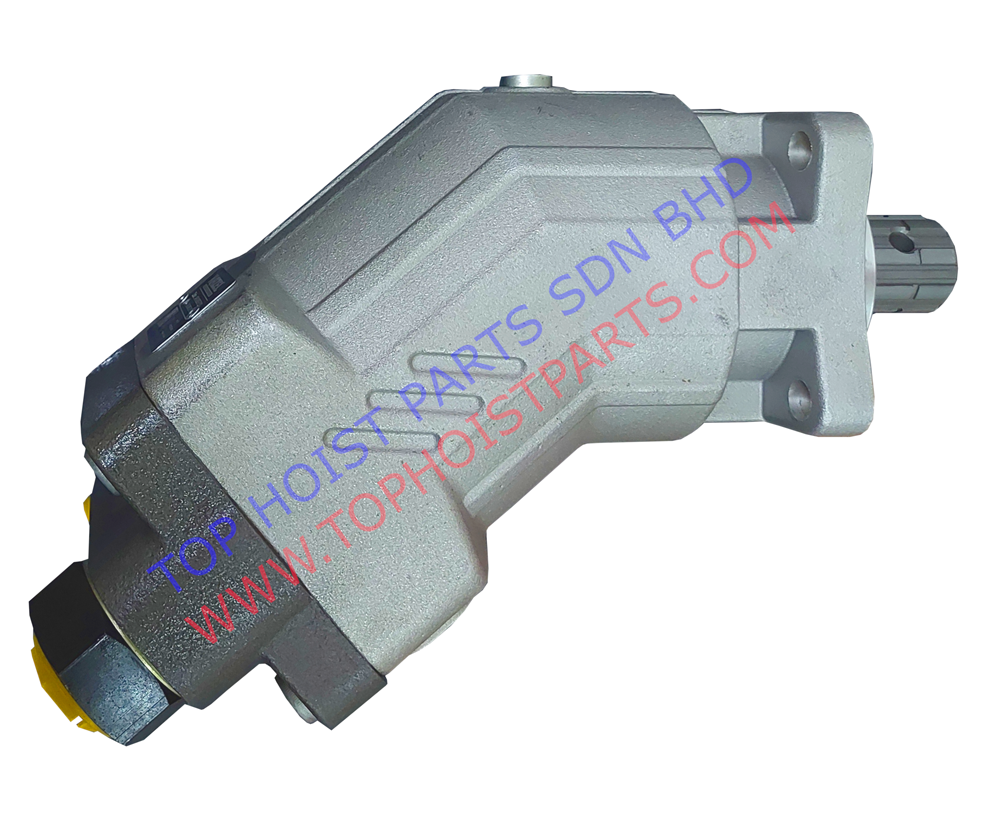

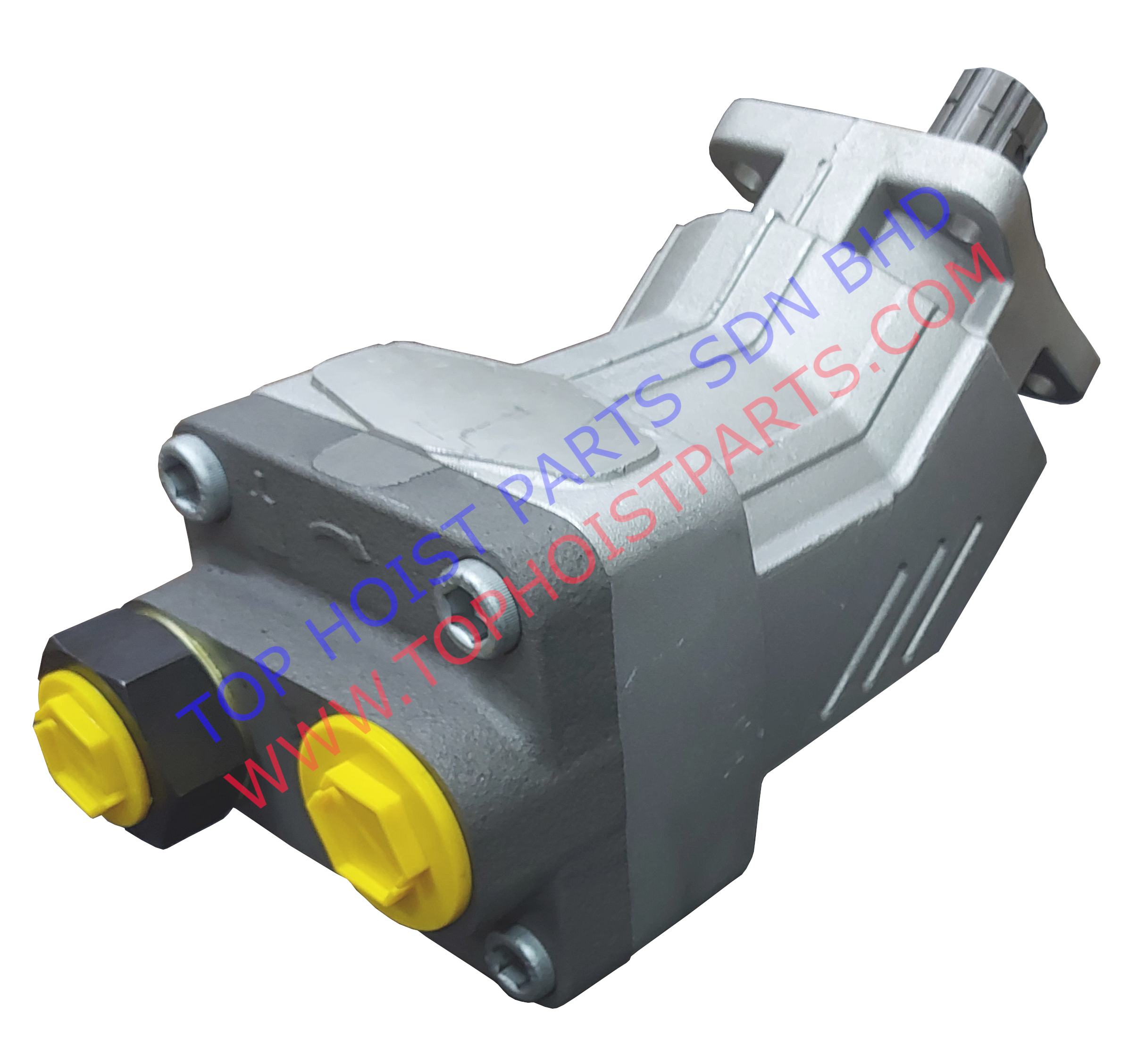

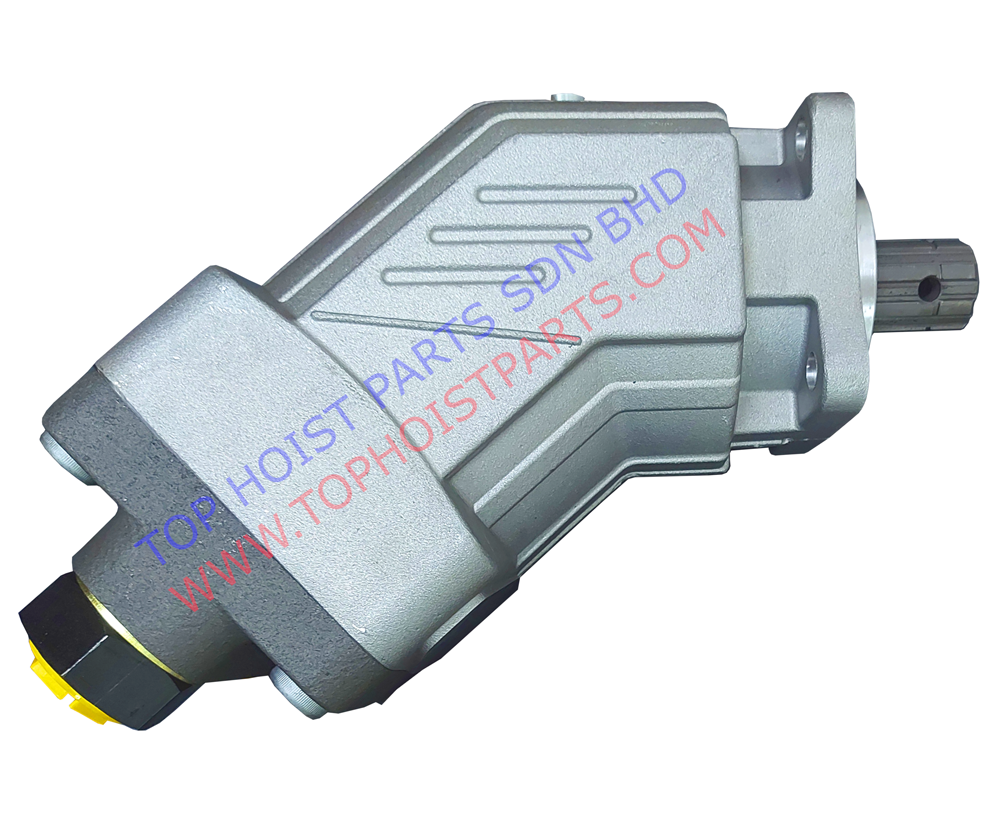

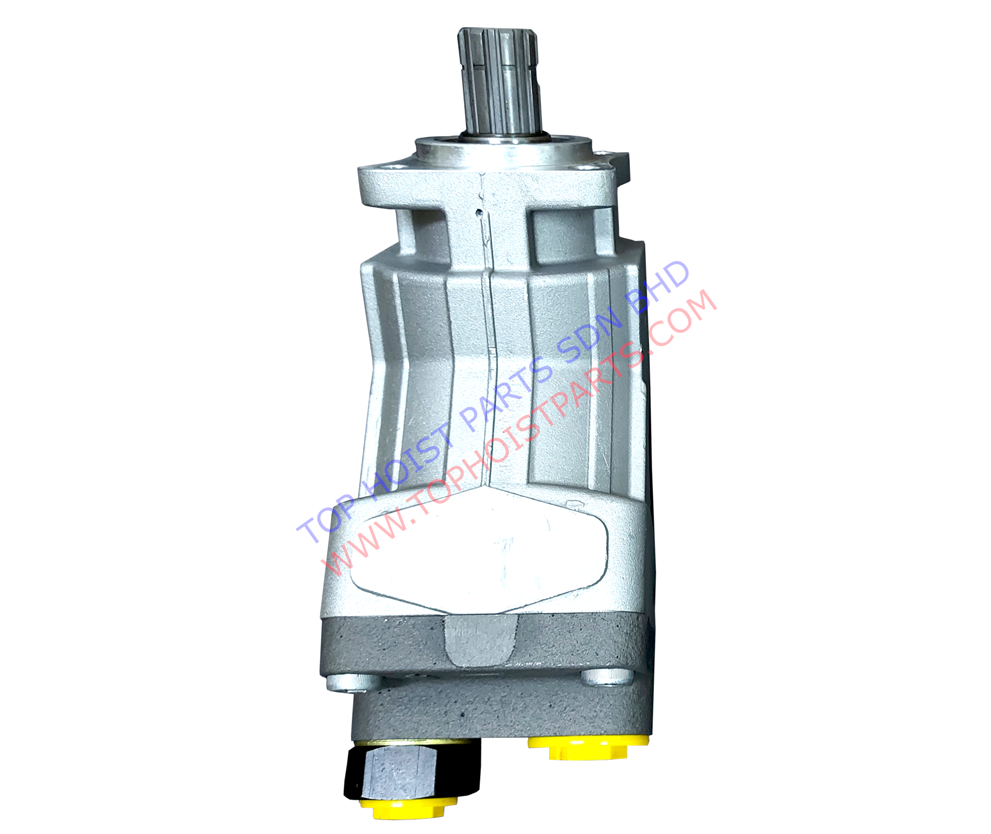

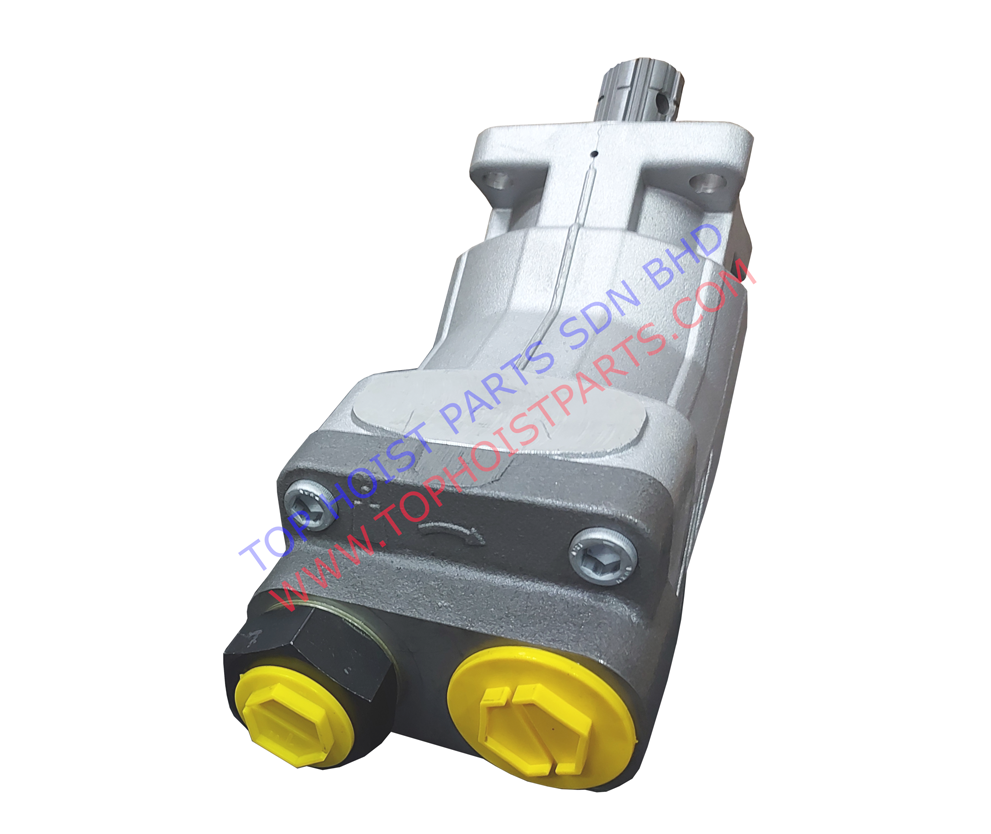

BENT AXIS PISTON ROTARY PUMP 107L (COUNTRY OF ORIGIN : TURKEY)
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2638105
FLOW AT 1000 RPM : 107 LTRS/MIN
MAX CONTINUOUS PRESSURE : 300 BAR
MAX INTERMITTENT PRESSURE : 320 BAR
MAX PEAK PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 1850 RPM
MIN. SPEED : 300 RPM
INLET : G 1 1/4"
OUTLET : G1" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 2x Image
BENT AXIS PISTON ROTARY PUMP 125L (COUNTRY OF ORIGIN : TURKEY)
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2638125
FLOW AT 1000 RPM : 125 LTRS/MIN
MAX CONTINUOUS PRESSURE : 250 BAR
MAX INTERMITTENT PRESSURE : 270 BAR
MAX PEAK PRESSURE : 350 BAR
MAX CONTINUOUS SPEED : 1800 RPM
MIN. SPEED : 300 RPM
INLET : G 1 1/4"
OUTLET : G1" BSP
ROTATION : CW-RIGHT OR CCW-LEFT
