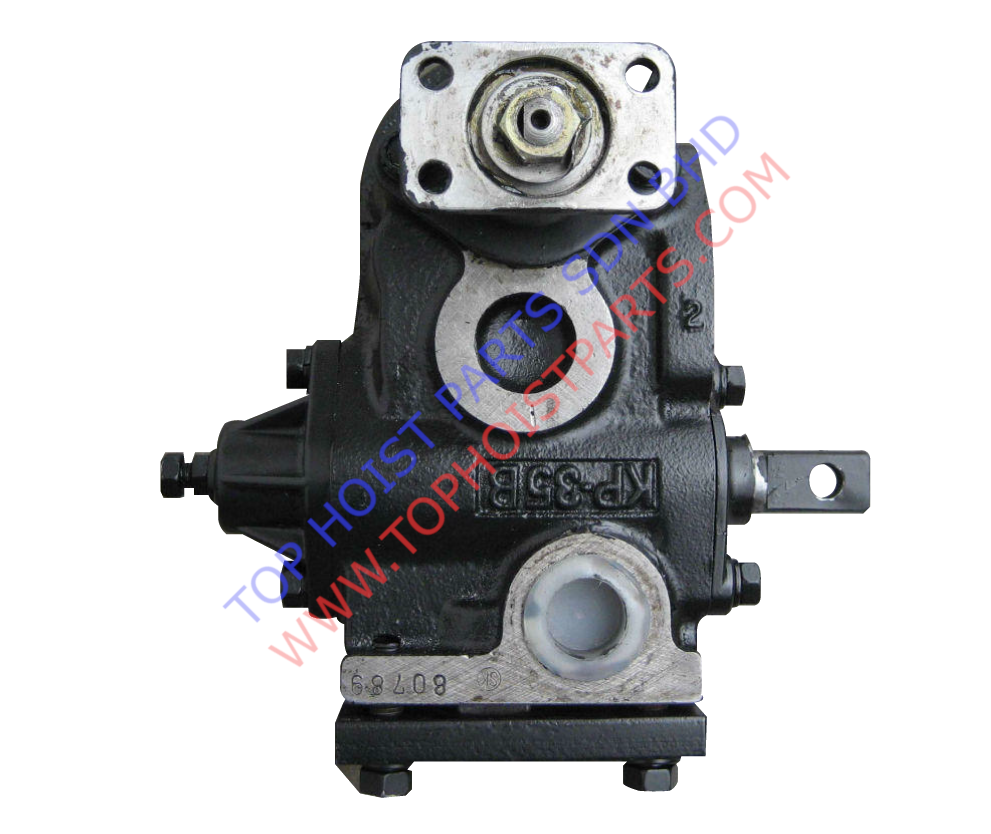

BRAND : TOP HOIST
MODEL : KP35-B
THEORETICAL DISPLACEMENT : 35ML/R
RATED PRESSURE KGF/CM2 : 70
MAX.TESTING PRESSURE KGF/CM2 : 175
MAX RPM : 1800
ROTATION : CCW-LEFT 2x Image

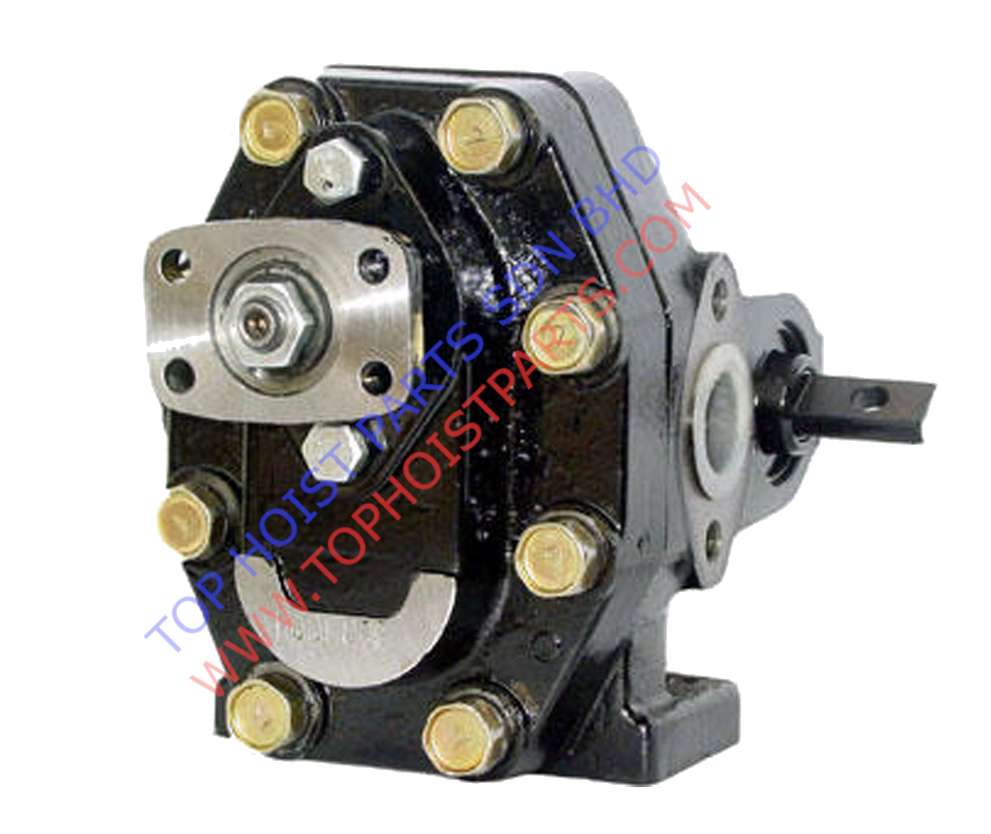

GEAR ROTARY PUMP (KP) SERIES - KP55-A
BRAND : TOP HOIST
MODEL : KP55-A
THEORETICAL DISPLACEMENT : 55ML/R
RATED PRESSURE KGF/CM2 : 70
MAX.TESTING PRESSURE KGF/CM2 : 210
MAX RPM : 1800
ROTATION : CCW-LEFT 3x Image

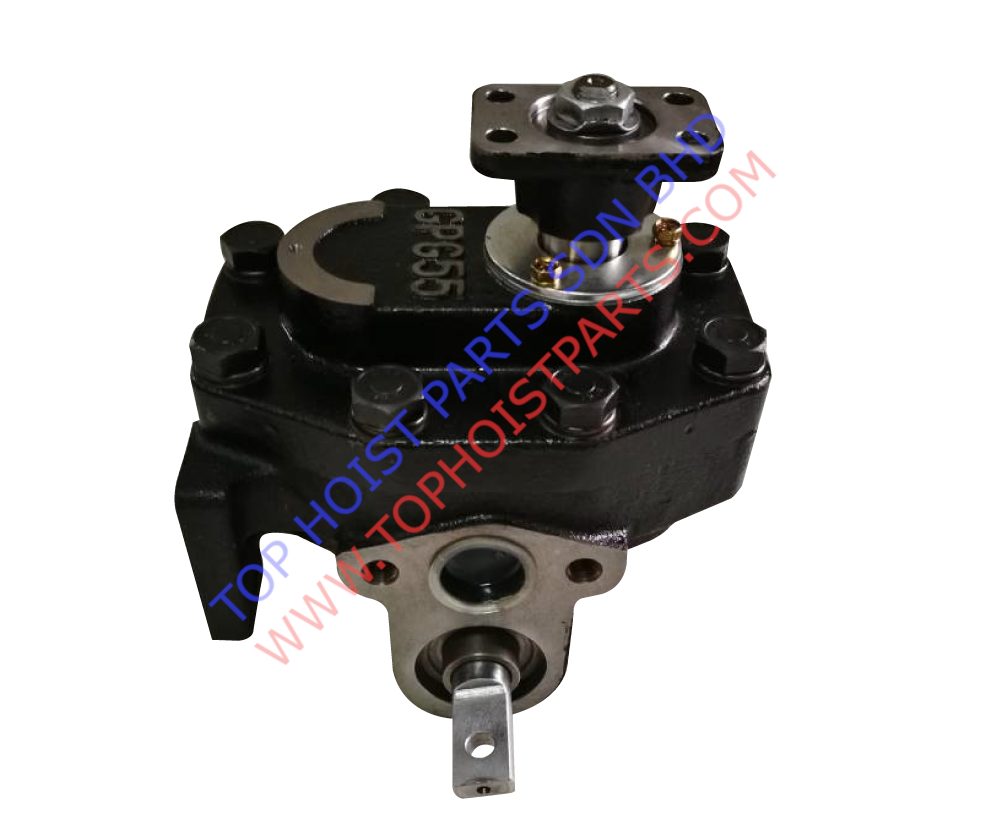

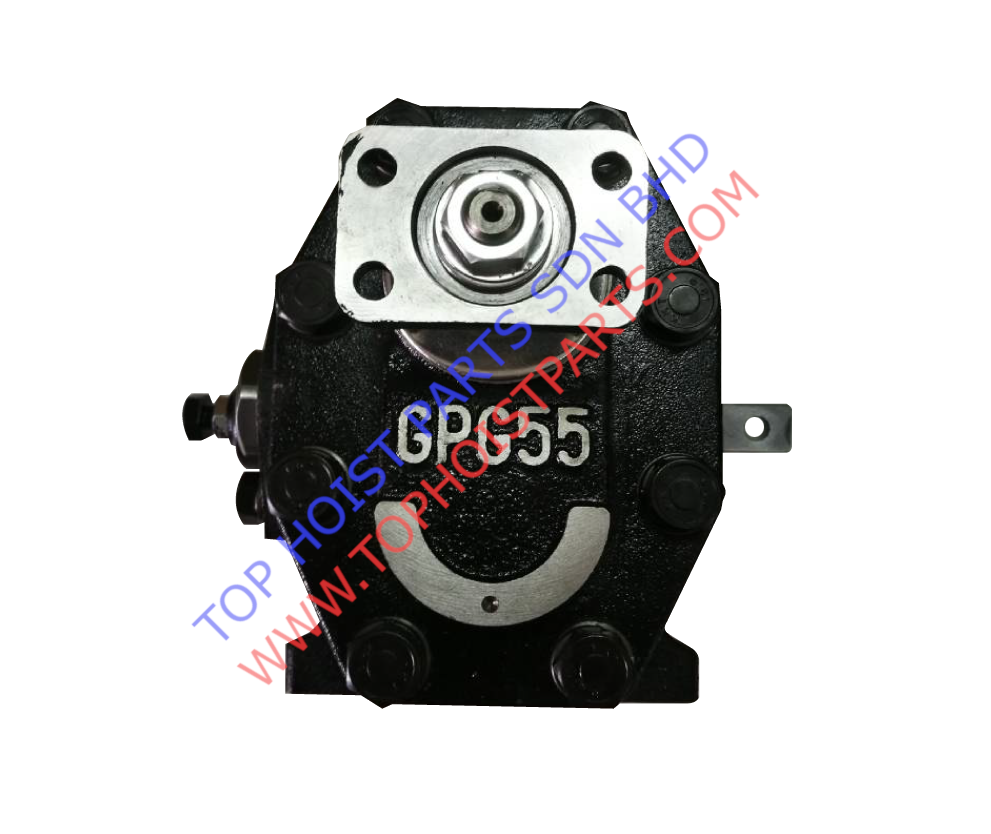

GEAR ROTARY PUMP (GPG) SERIES - GPG 55 (BRAND : MITSUBOSHI - MADE IN JAPAN)
BRAND : MITSUBOSHI - JAPAN
MODEL : GPG 55
DISPLACEMENT CC/REV : 54.2
WORKING PRESSURE kgf/cm2 - (MPA) : 70 (6.8)
SPEED (RPM) : 600 - 1200
ROTATION : CCW - LEFT
WEIGHT (KG) - 14 2x Image

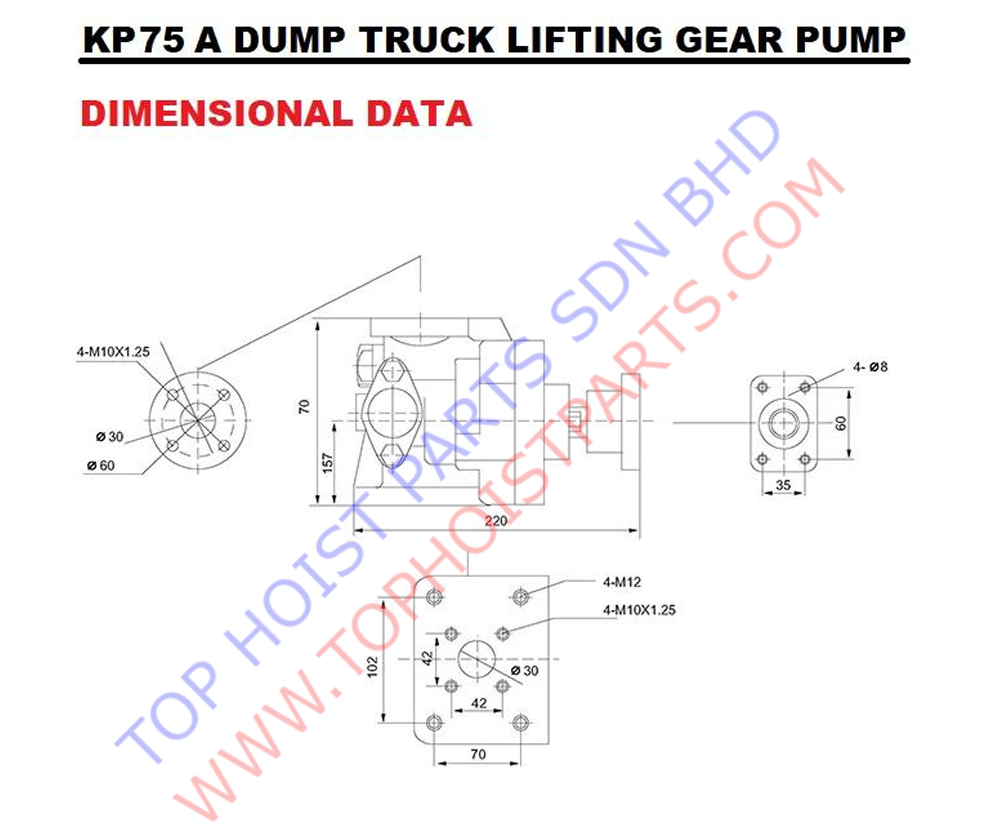

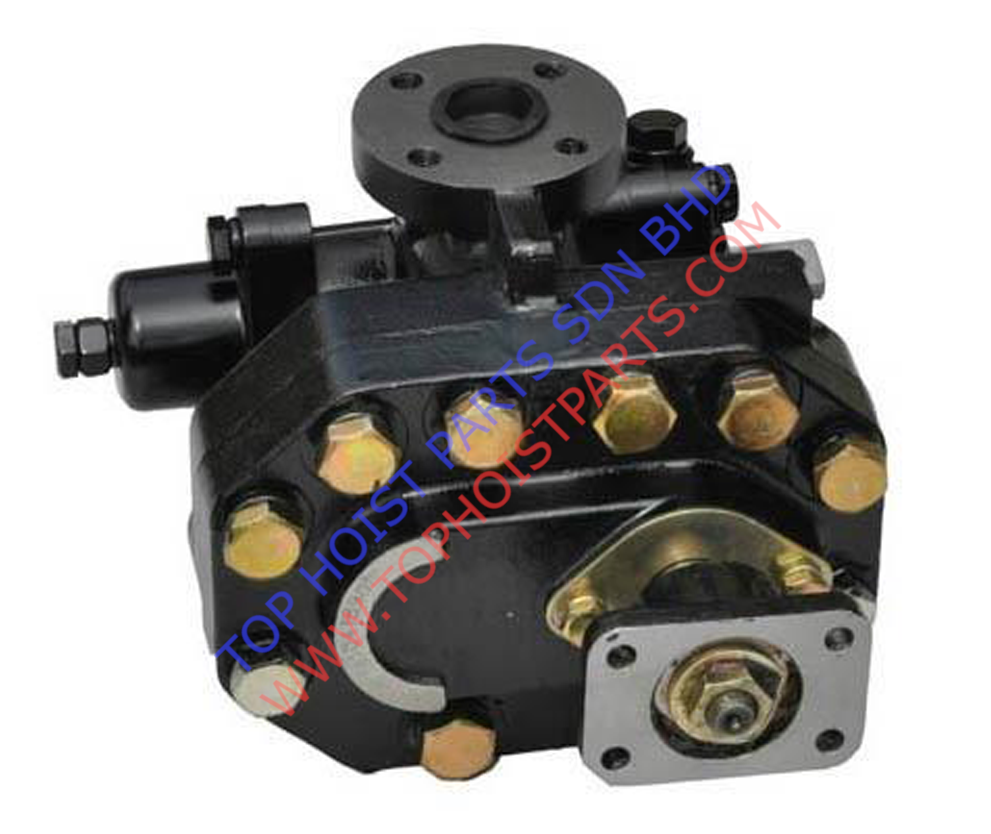

GEAR ROTARY PUMP (KP) SERIES - KP75A OR R
BRAND : TOP HOIST
MODEL : KP75-A
THEORETICAL DISPLACEMENT : 72ML/R
RATED PRESSURE KGF/CM2 : 70
MAX TESTING PRESSURE KGF/CM2 : 210
MAX RPM : 1800
ROTATION : CW-RIGHT OR CCW-LEFT 2x Image

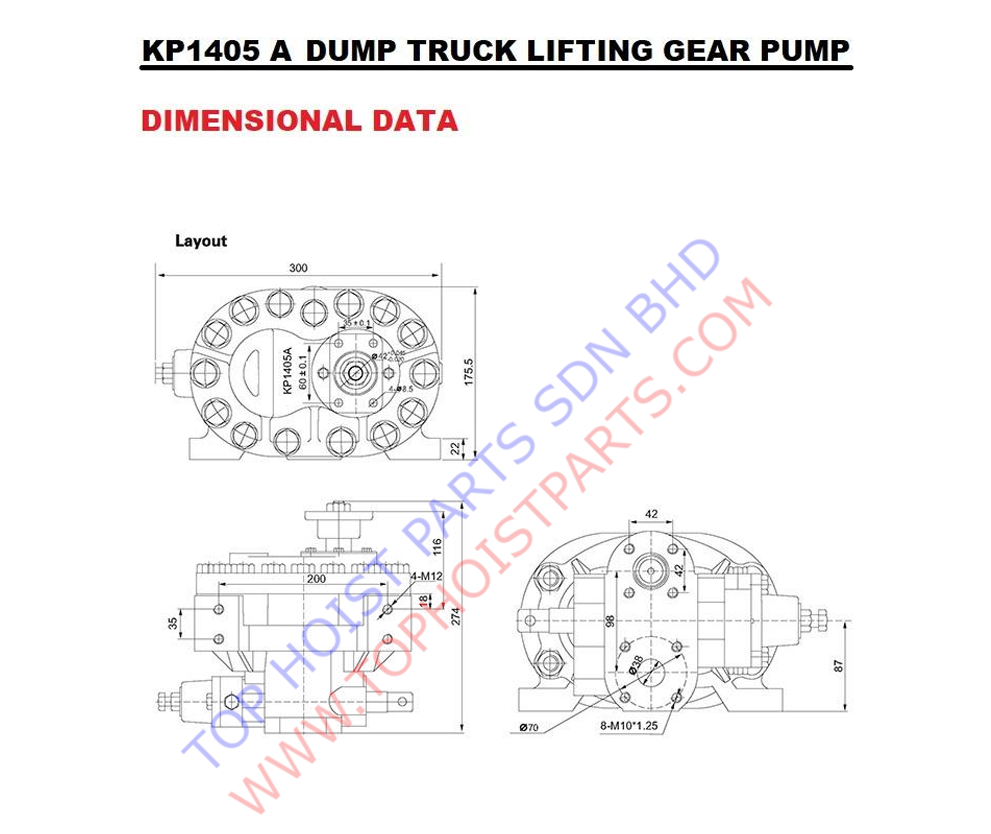

GEAR ROTARY PUMP (KP) SERIES - KP1405-A OR R
BRAND : TOP HOIST
MODEL : KP1405-A
THEORETICAL DISPLACEMENT : 138ML/R
RATED PRESSURE KGF/CM2 : 80
MAX. TESTING PRESSURE KGF/CM2 : 210
MAX RPM : 1800
ROTATION : CW-RIGHT OR CCW-LEFT 2x Image

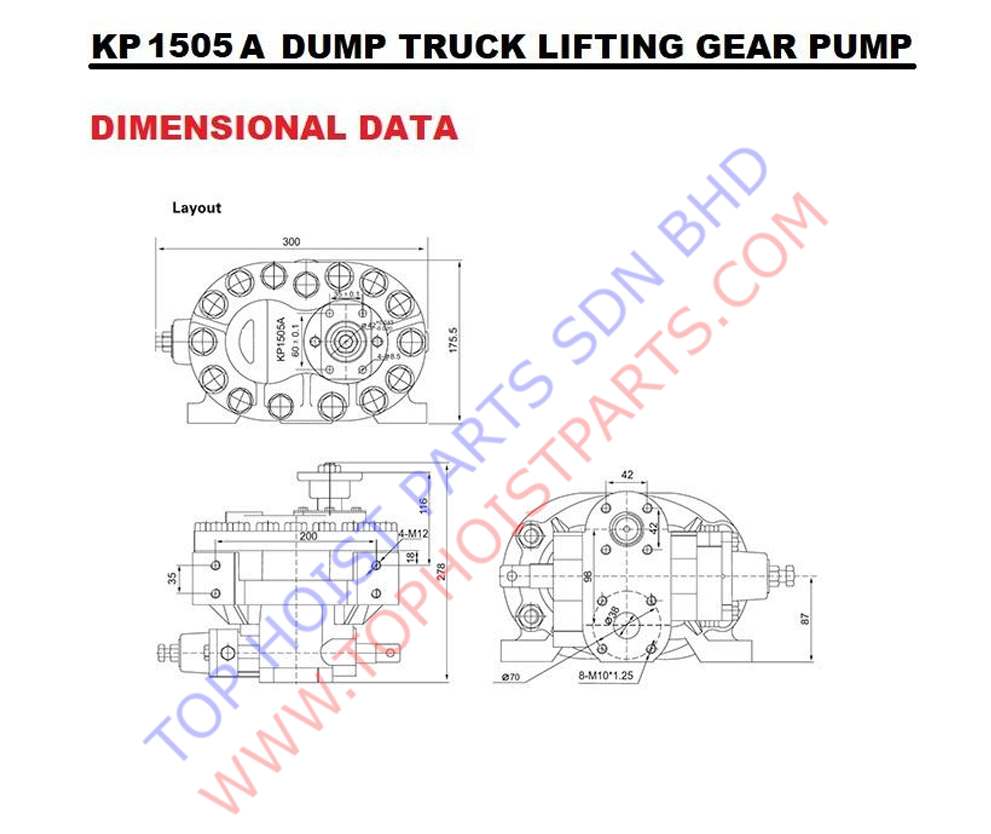

GEAR ROTARY PUMP (KP) SERIES - KP1505-A OR R
BRAND : TOP HOIST
MODEL : KP1505-A
THEORETICAL DISPLACEMENT : 150ML/R
RATED PRESSURE KGF/CM2 : 80
MAX.TESTING PRESSURE KGF/CM2 : 210
MAX RPM : 1800
ROTATION : CW-RIGHT OR CCW-LEFT 2x Image

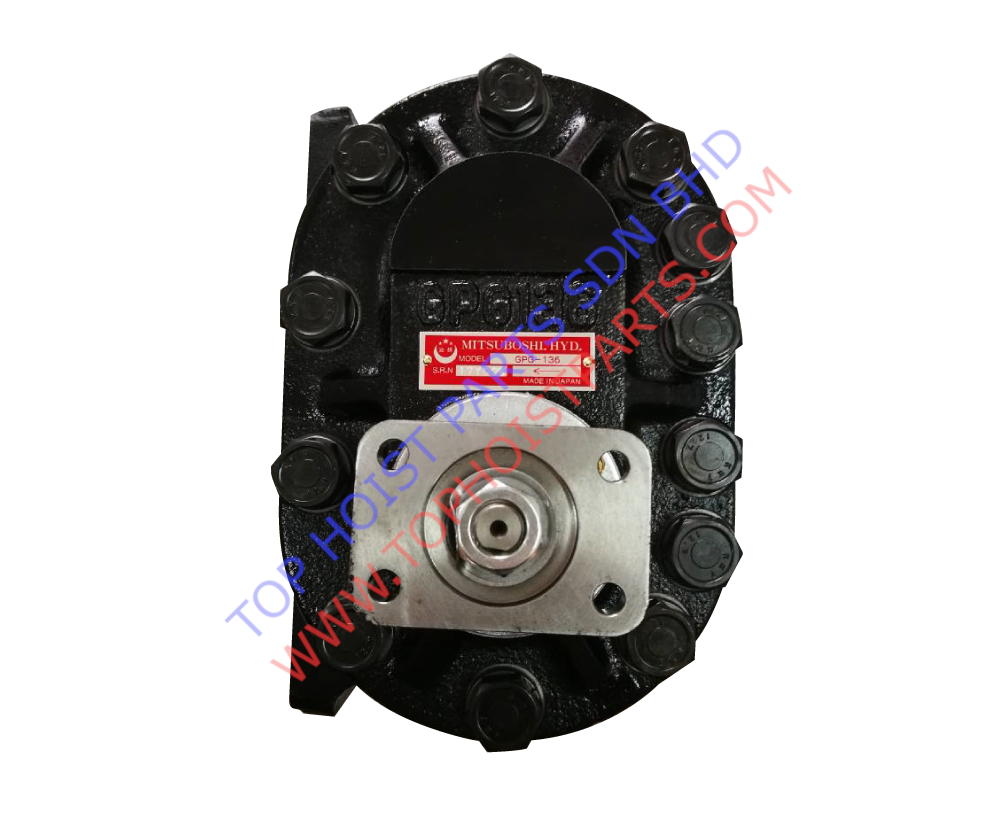

GEAR ROTARY PUMP (GPG) SERIES - GPG 136 (BRAND : MITSUBOSHI - MADE IN JAPAN)
BRAND : MITSUBOSHI - JAPAN
MODEL : GPG 136
DISPALCEMENT CC/REV : 140
WORKING PRESSURE kgf/cm2 - (MPA) : 120 (11.7)
SPEED (RPM) : 600 - 1200
ROTATION : CCW - LEFT
WEIGHT (KG) - 36 2x Image
GEAR ROTARY PUMP 30 SERIES UNI 3 BOLTS 43L ( COUNTRY OF ORIGIN : TURKEY )
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 33366043
FLOW AT 1000 RPM : 43.80 LTRS/MIN
MAX PRESSURE : 280 BAR
MAX SPEED : 2300 RPM
INLET : G 1" BSP
OUTLET : G 1" BSP
ROTATION : BIDIRECTIONAL 3x Image
GEAR ROTARY PUMP 30 SERIES ISO 4 BOLTS 27L ( COUNTRY OF ORIGIN : TURKEY )
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 3070027
FLOW AT 1000 RPM : 27.30 LTRS/MIN
MAX PRESSURE : 300 BAR
MAX SPEED : 2800 RPM
INLET : G 3/4" BSP
OUTLET : G 1/2" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
GEAR ROTARY PUMP 30 SERIES ISO 4 BOLTS 43L ( COUNTRY OF ORIGIN : TURKEY )
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 3070043
FLOW AT 1000 RPM : 43.80 LTRS/MIN
MAX PRESSURE : 280 BAR
MAX SPEED : 2300 RPM
INLET : G 1" BSP
OUTLET : G 3/4" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 3x Image
GEAR ROTARY PUMP 30 SERIES ISO 4 BOLTS 82L ( COUNTRY OF ORIGIN : TURKEY )
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 3070082
FLOW AT 1000 RPM : 82.10 LTRS/MIN
MAX PRESSURE : 200 BAR
MAX SPEED : 1900 RPM
INLET : G 1 1/4"
OUTLET : G 1"
ROTATION : CW-RIGHT OR CCW-LEFT 2x Image2x Image
GEAR ROTARY PUMP 40 SERIES ISO 4 BOLTS 63L ( COUNTRY OF ORIGIN : TURKEY )
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2626063
FLOW AT 1000 RPM : 63.20 LTRS/MIN
MAX PRESSURE : 275 BAR
MAX SPEED : 2600 RPM
INLET : G 1" BSP
OUTLET : G 3/4" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 2x Image
GEAR ROTARY PUMP 40 SERIES ISO 4 BOLTS 87L ( COUNTRY OF ORIGIN : TURKEY )
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2626087
FLOW AT 1000 RPM : 87.20 LTRS/MIN
MAX WORK PRESSURE : 260 BAR
MAX SPEED : 2600 RPM
INLET : G 1 1/4" BSP
OUTLET : G 1" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 2x Image
GEAR ROTARY PUMP 40 SERIES ISO 4 BOLTS 109L ( COUNTRY OF ORIGIN : TURKEY )
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2626109
FLOW AT 1000 RPM : 109 LTRS/MIN
MAX WORK PRESSURE : 235 BAR
MAX SPEED : 2600 RPM
INLET : G 1 1/4" BSP
OUTLET : G 1" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 2x Image
GEAR ROTARY PUMP 40 SERIES ISO 4 BOLTS 133L ( COUNTRY OF ORIGIN : TURKEY )
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2626133
FLOW AT 1000 RPM : 133 LTRS/MIN
MAX CONTINUOUS PRESSURE: 230 BAR
MAX PEAK PRESSURE : 270 BAR
MAX INTERMITTENT SPEED : 2500 RPM
INLET : G 1 1/4" BSP
OUTLET : G 1" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 2x Image
GEAR ROTARY PUMP 40 SERIES ISO 4 BOLTS 151L ( COUNTRY OF ORIGIN : TURKEY )
COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 2626151
FLOW AT 1000 RPM : 151 LTRS/MIN
MAX CONTINUOUS PRESSURE: 190 BAR
MAX PEAK PRESSURE : 230 BAR
MAX INTERMITTENT SPEED : 2500 RPM
INLET : G 1 1/4" BSP
OUTLET : G 1" BSP
ROTATION : CW-RIGHT OR CCW-LEFT 1x Image
GEAR ROTARY PUMP ISO 4 BOLT 60L ( COUNTRY OF ORIGIN : CHINA)
BRAND: TOP HOIST
MODEL: HVL 60L
FLOW @ 1000 RPM: 60 LTRS/MIN
MAX PRESSURE (PSI): 210
OPTUIMUM SPEED (RPM): 250
MAX SPEED (RPM): 2500
INLET: G 1/4" BSP
OUTLET: G 1/4" BSP
ROTATION: BI-DIRECTION 1x Image
GEAR ROTARY PUMP ISO 4 BOLT 80L ( COUNTRY OF ORIGIN : CHINA)
BRAND: TOP HOIST
MODEL: HVL 80L
FLOW @ 1000 RPM: 80 LTRS/MIN
MAX PRESSURE (PSI): 210
OPTUIMUM SPEED (RPM): 250
MAX SPEED (RPM): 2500
INLET: G 1/4" BSP
OUTLET: G 1/4" BSP
ROTATION: BI-DIRECTION 2x Image

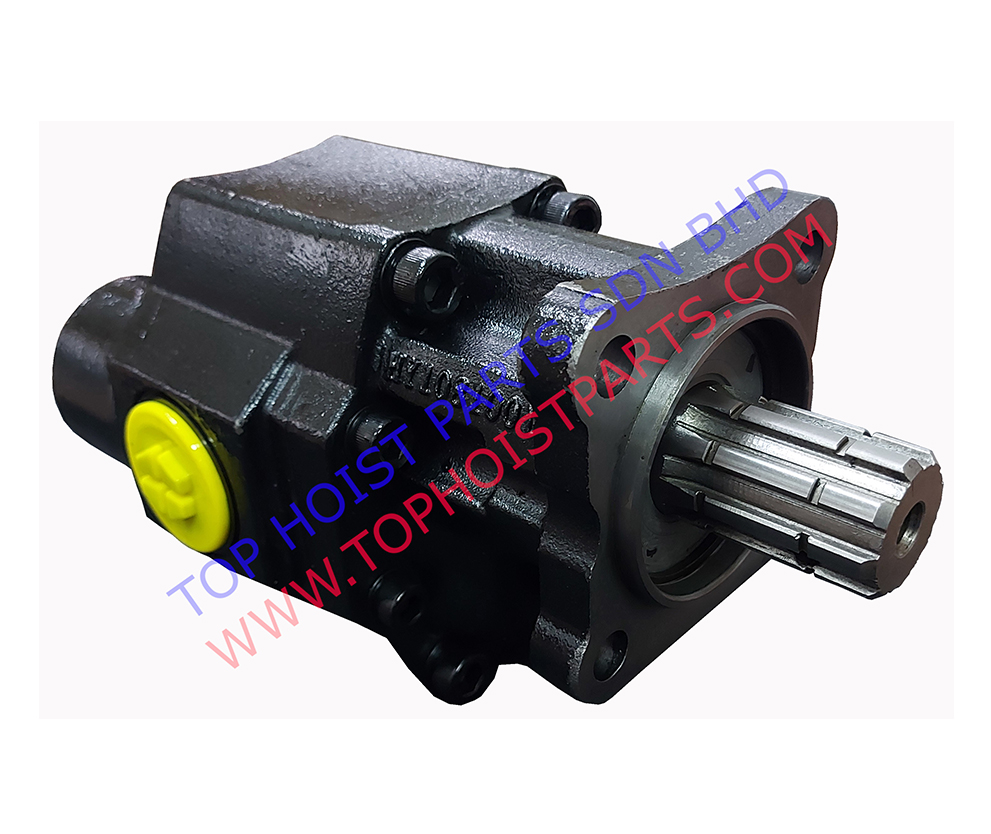

GEAR ROTARY PUMP ISO 4 BOLT 100L ( COUNTRY OF ORIGIN : CHINA )
PRODUCT CODE : HVT100L
FLOW AT 1000 RPM : 100 LTRS/MIN
MAX CONTINUOUS PRESSURE: 210 BAR
MAX PEAK PRESSURE : 250 BAR
MAX INTERMITTENT SPEED : 2500 RPM
INLET : G 1 1/4" BSP
OUTLET : G 1 1/4" BSP
ROTATION : BI-DIRECTION 3x Image

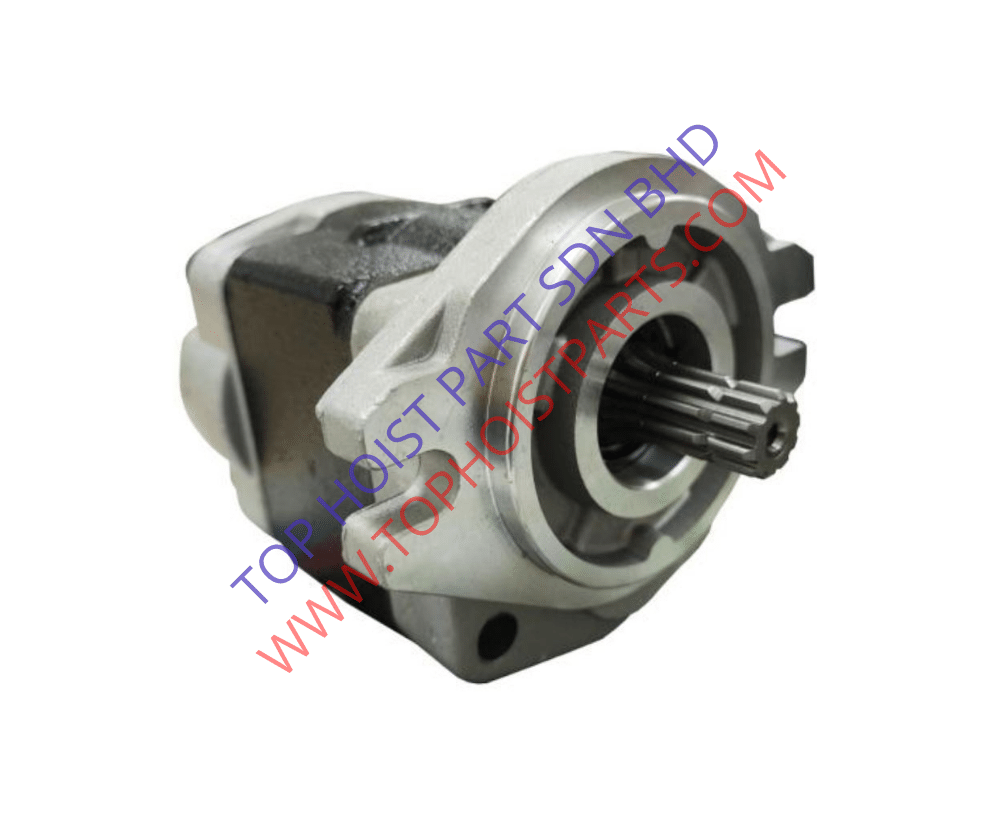

GEAR ROTARY PUMP 36L 2 BOLT SAE J498A SHAFT 10T
BRAND: TOP HOIST
MODEL: 888036-S
FLOW @ 1000 RPM: 36 LTRS/MIN
MAX PRESSURE (PSI): 3600
OPTIMUM SPEED (RPM): 1500 TO 2500
MAX SPEED (RPM): 3000
INLET: G 1"
OUTLET: G 1/2"
ROTATION: CW-RIGHT OR CCW-LEFT
3x Image
GEAR ROTARY PUMP 36L 2 BOLT DIN 6885 KEYED SHAFT
BRAND: TOP HOIST
MODEL: 888036-K
FLOW @ 1000 RPM: 36 LTRS/MIN
MAX PRESSURE (PSI): 3600
OPTIMUM SPEED (RPM): 1500 TO 2500
MAX SPEED (RPM): 3000
INLET: G 1"
OUTLET: G 1/2"
ROTATION: CW-RIGHT OR CCW-LEFT
3x Image

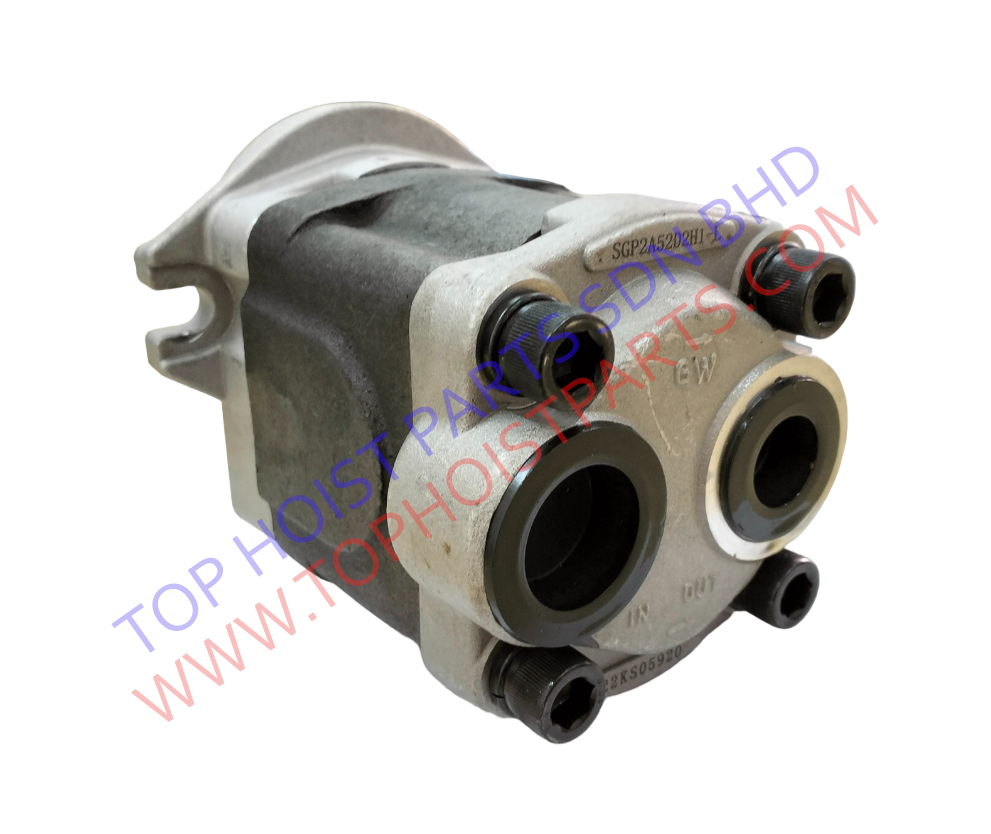

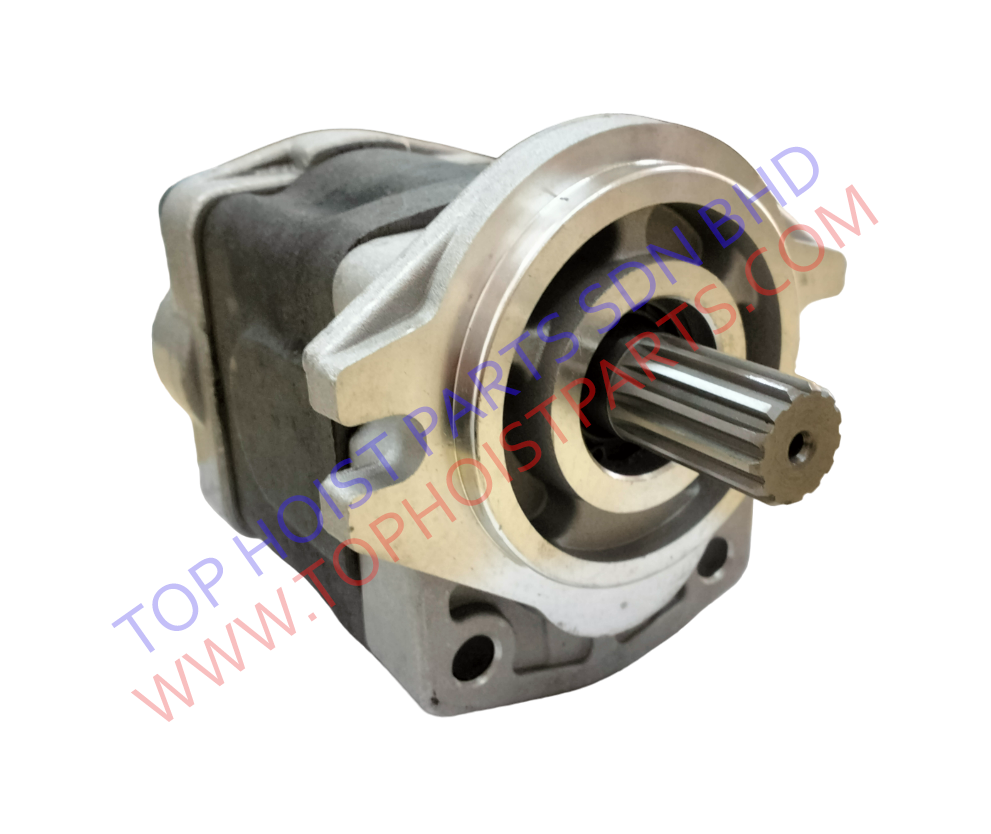

GEAR ROTARY PUMP 52L 2 BOLT SAE J498A SHAFT 13T
BRAND: TOP HOIST
MODEL: 888052-S
FLOW @ 1000 RPM: 52 LTRS/MIN
MAX PRESSURE (PSI): 3600
OPTUIMUM SPEED (RPM): 1500-2500
MAX SPEED (RPM): 3000
INLET: G 1"
OUTLET: G 1/2"
ROTATION: CW-RIGHT OR CCW-LEFT
