Hydraulic Winch

2x Image

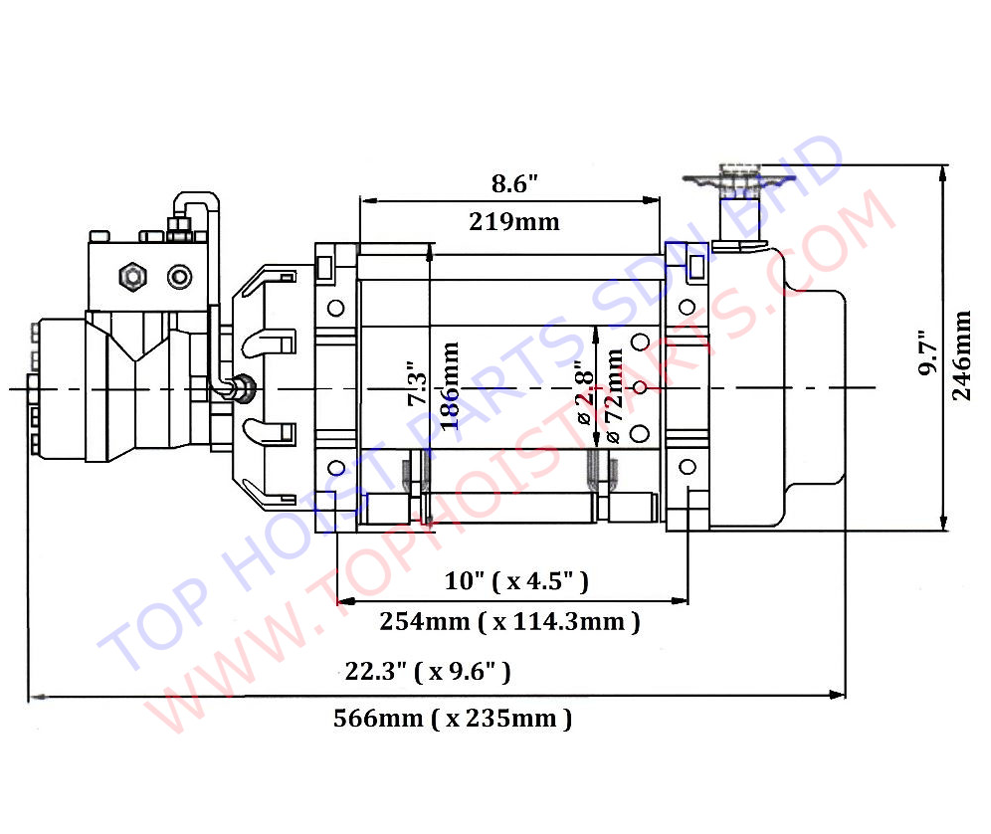

HYDRAULIC WINCH 11000-I

BRAND: TOP HOIST
MODEL: 11000-I
RATED LINE PULL: 11000LBS/4989KG
MOTOR DISPLACEMENT: 65ML/R
OIL FLOW: 15-45L/MIN
PRESSURE: 12.5 MPA
GEAR REDUCTION RATIO: 25.5:1
CABLE SIZE (DIA. X L): Ø 10.2MM X 25.5M
DRUM SIZE (DIA. X L): Ø 72MM X 219MM
2x Image

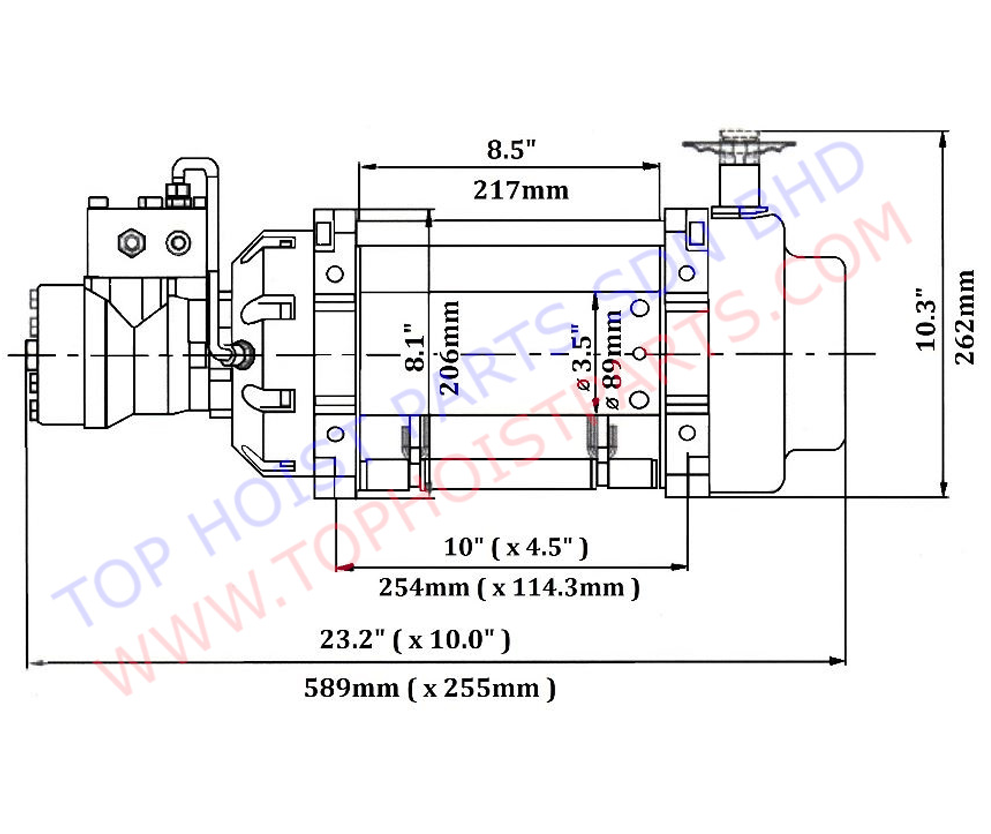

HYDRAULIC WINCH 15000-I

BRAND: TOP HOIST
MODEL: 15000-I
RATED LINE PULL: 15000LBS/6804KG
MOTOR DISPLACEMENT: 80ML/R
OIL FLOW: 5-60L/MIN
PRESSURE: 13 MPA
GEAR REDUCTION RATIO: 33.4:1
CABLE SIZE (DIA. X L): Ø 12MM X 26.5M
DRUM SIZE (DIA. X L): Ø 89MM X 217MM
