VOLVO

2x Image

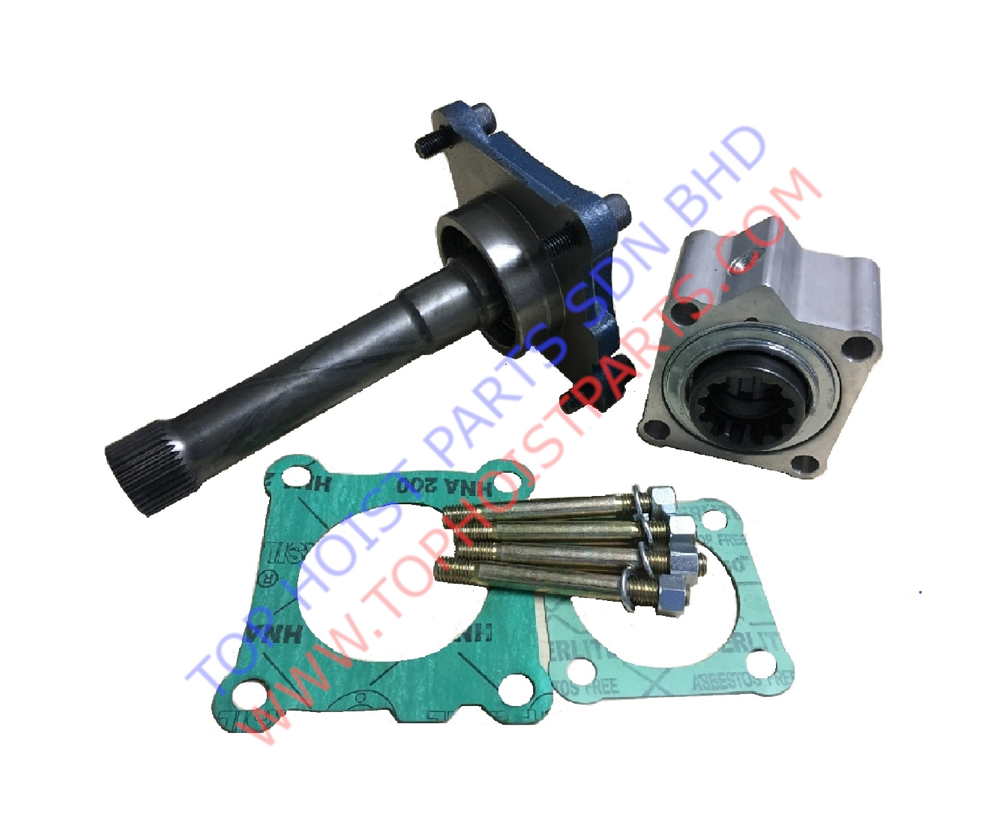

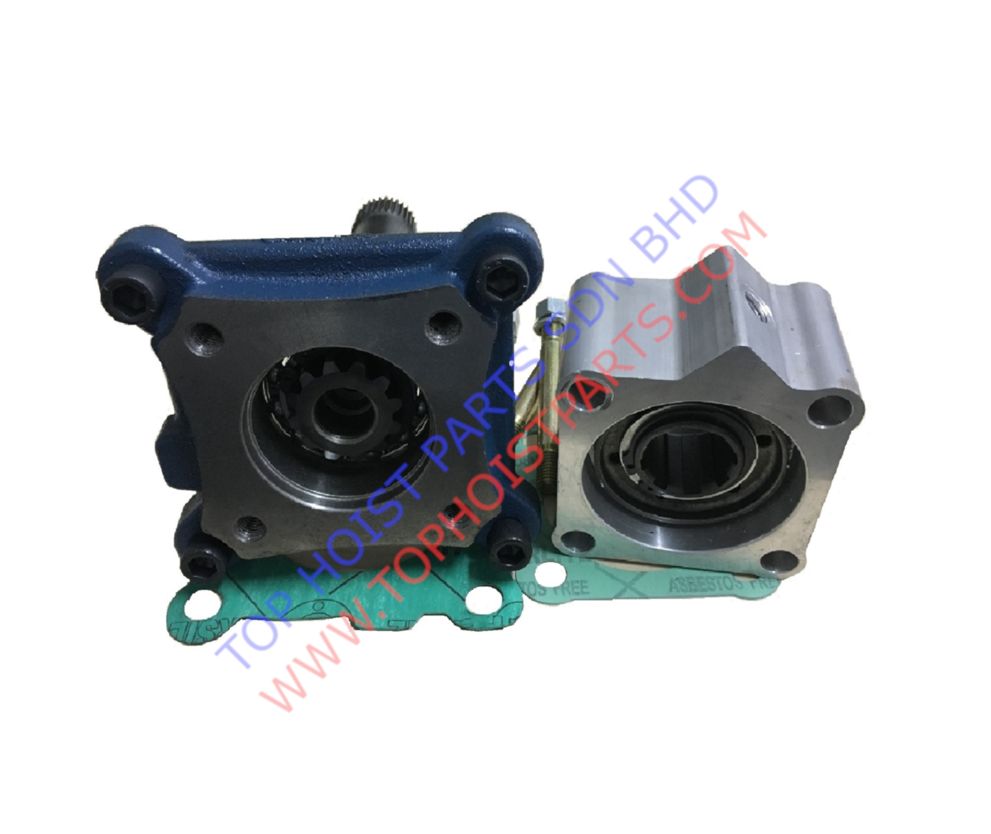

SINGLE ROTARY GEAR 32 X 12 X 8 WITH CARDAN SHAFT 238MM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 24602
GEARBOX MODEL : SR 1400/1700/1900/2000/2400
PNEUMATIC OPERATING PRESSURE (BAR): 7-12
CONTROL : PNEUMATIC
OUTPUT TORQUE : 57KGM/230NM
POWER(KW) @ 1000 RPM : 35HP/25.7KW
OUTPUT SPEED (RPM): 500
RATIO : 1:1
ROTATION : CLOCKWISE (RIGHT)
2x Image

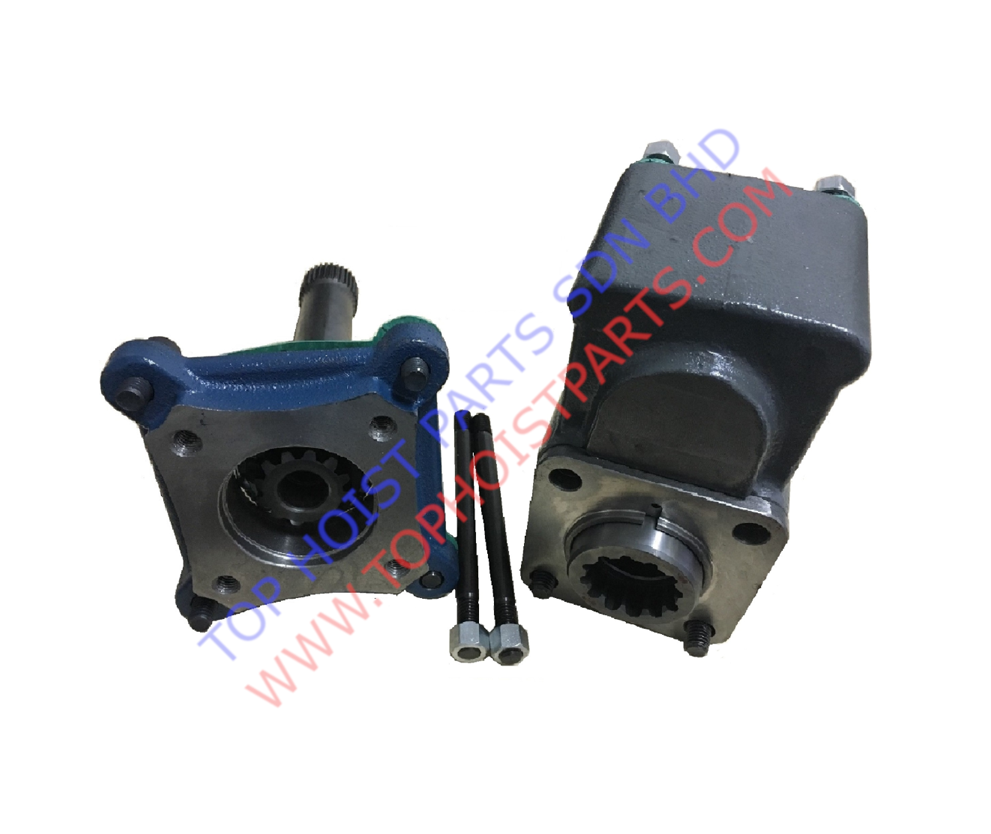

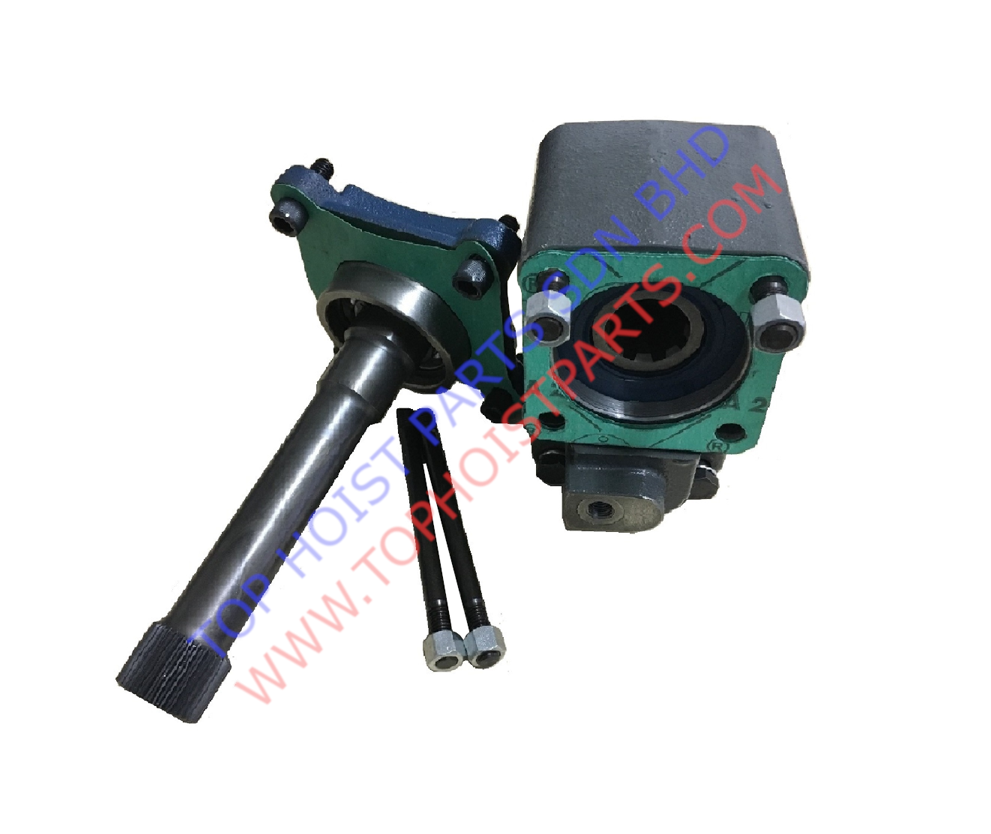

DOUBLE ROTARY GEAR 32 X 12 X 8 WITH CARDAN SHAFT 238MM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 24603
GEARBOX MODEL : SR 1400/1700/1900/2000/2400
INLET OPERATING PRESSURE (BAR) : 7-12
CONTROL : PNEUMATIC
OUTPUT TORQUE : 29KGM/284NM POWER @ 1000 RPM : 28.2HP/20.7KW
OUTPUT SPEED @ 1000 RPM:700
RATIO : 1.19
ROTATION : COUNTER CLOCKWISE (LEFT)
3x Image

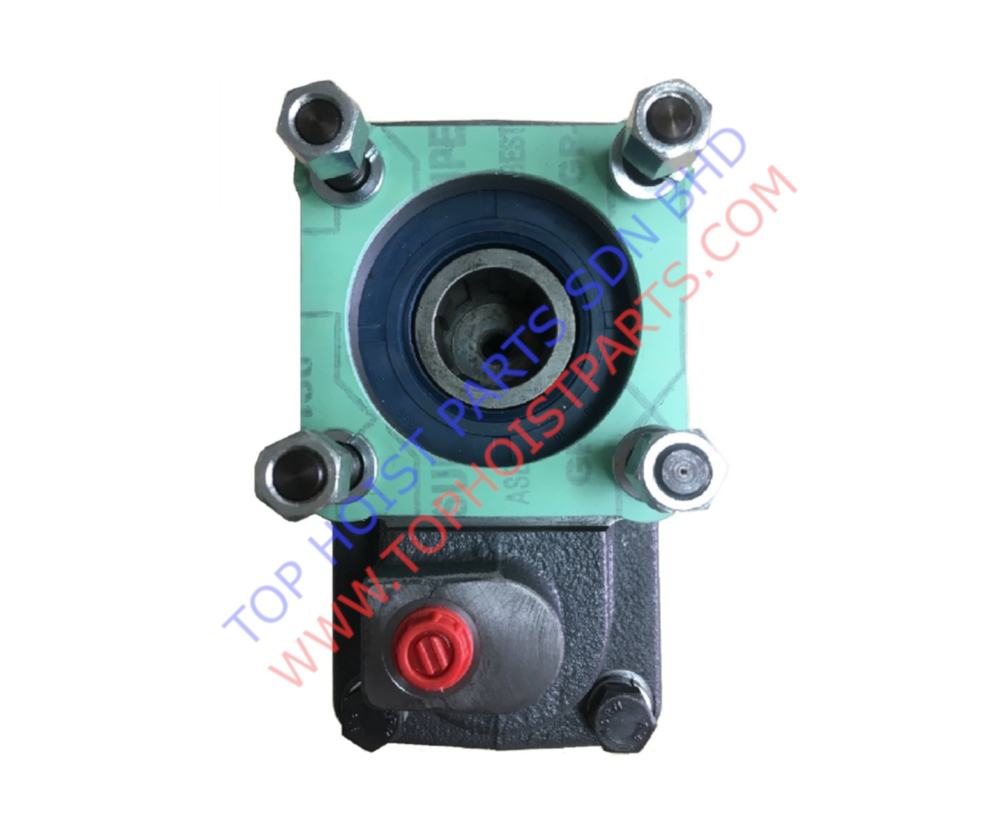

ZF 16S DOUBLE ROTARY GEAR 8 X 12

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 54602
GEARBOX MODEL : ZF16S/130/150/160/190/SR1400/1700/1900
INLET WORKING PRESSURE (BAR) : 7-12 BAR
CONTROL : PNEUMATIC
OUTPUT TORQUE : 29KGM/284NM
POWER @ 1000 RPM : 28.2HP/20.7KW
OUTPUT SPEED @ 1000 RPM : 700
RATIO : 1.19
ROTATION : COUNTER CLOCKWISE (LEFT)
2x Image

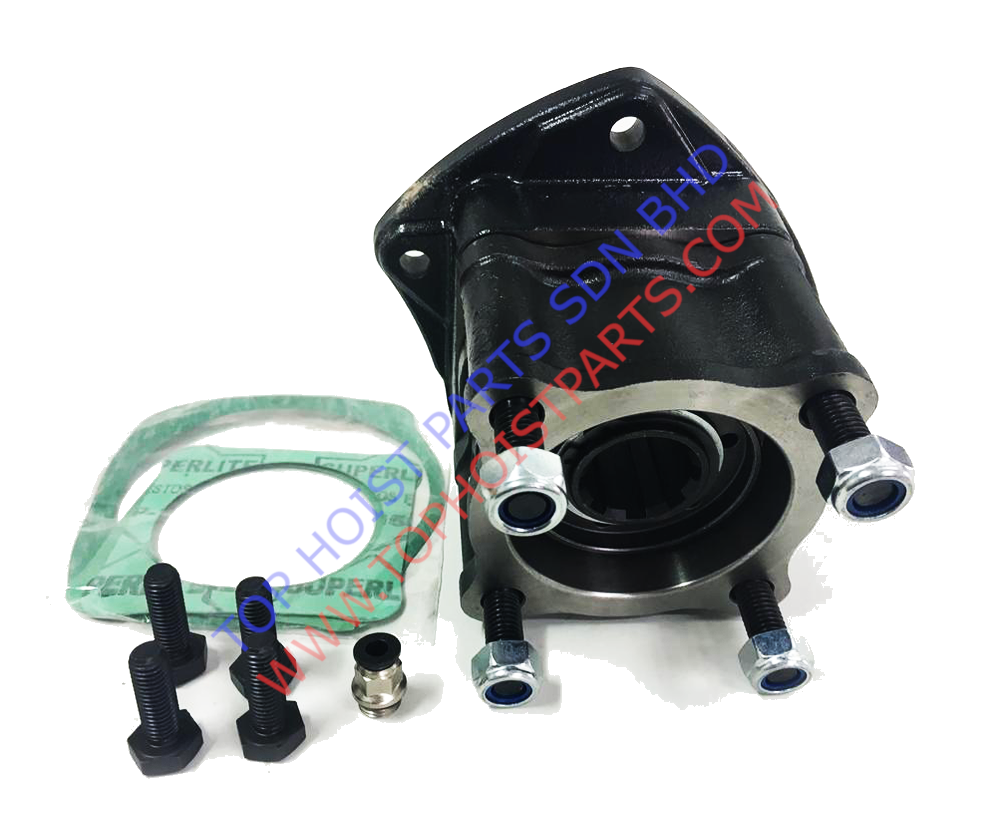

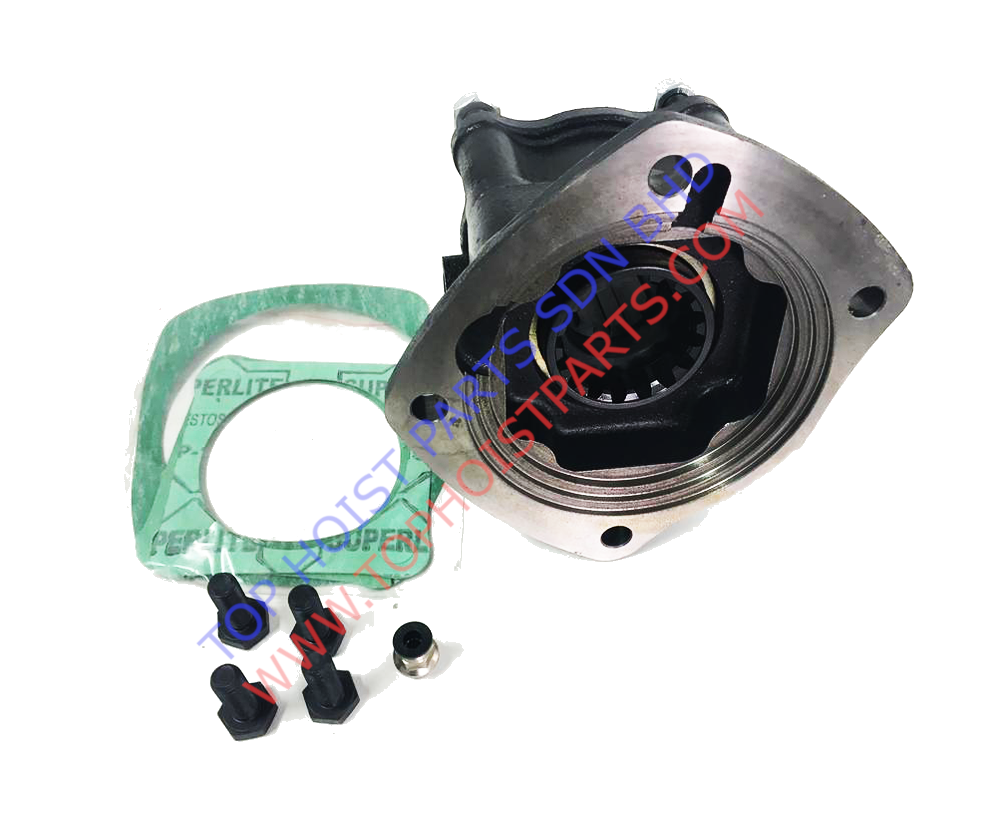

R6 16 X 8

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE :24601
GEARBOX MODEL : SR62-R61-R62-R6/R
CONTROL: PNEUMATIC
OUTPUT TORQUE : 24KGM/235NM
POWER @ 1000 RPM : 28.8KW
ROTATION : CLOCKWISE (RIGHT)
