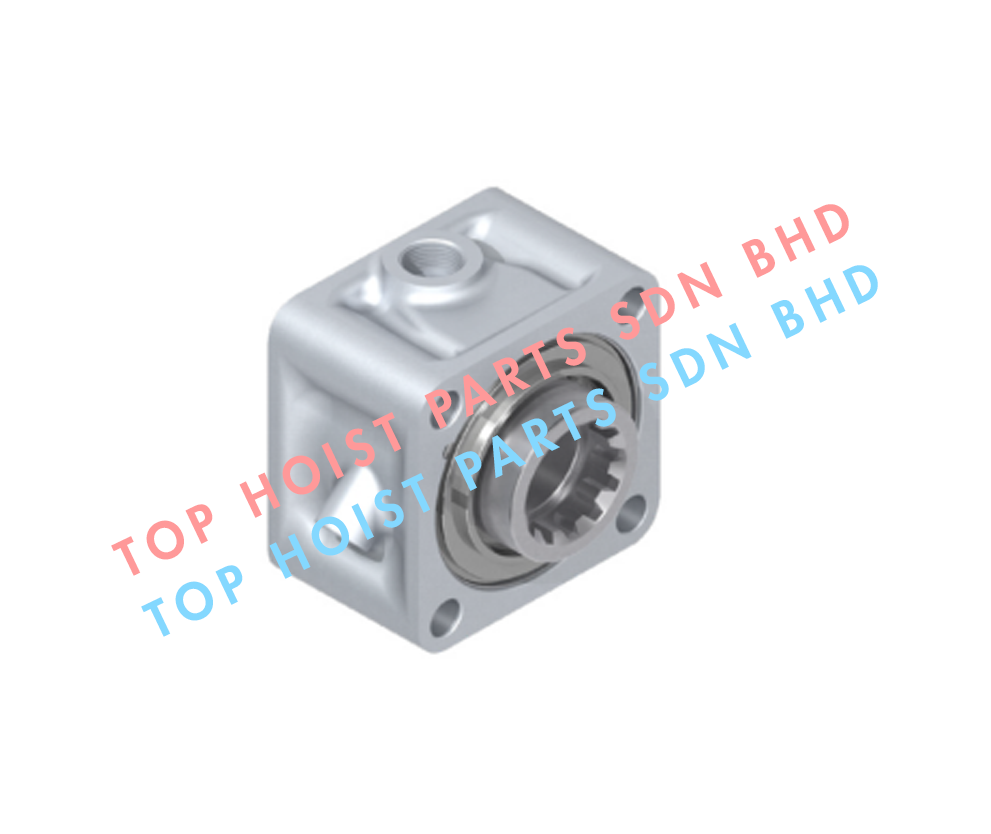

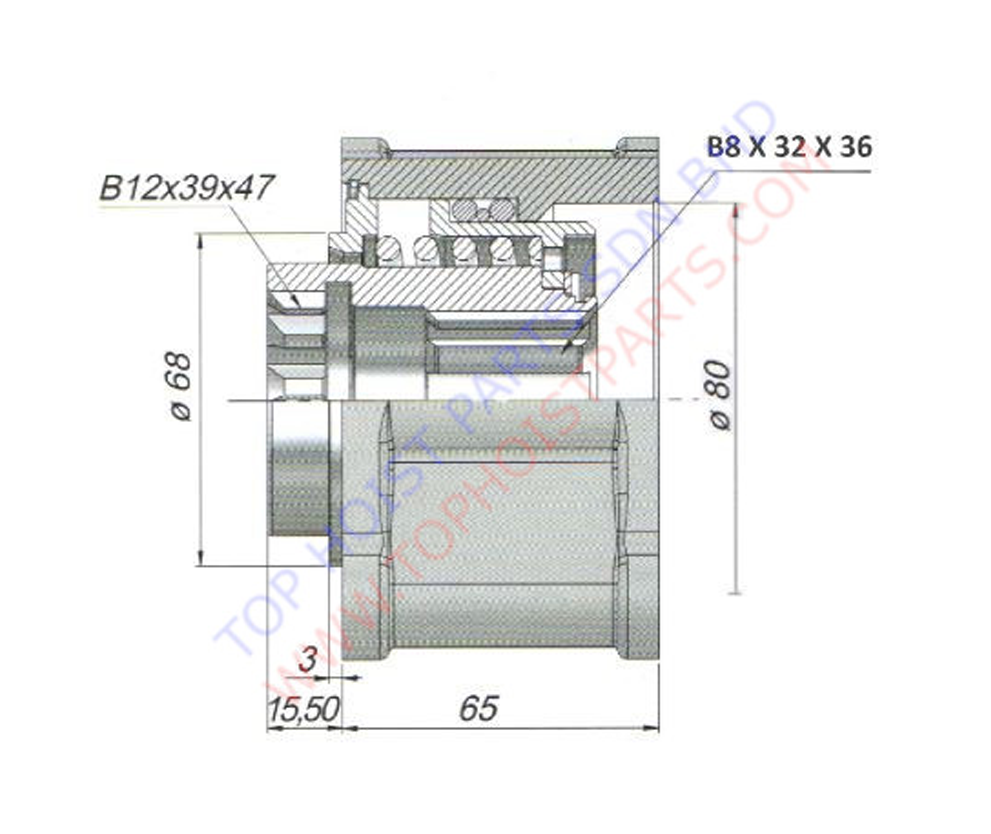

ZF/VOLVO SINGLE ROTARY GEAR (NO SWITCH)

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 24602-1(ALUMINIUM)
GEARBOX MODEL : ZF 9S/16S/VOLVO SR1400/1700/1900
CONTROL : PNEUMATIC
PNEUMATIC OPERATING PRESSURE (BAR) : 7-12
OUTPUT TORQUE : 57KGM/230NM
POWER @ 1000 RPM : 35HP/25.7KW
OUTPUT SPEED @ 1000 RPM : 500
RATIO : 1:1
ROTATION : CLOCKWISE (RIGHT)
3x Image

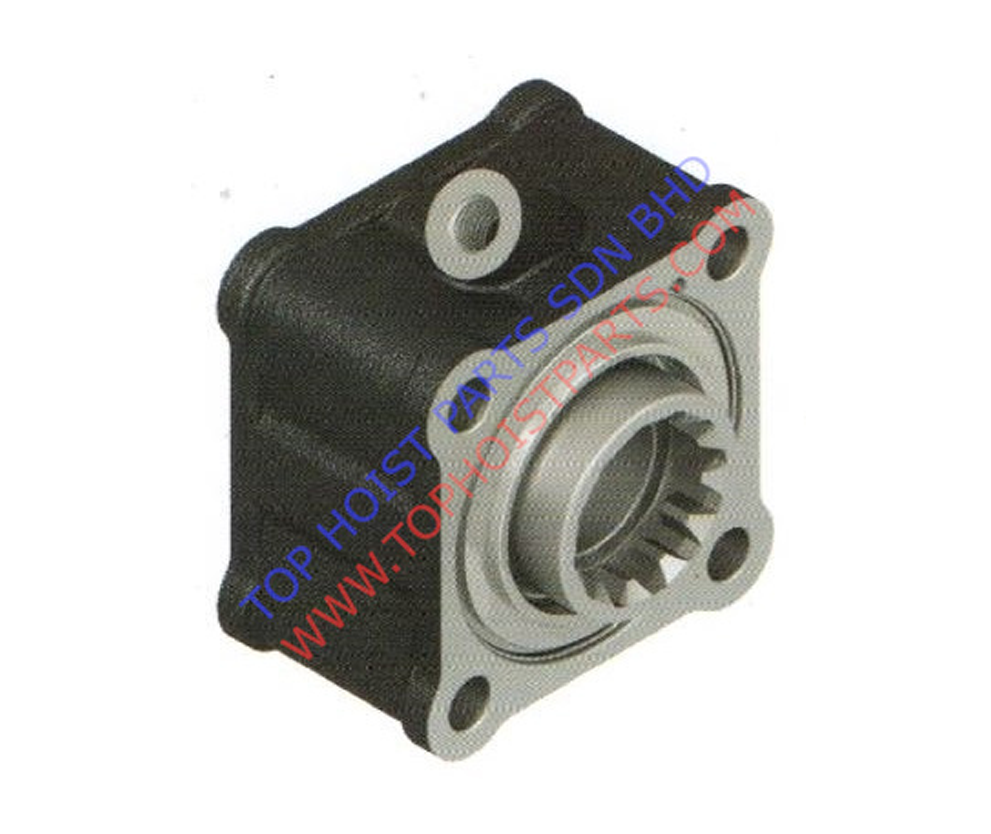

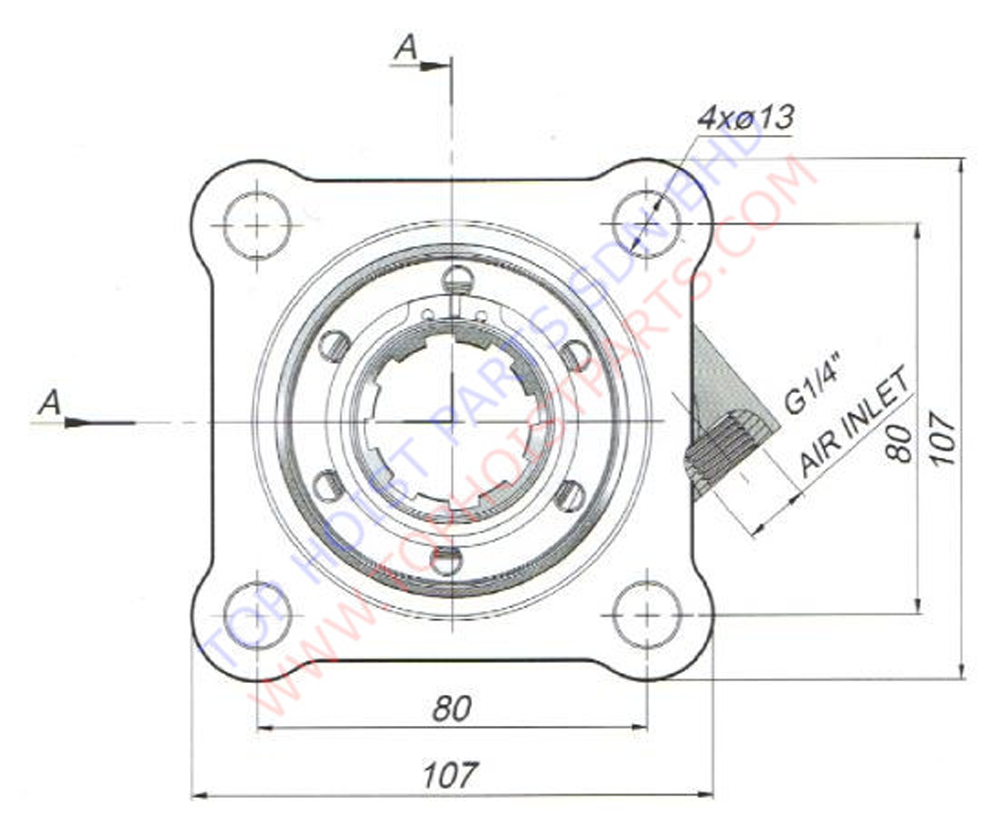

ZF/VOLVO SINGLE ROTARY GEAR (NO SWITCH)

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 24602-1v
GEARBOX MODE : ZF 9S/16S/VOLVO SR1400/1700/1900
CONTROL : PNEUMATIC
PNEUMATIC OPERATING PRESSURE (BAR) : 7-12
OUTPUT TORQUE : 57KGM/230NM
POWER @ 1000 RPM : 35HP/25.7KW
OUTPUT SPEED @ 1000 RPM : 500
RATIO : 1:1
ROTATION : CLOCKWISE (RIGHT)
3x Image

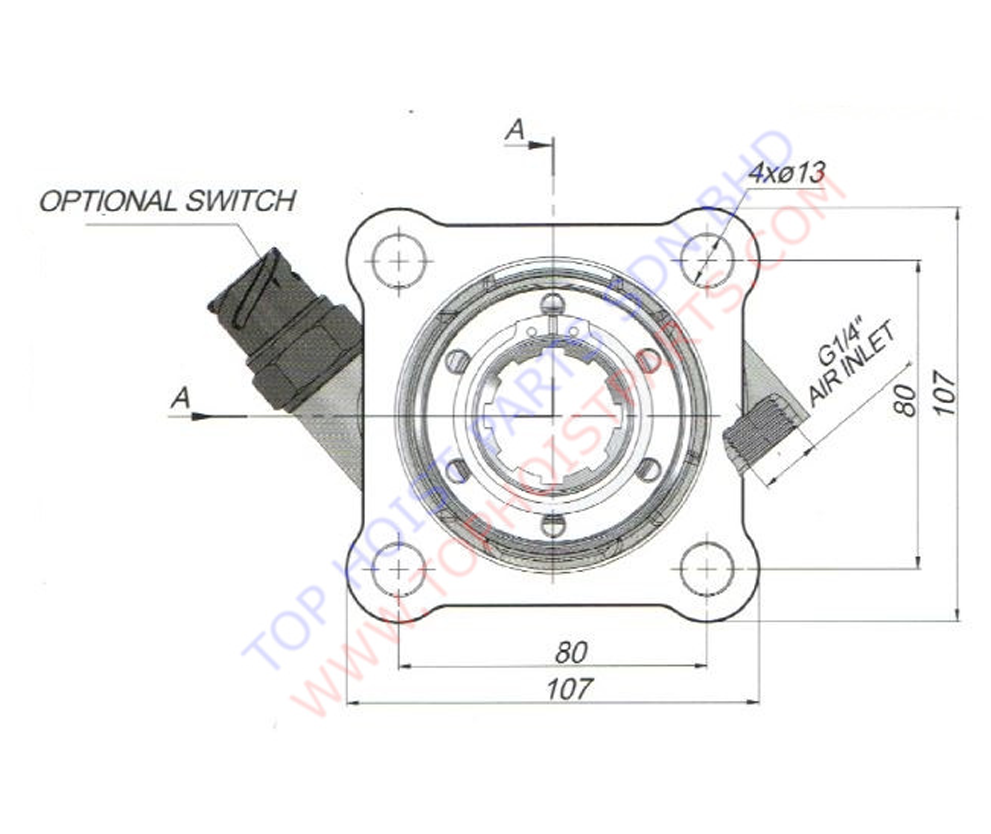

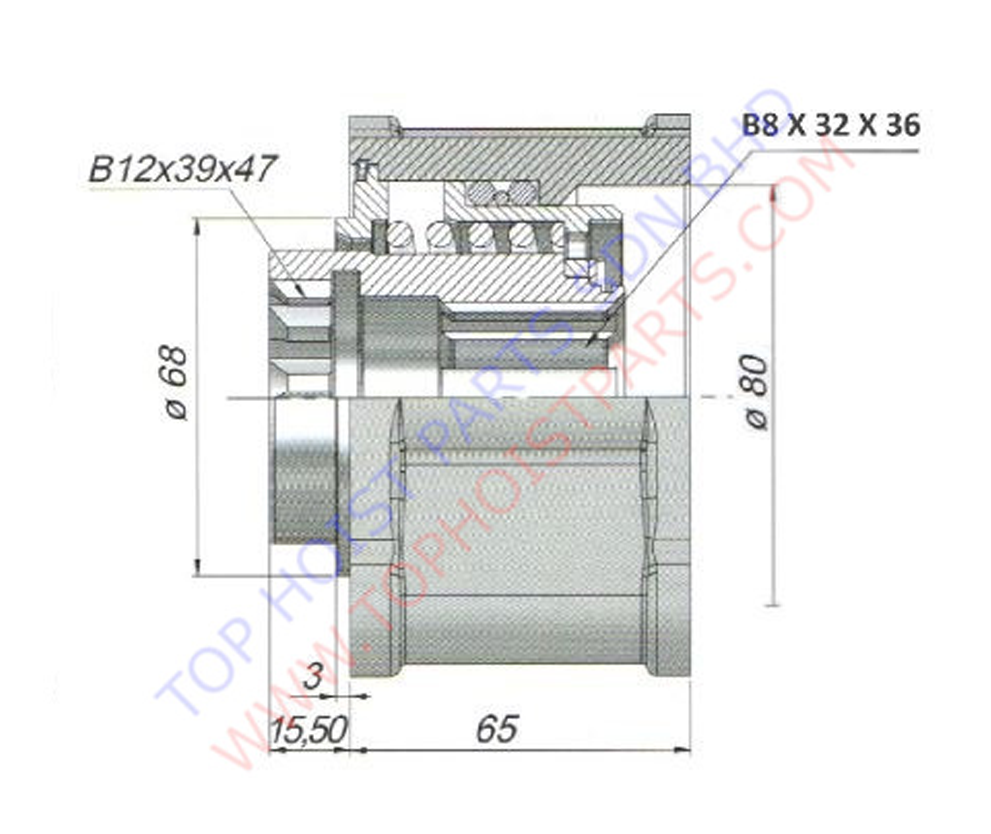

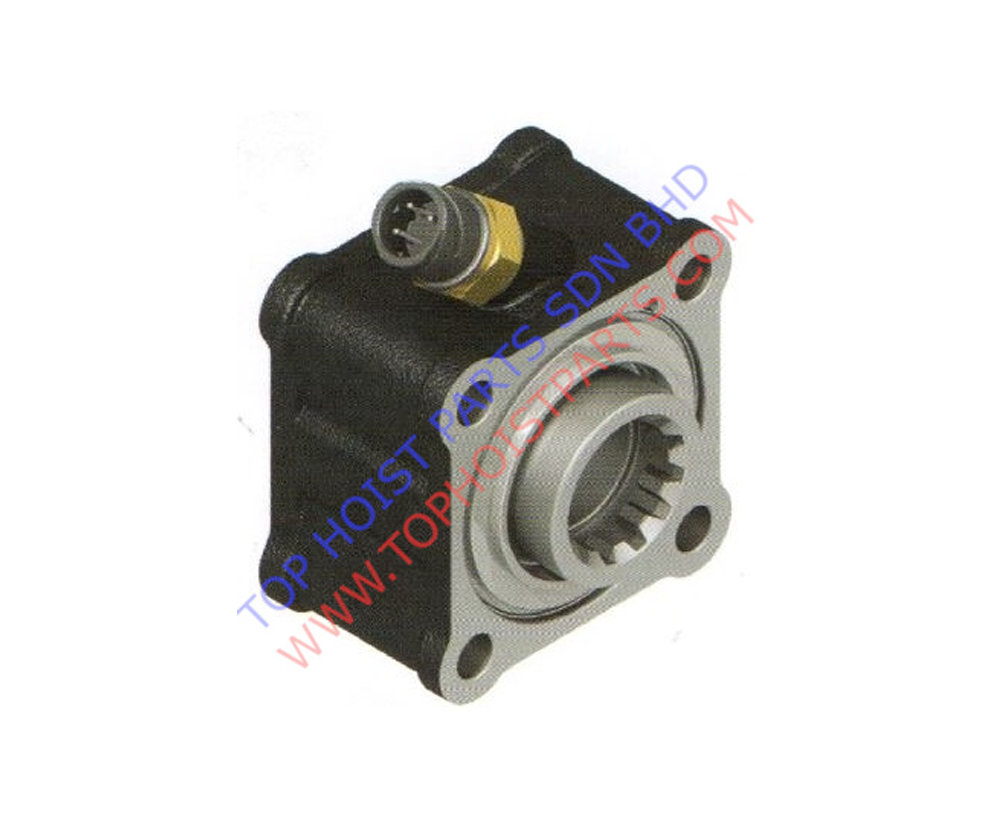

ZF/VOLVO SINGLE ROTARY GEAR (SWITCH)

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 24602-S
GEARBOX MODEL : ZF 9S/16S/VOLVO SR1400/1700/1900
CONTROL : PNEUMATIC
PNEUMATIC OPERATING PRESSURE (BAR) : 7-12
OUTPUT TORQUE : 57KGM/230NM
POWER @ 1000 RPM : 35HP/25.7KW
OUTPUT SPEED @ 1000 RPM : 500
RATIO: 1:1
ROTATION : CLOCKWISE (RIGHT)
2x Image

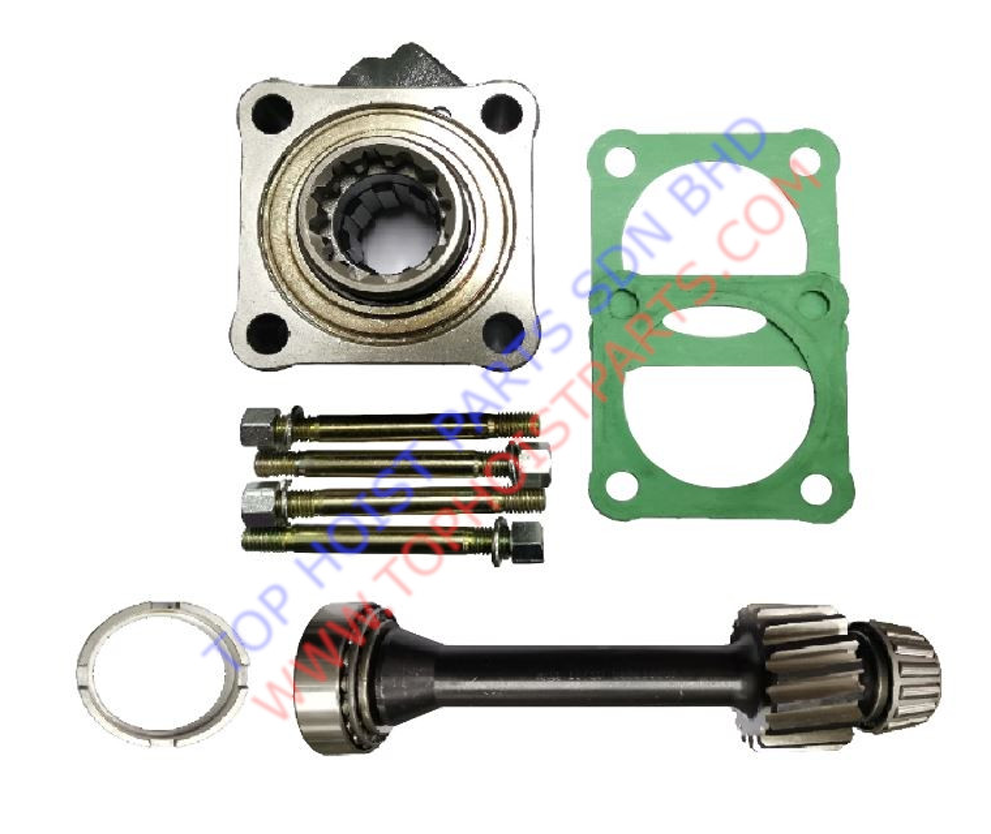

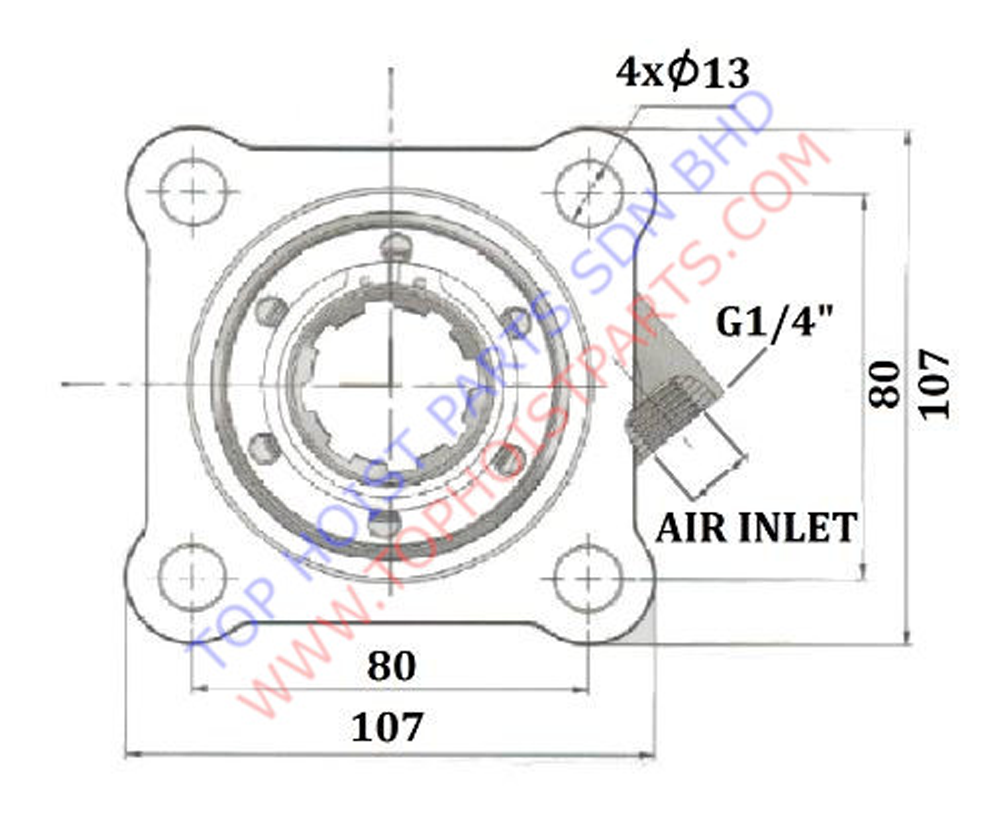

ZF 9S/16S - 109 SINGLE ROTARY GEAR WITH CARDAN SHAFT 288MM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 54604
GEARBOX MODEL : ZF ECOMID 9S109/16S109
CONTROL : PNEUMATIC
TORQUE : 48.9KGM/474.7NM
POWER @ 1000 RPM : 25.7KW
SPEED @ 1000 RPM : 450
L(MM) : 288
Z(TEETH) : 17
ROTATION : CLOCKWISE (RIGHT)
2x Image

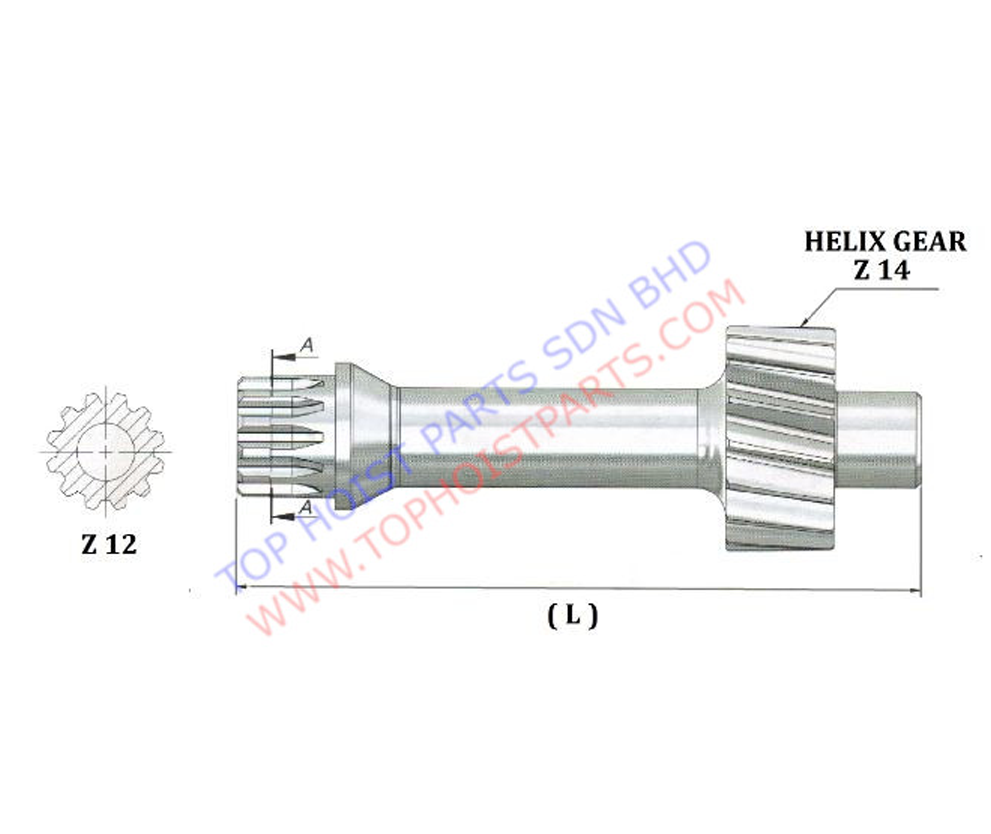

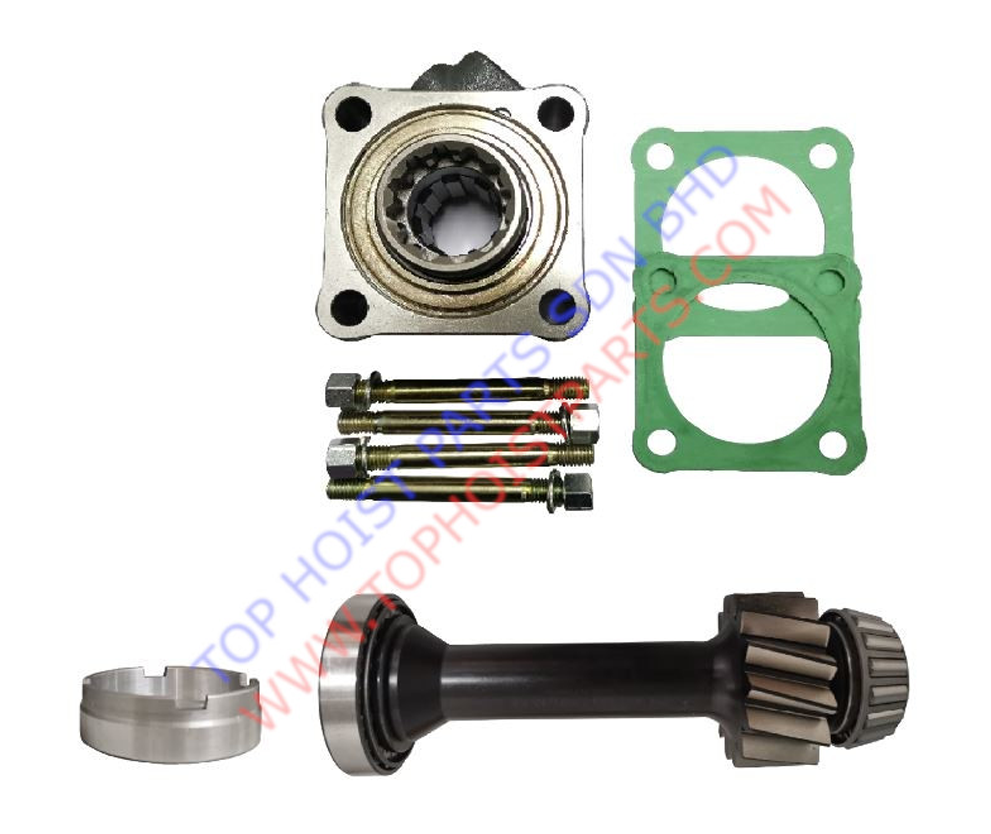

ZF 9S 1110 SINGLE ROTARY GEAR WITH CARDAN SHAFT 287MM

COUNTRY OF ORIGIN : TURKEY
PRODUCT CODE : 54605
GEARBOX MODEL : ZF ECOMID 9S1110
CONTROL : PNEUMATIC
OUTPUT TORQUE : 48KGM/480NM
POWER @ 1000 RPM : 50KW
OUTPUT SPEED @ 1000 RPM : 450
ROTATION : CLOCKWISE (RIGHT)
L(MM) : 287
